Cortex SM26 Multi Gym User Manual page 23

72
75
75
69
72
75
75
69

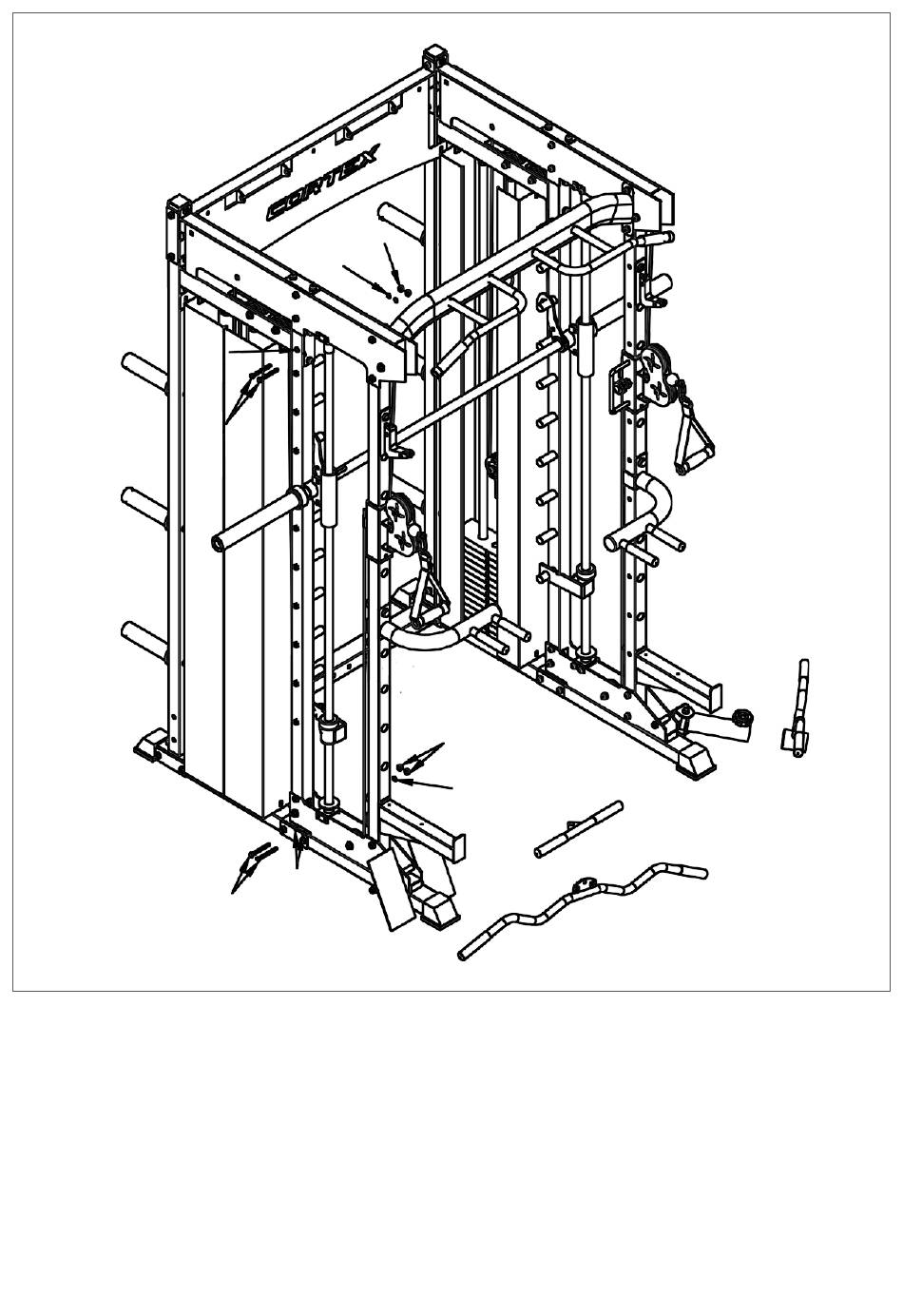

STEP 16
1. Secure the installed Olympic rod onto the side covers (31#) and (32#) as shown, using bolt (69#),
gasket (75#), and nut (72#).
Please ensure to tighten all bolt and nuts with a wrench.
Check that all pulleys and wire ropes are secured properly. If cables are not sliding smoothly
then the bolts on the pulley may be over tighten, loosen it slightly. You can also lubricate the
pulley.
ASSEMBLY INSTRUCTIONS | 23
