IV. ASSEMBLY INSTRUCTIONS
ATTENTION:
1. The gasket shall be placed at both ends of the bolts (against the bolt head and nuts), unless otherwise stated.
2. Preliminary assembly is hand tightening of all bolts and nuts and hand tightening with the wrench for complete assembly.
3. Some spare parts have been pre-assembled by the factory.
4. It is strongly recommended this machine to be assembled by two or more people to avoid possible injury
74
70
4
1
8

| ASSEMBLY INSTRUCTIONS

M10 x 70mm 4pcs
M10 x 95mm 4pcs
5
85
2
83
85
85
83

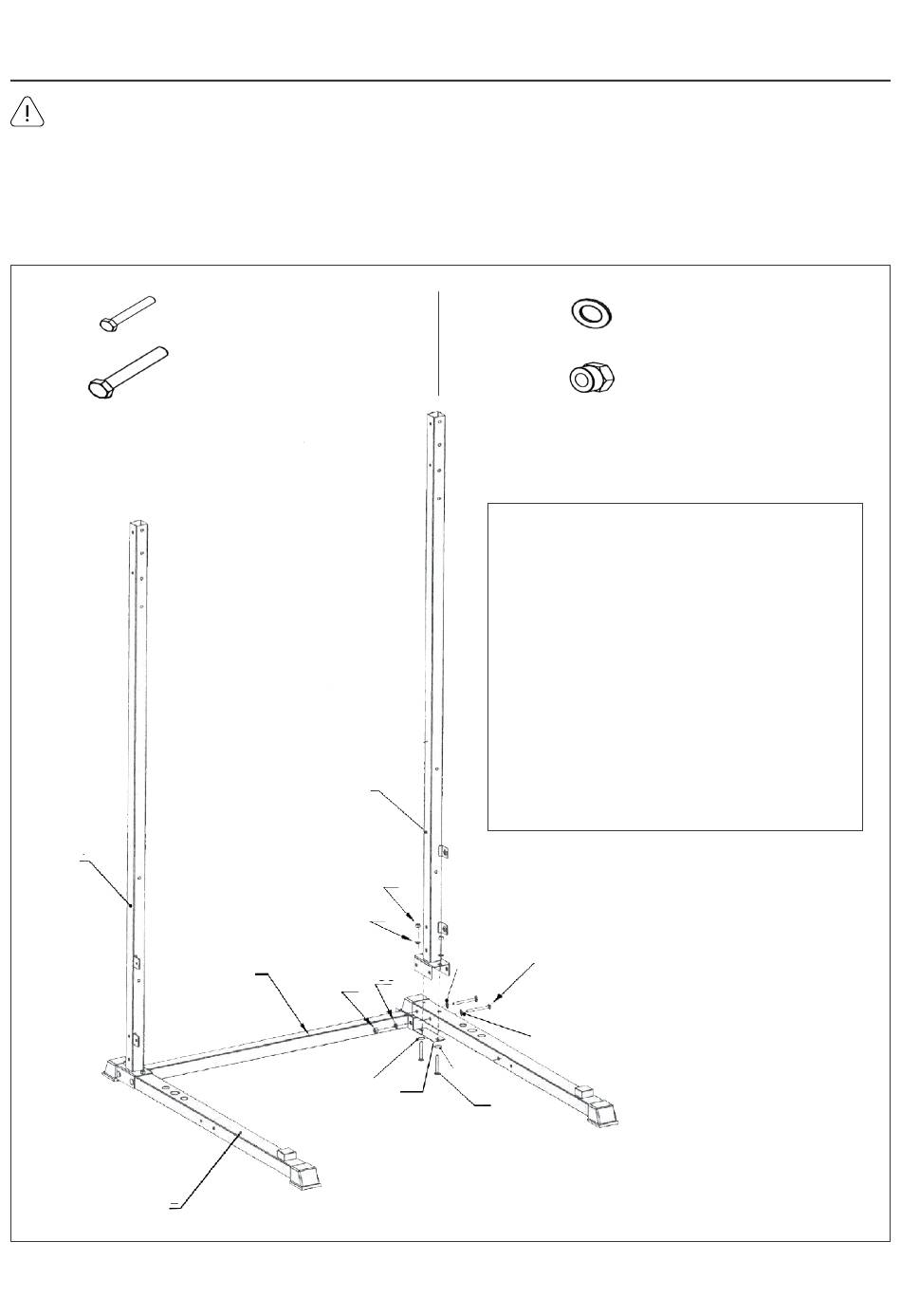

STEP 1
1. Install part 5 to part 1 and 2 using:
- 4x Part 83
- 8x Part 85
- 1x Part 23
- 2x Part 74
- 2x Part 70
2. Repeat same steps for connecting
part 4 to parts 1 and 2.
83
70
85
85
85
85
23
74
Φ 10
16pcs
M10 8pcs
