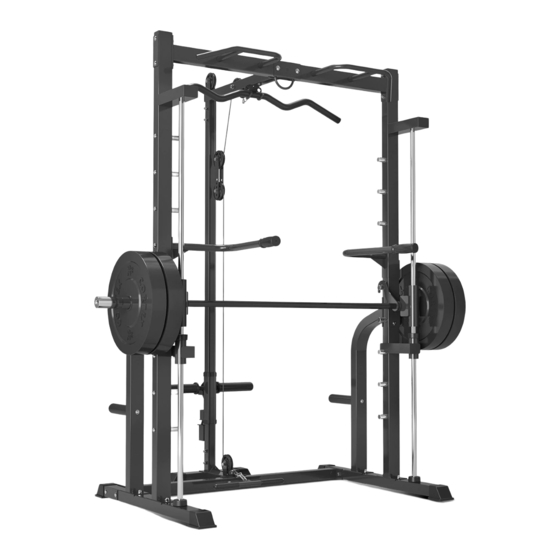

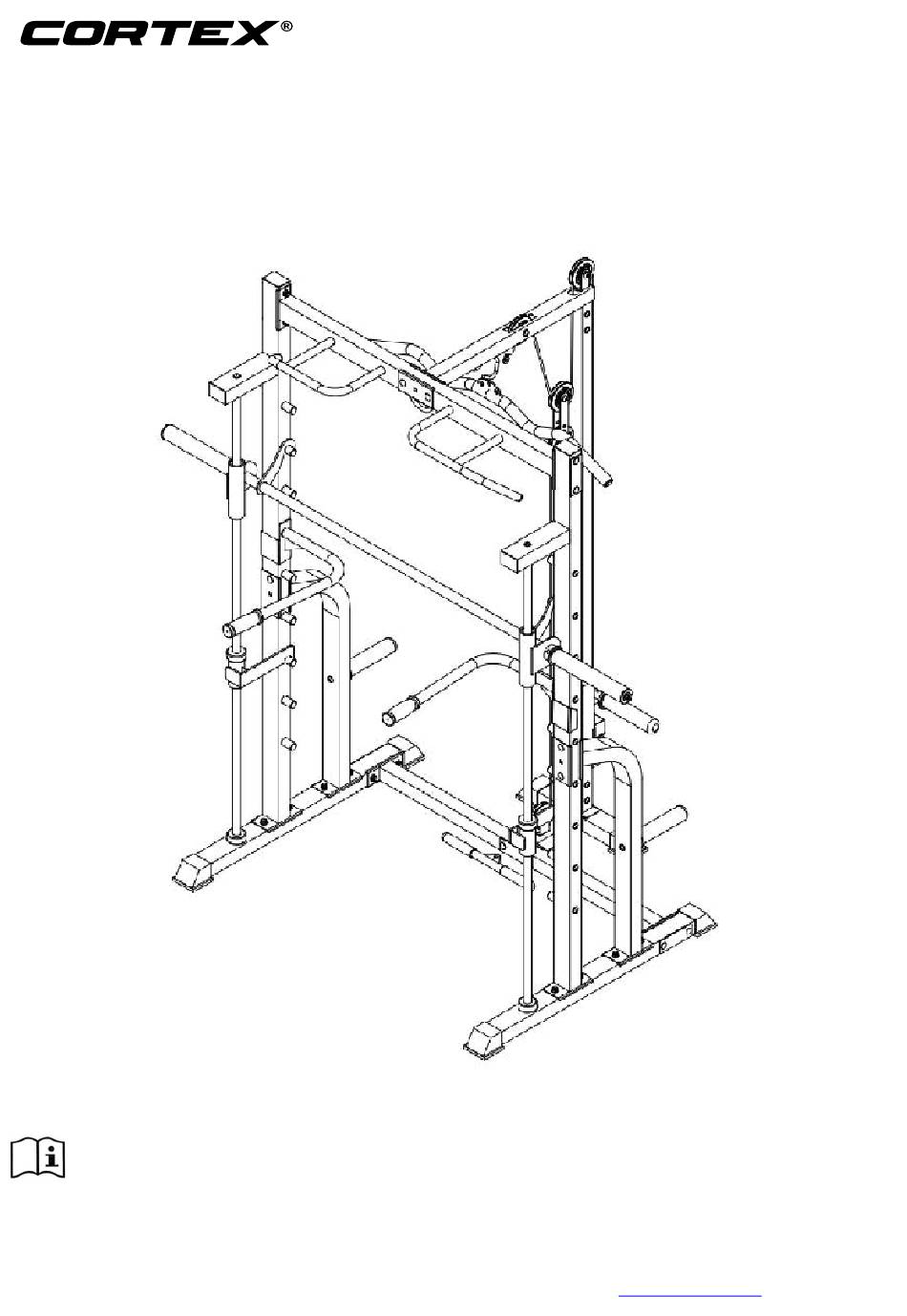

SM-10 SMITH MACHINE OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at...
1. IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this machine. • Install the product on a flat level surface • Place your unit on a solid, level surface when in use • Never allow children on or near the machine. Keep hands away from all moving parts.
2. CARE INSTRUCTIONS • Lubricate moving joints with silicon spray after periods of usage. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects. • The machine can be kept clean by wiping it down using dry cloth. •...
4. ASSEMBLY INSTRUCTIONS NOTE: 1. Gaskets shall be placed at both ends of the bolt (against bolt head and nut), as otherwise stated. 2. The initial assembly is to tighten all bolts and nuts by hand, and to tighten them with wrenches when fully assembled.
Page 8
STEP 2 1. According to the diagram, the left and right insurance (#5), (#6) and the shock absorber (#26) are installed on the Smith guide rod (#3), respectively. 2. Install the slide sleeve (#7) on the horizontal push hook (#4) and install the installed horizontal push hook (#4) on the Smith guide rod (#3).
Page 9
STEP 3 1. Install the solid short hanging rod (#23) on the left and right column (#10), (#11) and fasten it with bolt (#28) and flat gasket (#37). 2. Connect the left and right columns (#10), (#11) to the Smith guide rod (#3) and the floor (#1) according to the diagram and fasten them with bolts (# 28) flat gaskets (#37).
Page 10
STEP 4 1. Install the left and right handle (#13), (#14) into the upper connection (#12), fasten it with bolt (#28) and flat gasket (#37). 2. Install the upper connection (#12) into the left and right columns (#10) (#11) and fix it with a flat connecting plate (#22), bolt (#30), flat gasket (#37) and nut (#39).
Page 11
STEP 5 1. Connect the rear floor (#19) with the rear connection (#2) and fix it with bolt (#29), flat connecting plate (#22), flat gasket (#37) and nut (#39). 2. Install the rear pillar (#18) to the rear patch (#19) as shown and secure with the bolt (#31), (#37) and nut (#39).
Page 12
STEP 6 1. According to the diagram, the upper beam is mounted on the rear column (# 18) and the upper connection (# 12), the bolt (# 31), flat gasket (# 37) and nut (# 39) are fixed for the connection with the rear column (# 18).
Page 13
STEP 7 1. Install the Wire rope according to line diagram drawing. 2. After the whole instrument is assembled, check that the wire rope is tightened. If the wire rope is loose, adjust the pulley installation hole position through the pulley regulating plate (# 25). 3.
5. WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
