TVLogic LVM-074W Service Manual page 8

7" multi format broadcast monitor
Hide thumbs Also See for LVM-074W:

Advertisement

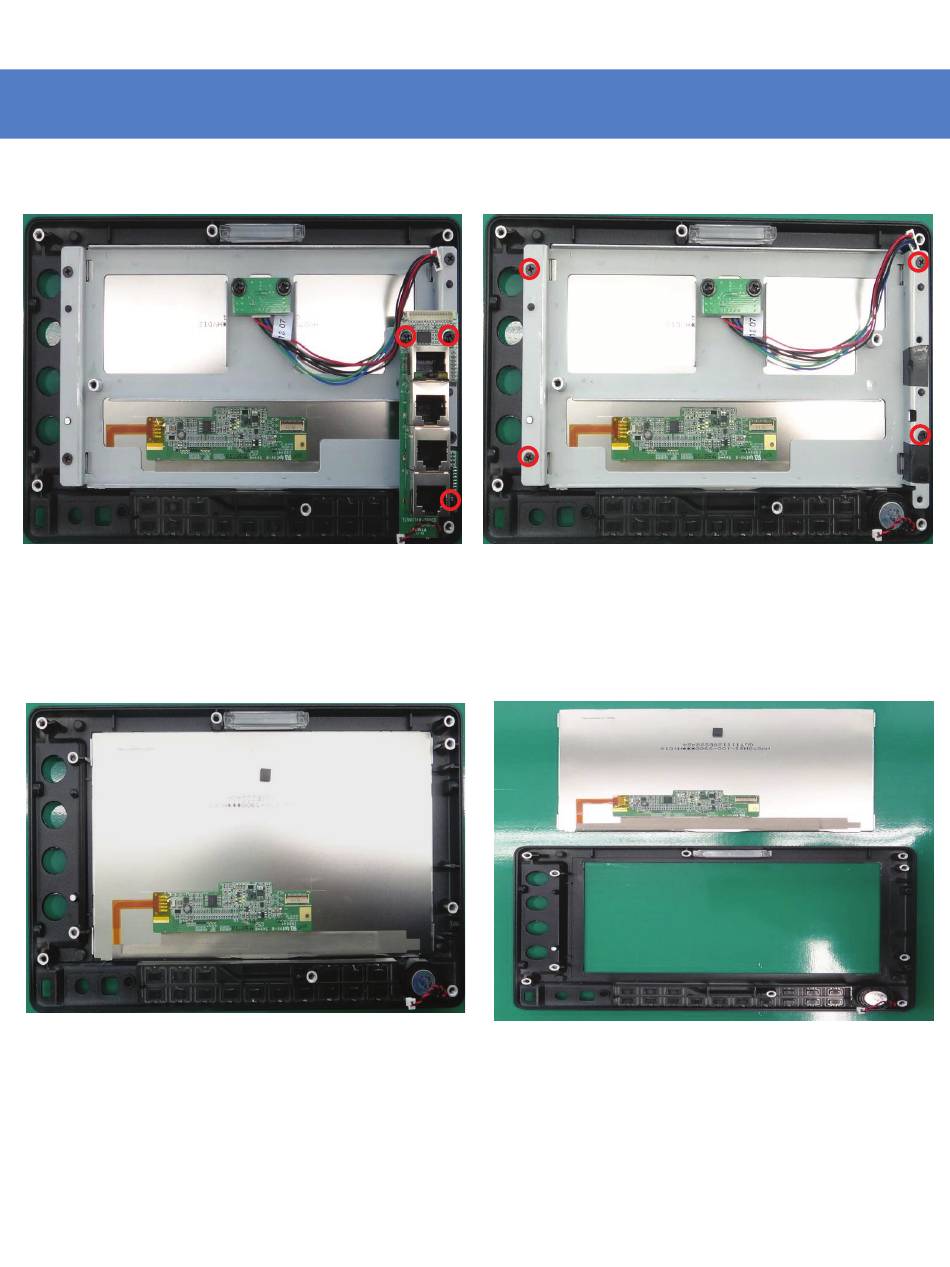

5.2 DISASSEMBLY PROCEDURE
6) Remove all the screws on the LCD
5) Remove all screws and separate Remote PCB.
Brackets.
8) Separated Picture.
7) Separate the panel and the Front
8
