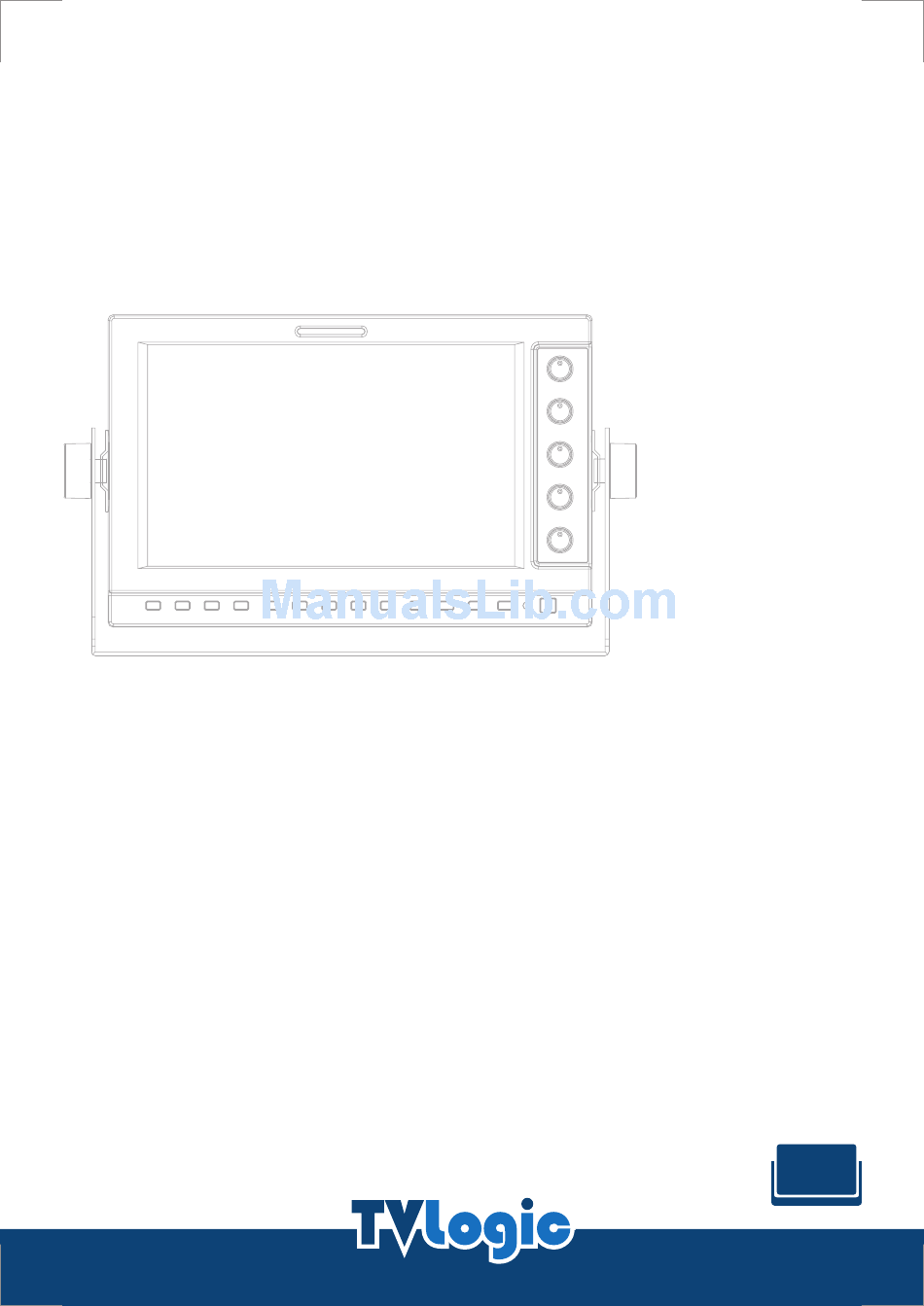

Multi Format

LCD MONITOR

Operation Manual
7" Multi Format LCD Monitor
L VM-071W
MULTI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVM-071W and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic LVM-071W

Summary of Contents for TVLogic LVM-071W

  • Page 1: Lcd Monitor

    Multi Format LCD MONITOR Operation Manual 7” Multi Format LCD Monitor L VM-071W MULTI...

  • Page 3: Table Of Contents

    Contents CAUTION ..................FEATURES ..................NAME & FUNCTION OF EACH PART ............MENU CONTENTS ................OTHER FUNCTIONS ................DVI ANALOG INPUT SIGNAL FORMAT ............. DVI DIGITAL INPUT SIGNAL FORMAT ............PRODUCT SPECIFICATION ..............PRODUCT LINEUP ................OPTIONAL ACCESSORIES ..............FCC (Federal Communications Commission) This equipment has been tested and found to comply with the limits for class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Caution

    Caution L VM-071W ALWAYS USE SET VOLTAGE. DC 12V If liquid is spilled on or impacts this product, please disconnect the product immediately and seek professional help before continued use. Keep unit disconnected during extended periods of disuse. Keep unit in a well-ventilated place to prevent overheating. Do not install the product near any heat-generating equipment.

  • Page 5: Features

    Features L VM-071W LVM-071W HAS THE FOLLOWING FEATURES: Compatible with varied SDI signals - The product is compatible with varied SDI Signals - 480i,576i,720p,1035i,1080i,1080p,1080psf Compatible with varied analog signals - The product is compatible with varied analog signals - Composite, S-Video, Component, RGB...

  • Page 6: Name & Function Of Each Part

    Name & Function of Each Part L VM-071W FRONT TALLY APERTURE BRIGHT CHROMA CONTRAST VOLUME ANALOG POWER ENTER UNDERSCAN DOWN ASPECT MENU MARKER/HVDELAY WAVEFORM/VECTOR SCOPE BLUE ONLY/ MONO PHASE [ANALOG] button/lamp - Used to select desired Analog Input. (CVB1/2/3, S-Video, Component, RGB) [DVI] button/lamp - Used to select desired DVI Input.
  • Page 7 Name & Function of Each Part L VM-071W [BLUE ONLY]/[MONO] button/lamp - You may remove R(red) and G(green) from the input signal and play the screen only with B(blue) signal. Button may be pressed twice to change the screen to MONO mode. (This mode uses only Luminance value.) [PHASE] button/lamp - Used to change the Phase values.
  • Page 8 Name & Function of Each Part L VM-071W REAR DVI DIGITAL/ DVI ANALOG SDI-IN REMOTE SDI-OUT CVBS1/B/Pb FACTORY PGM CVBS2/G/Y/S-Y CVBS3/R/Pr/S-C DC IN AUDIO IN AUDIO OUT REMOTE (RJ-45) - Connection for remote control of monitor. DVI DIGITAL/DVI ANALOG (DVI-I) - Input connection for DVI-I.

  • Page 9: Menu Contents

    Menu Contents L VM-071W Below is the description of each function of the menu. [1] PICTURE PART Brightness This Item controls the degree of brightness. #Brightness can be adjusted by using the [BRIGHT] control knob on the front of the monitor. CONTRAST This item controls the contrast ratio.
  • Page 10 Menu Contents L VM-071W [2] PICTURE PART - DVI ANALOG ONLY Brightness This Item controls the degree of brightness. #Brightness can be adjusted by using the [BRIGHT] control knob on the front of the monitor. CONTRAST This item controls the contrast ratio. #Contrast can be adjusted by using the [CONTRAST] control knob on the front of the monitor.
  • Page 11 Menu Contents L VM-071W [3] COLOR PART Color Temp This item controls Color Temperature with presets of 3200K, 5600K, 6500K, 9300K, and User1, User2, User3 mode. User On User Mode, the user may select and control R, G, & B GAIN, BIAS values by using the [UP]/[DOWN]/[ENTER] buttons.
  • Page 12 Menu Contents L VM-071W [4] MARKER PART Marker This selects the marker type when the MARKER is displayed on the screen. Compatible MARKER types are as follows: MODE MARKER CLASS 16:9, 4:3, 4:3 ON AIR, 15:9,14:9, SD 16:9 13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3 SD 4:3 16:9 # MARKER may only be activated by pressing the MARKER button on the front of the monitor.
  • Page 13 Menu Contents L VM-071W [5] REMOTE PART REMOTE (RJ-45) 1: Pin1 2: Pin2 3: Pin3 4: Pin4 5: Pin5 6: Pin6 7: Pin7 8: GND Pin1 ~ Pin6 The user may connect RJ-45 jack to the remote terminal on the rear of the unit and designate a function for each pin.
  • Page 14 Menu Contents L VM-071W [6] SYSTEM PART MARKER System Default User can use the System Default menu to initialize the values of the monitor excluding controlled values with the knobs On the front of the monitor. BACK LIGHT This item controls the LED backlight setting. The value should be within range between MIN(0) and MAX(15).

  • Page 15: Other Functions

    #Input resolution displays on the bottom of the OSD screen. 3) SDI INPUT MENU LVM-071W Series unit is capable of processing single SDI Input signal. Press [SDI] button on the front of the monitor to select the SDI input.
  • Page 16 CENTER After two seconds LVM-071W monitor’s Pixel to Pixel mode displays input signal without scaling. Press [UNDERSCAN] button on the front of the monitor to activate the[Pixel To Pixel] mode. In the [Pixel To Pixel] mode, use the [UP]/[DOWN] buttons to toggle between 1:1 scan sections.
  • Page 17 Other Functions L VM-071W Positions in HD Signal 1080i/1080p mode [UP] [UP] LVM-171WG [DOWN] [DOWN] Center [UP] [UP] [UP] [DOWN] [DOWN] [DOWN] Right Top Right Mid Right Bottom [UP] [UP] [UP] [DOWN] [DOWN] [DOWN] Mid Bottom Left Bottom Left Mid Position in HD Signal 720p mode [UP] [UP]...
  • Page 18 Other Functions L VM-071W [5] WAVEFORM WAVEFORM POSITION Waveform OFF Waveform ON #This function is only available with SDI Input. [6] VECTOR SCOPE VECTOR SCOPE POSITION Vector Scope OFF Vector Scope ON #This function is only available with SDI Input.

  • Page 19: Dvi Analog Input Signal Format

    DVI analog input signal format L VM-071W DVI ANALOG Resolution DotClock Sync (Source) [MHz] (kHz) (Hz) (H/V) 640 x 350 70Hz (IBM) 25.175 31.469 70.086 640 x 480 60Hz (IBM) 25.175 31.469 59.940 720 x 400 70Hz (IBM) 28.322 31.469 70.087 640 x 480 67Hz (MAC) 30.240...

  • Page 20: Dvi Digital Input Signal Format

    DVI digital input signal format L VM-071W DVI DIGITAL Resolution DotClock Sync (Source) [MHz] (kHz) (Hz) (H/V) Pixel To Pixel 640 x 350 70Hz (IBM) 25.175 31.469 70.086 640 x 480 60Hz (IBM) 25.175 31.469 59.940 720 x 400 70Hz (IBM) 28.322 31.469 70.087...

  • Page 21: Product Specification

    Product Speci cation L VM-071W 1 x DVI-I DVI IN / VGA IN 3 x BNC Analog Input Input 1 x BNC SDI 1 Channel Input Output 1 x BNC SDI Channel ( Active Through Out ) Composite / S-Video / Component / RGB Analog 1.485Gbps HD-SDI...

  • Page 22: Product Lineup

    FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.co.kr Developed by #914 Namsung Plaza(Ace Techno Tower 9), 345-30 Gasan-dong, Geumcheon-gu, Seoul, 153-782, KOREA Tel : +82-2-2026-1333, Fax : +82-2-2026-1339, Email: support@tvlogic.co.kr Digital Broadcasting System...
