10.4 PROGRAM UPDATE WITH ETHERNET BOARD
4) How to Upgrade ETHERNET BOARD
- Connect the cable with the serial port of the PC and the RS232 port of monitor.
The PC must have the RS232 port and can not use the USB to RS232 converter.
See Picture 7 for the cable connection.
- Select COM PORT.
- Select "14.7456MHz" for TARGET CLK.
- Select "2148B" for MCU TYPE.
- OPEN and select the "*.mot" file.
- Press the SEND button.

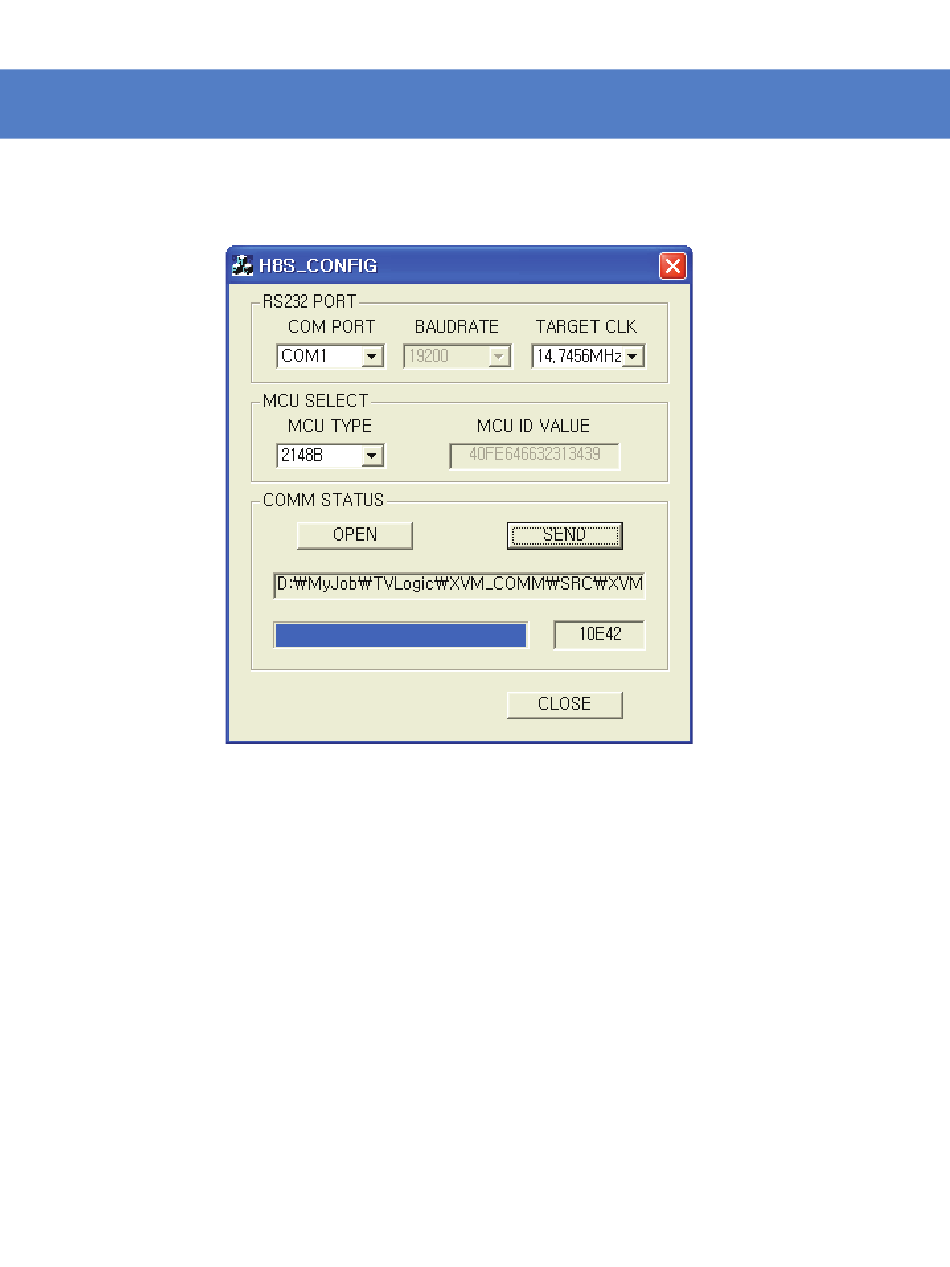

Picture 6 :
ETHERNET BOARD Upgrade SW
16
