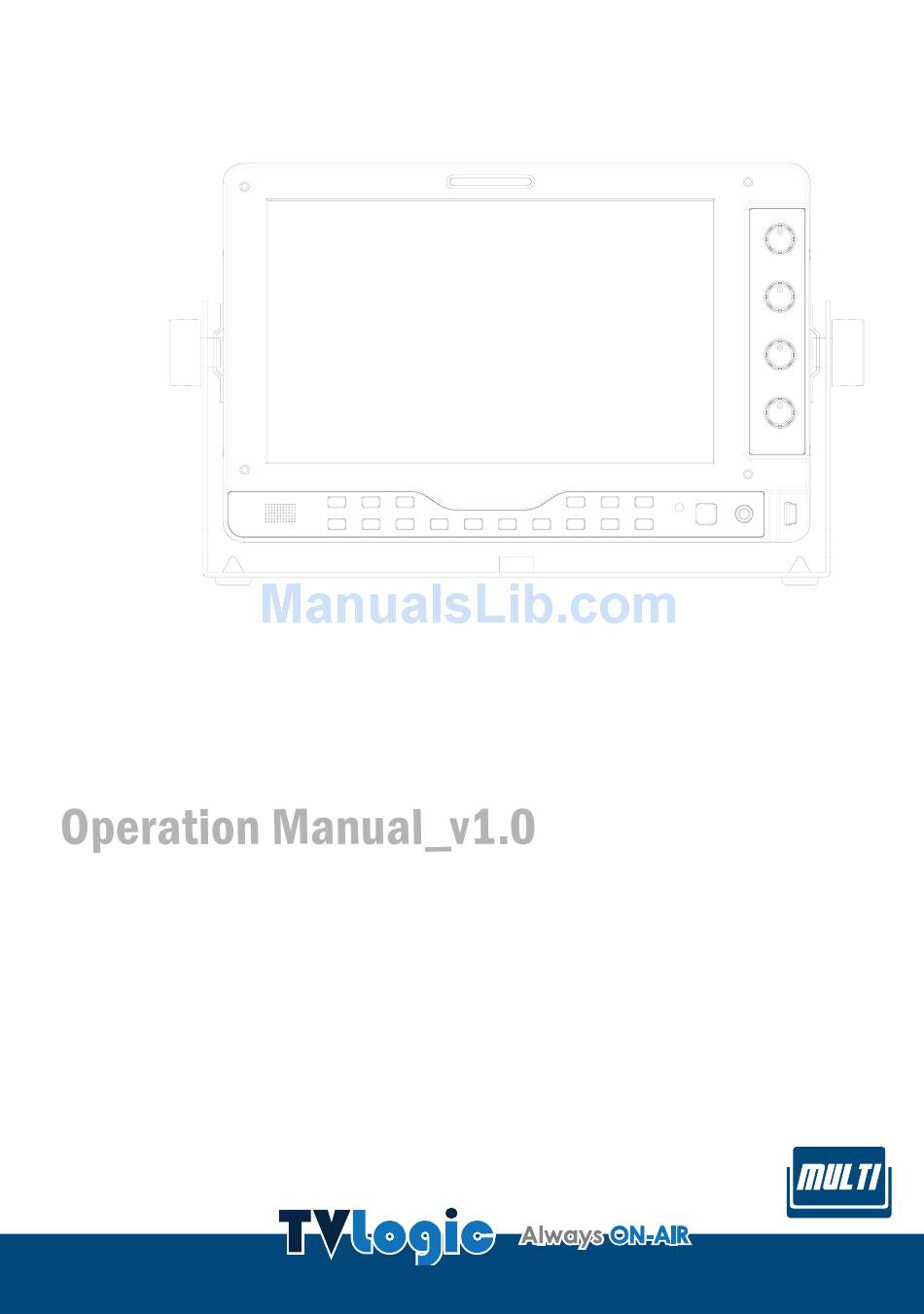

  • Page 1: Lcd Monitor

    Multi Format Broadcast LCD Monitor LVM-074W...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] Picture [2] Color [3] Marker [4] GPI/UMD [5] Waveform [6] Audio [7] Display & Set 6. Button Functions 7. Other Functions 9.

  • Page 4: Caution

    1. Caution Always use set voltage. (DC 12V) If any of the following conditions occurs, unplug the power cord from the DC outlet, and request All operating instructions must be read and a qualified service person to perform repairs. understood before the product is operated. a.
  • Page 5 1. Caution When mounting the product on a wall or ceiling, Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart.

  • Page 6: Main Features

    2. Main Features VFM-074W Monitor contains the following features: Compatible with various SDI signals Knob Control - Easy to adjust user configuration using the formats (SD/HD/3G) control knob on the front of the monitor. - This product is compatible with various SDI signals - SD/HD/3G(A/B)-SDI 480i, 576i, 1080i, BLUE ONLY/MONO/Focus Assist/H/V Delay 1080p, 1080psf...

  • Page 7: Controls & Functions

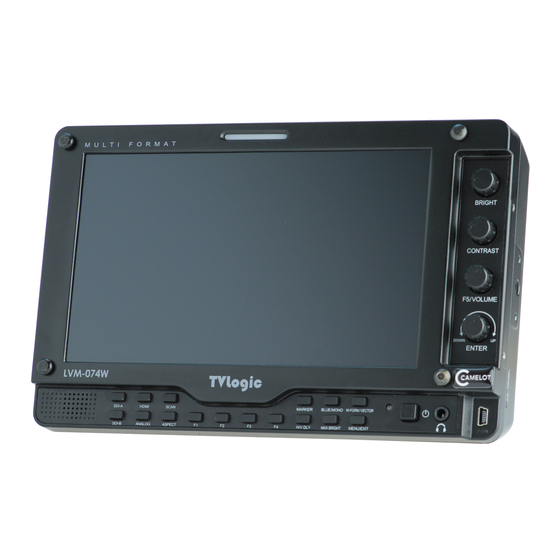

    3. Controls & Functions LVM-074W : FRONT SDI-A HDMI SCAN MARKER BLUE/MONO W-FORM/VECTOR SDI-B ANALOG ASPECT H/V DLY. MAX BRIGHT MENU/EXIT LVM-074W : REAR TVL-LVM-074W(A) RS 422 Multi Format LCD Monitor 7...
  • Page 8 3. Controls & Functions FRONT [HDMI] Button/Lamp [ASPECT] Button/Lamp - Used to select HDMI input. - Used to change the display variout ratio. - Activates in order of [16:9]-[4:3]-[2.35:1]-[1.85:1] [15:9]-[16:10]-[AUTO]-[16:9]. [SDI-A] Button/Lamp - Used to select SDI-A input. [BLUE ONLY]/[MONO] Button/Lamp [SDI-B] Button/Lamp - Activates in the order of [OFF]-[Blue Only]- - Used to select SDI-B input.
  • Page 9 [RS422 IN/OUT] (RJ-45) feature. - Used to control the monitor with protocol - Press the knob to select the main menu and provided by TVLogic or to support TSL sub menus. protocol. Multi Format LCD Monitor 9...
  • Page 10 3. Controls & Functions REAR [REMOTE] (RJ-45) - Provides connection to control equipment for external monitor control. - Features can be changed in the REMOTE(1/2) section of OSD menu. BATTERY IN - Battery Power Input : DC 12V * Rated Power Input : DC 12V (1.5A) DC POWER IN / TALLY (XLR 4P) - DC power input terminal for DC 12V.

  • Page 11: Menu Tree & Adjustment

    2. Move to a desired menu by scrolling the Knob. This Picture is the menu structure for 3. Press the Knob to select a menu and move to LVM-074W select a sub-menu by scrolling the Knob. 4. Press the Knob to select the desired sub menu.

  • Page 12: Menu Operations

    5. Menu Operations [1] Picture [2] Color Brightness Color Temp. - Used to set the brightness(=offset) level from - Controls color temperature and allows instant -100 to 100. access to preset color temperature settings. # Press the Knob to adjust Brightness quickly. - Available color temperatures are 3200K, 5600K, 6500K, 9300K and User 1/2/3.

  • Page 13: Marker

    5. Menu Operations [3] Marker Marker Marker Mat - Used to activate the Marker function. - Used to set the darkeness level outside of the - Available marker types are OFF, 16:9, 4:3, 4:3 MARKER area from OFF(transparent) to 7(Black). ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 &...

  • Page 14: Gpi/Umd

    5. Menu Operations [4] GPI / UMD - The selectable values are as follows : Menu Classifi- Settable Values cation NONE, Analog Channel, HDMI Channel, SDI-A Channel, SDI-B Channel, TALLY R, TALLY G, TALLY Y, UNDER SCAN, 1:1 SCAN, ASPECT, H/V DELAY, BLUE ONLY, 16:9 MARKER, 4:3 MARKER, 4:3 ON AIR MARKER, 15:9 MARKER, GPI 1~8...
  • Page 15 5. Menu Operations [4] GPI / UMD XLR TALLY On/Off Used to set Tally operation according to the input level of TALLY IN terminal which is among the terminals of XLR 4P connector in the rear. XLR TALLY Operating Level - Used to set the input level of Tally operation.

  • Page 16: Waveform

    5. Menu Operations [5] Waveform Select Line Position - Used to select specific Vertical Line for Waveform/Vectorscope. - It is available when LINE Waveform is activated. - To activate this feature, go to [WFM/LevelCHK]- [Waveform/Vector]-[Select Line Position] and use the Knob to select a vertical line. - Control range varies according to the resolution of the input SDI signal.
  • Page 17 5. Menu Operations [5] Waveform C Min - Used to set the minimum chroma(C’) level from 0 to 255. - Pixels with values exceeding the min C’ level will blink in the screen, and displayed as red on the Wavefo rm. Y Picture Blink - Used to set whether or not to blink pixels with values exceeding Y MAX and Y MIN.

  • Page 18: Audio

    5. Menu Operations [6] Audio Level Meter Reference - Display the default audio level meter value, Available options are -18dB and -20dB. - Audio level meter within selected value turns to green and exceeded audio level is displayed in yellow. - Audio level exceeding -4dB is displayed in red.

  • Page 19: Display & Set

    5. Menu Operations [7] Display & Set System Default Firmware Version - Used to initialize OSD values to factory default. - Displays current firmware version. Zoom Back Light - Used to magnify the image up to 90% on a - Used to indicate the backlight level. pixel basis and is displayed on full screen.
  • Page 20 5. Menu Operations [7] Display & Set Closed Caption - This item selects Closed Caption. - Available modes are OFF, 708, 608(LINE21), 608(ANC). * 608 : CEA-608-B, 708 : CEA-708-C standard display only. TimeCode Enable - Used to set the time code among OFF, VITC and LTC. Focus Assist Focus Assist helps the shooters to easily find out the exact area in the picture with good...

  • Page 21: Button Functions

    [1] Analog Button [2] SDI Button * This product is capable of processing all * LVM-074W unit is capable of processing input signals usable in ANALOG mode. dual SDI Input signal. 1. Press [SDI] button on the front of the...
  • Page 22 6. Button Functions [4] Function Key Set Button [5] SCAN Button This product supports various scan modes. Used to make a quick setting of the Press [SCAN] button on the front of the Function Key. monitor to activate different scan modes. 1.

  • Page 23: Other Functions

    7. Other Functions [1] Pixel to Pixel * LVM-074W monitor provide pixel count info using Pixel to Pixel mode. * Select [Scan] mode in the OSD menu to activate the[Pixel To Pixel] mode. * After activation of [Pixel To Pixel] mode, use the Knob to move the position.
  • Page 24 7. Other Functions [2] User Aspect Select [Aspect] mode in the OSD menu to activate the[User Aspect] mode. After activation, press the Knob to get ready for controlling. # To adjust the 16:9 aspect ratio of 1920X1080 Adjust the ratio using the Knob. resolution into 2.35:1 aspect ratio, adjust the width and height as 1024 x 436.
  • Page 25 7. Other Functions [3] Waveform / Vectorscope Waveform Y VectorScope - Displays the Luma(Y’) component of the input - Displays the color components ‘B-Y’ and ‘R-Y’ signal into waveform. of the input signals onto the X-Y axis. - Two different types of Vetorscopes are displayed according to SD or HD input signals.
  • Page 26 7. Other Functions [4] Line Select (Waveform/VectorScope) [5] Zoom Used to select specific Vertical Line for Used to magnify the input signal from 0% to WaveForm/VectorScope. 90%. It is available when LINE WaveForm is activated. Supports Zoom Width Scroll / Zoom Height Scroll function.
  • Page 27 7. Other Functions [6] Luma(Y’) Zone Check Color Pattern Type Zebra Pattern Type Displays the pixels with designated Luma(Y’) Displays the Luma(Y’) level of the input image levels with zebra pattern. in colors. Y’ ≥ 100%: Pixels with Y’ level over 100% turn to Y’...
  • Page 28 7. Other Functions [7] Focus Assist [8] Range Error Pixels with Y’ or C’ levels exceeding the Focus Assist function assigns a color to the designated levels of Y MAX, Y MIN, C MAX and C pixels in the shape or boundary area of the MIN shall blink.
  • Page 29 7. Other Functions [9] DSLR Scale This function is designed for some DSLR cameras(Canon 5D, 550D and Nikon D7000) that output different resolution from the operation mode (preview, recording, playback). Select the Camera model in the [Display/Vide]- [DSLR Camera Sel.] menu. CANON In StandBy mode of Canon 5D Mark II, 1080i of HD resolution is indicated.
  • Page 30 7. Other Functions [10] HDMI To SDI Conversion-Out [12] Internal Pattern Video source from ‘HDMI input’ terminal can be Displays internally generated test patterns. output through ‘SDI throughout’ terminal. The pattern consists of ColorBar and Pluge+ Grayscale Patterns. Full screen colors of various Note: HDSLR camera manufacturers usually gray levels(0~100%) are also embedded.
  • Page 31 8. Product Specifications LVM-074W Size 7” Resolution 1024 X 600 (16:9) Pixel Pitch 0.15(H) X 0.15(W) mm Color Depth 16.7M (True 8bit) Viewing Angle H : 170 degrees / V : 170 degrees Luminance of white 400 cd/ m (Center)

  • Page 32: Optional Accessories

    9. Optional Accessories Sun-Hood External Acrylic Protector V-Mount Gold-Mount Tripod Ball Head Carrying Bang with Hood (Rain Cover) External Tally Rack Mountable Kit 32 Multi Format LCD Monitor...
  • Page 33 MEMO Multi Format LCD Monitor 33...
  • Page 34 MEMO 34 Multi Format LCD Monitor...
  • Page 36 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr...
