12.13 CABLIBRATION S/W INSTALLATION
Monitor
Input Pattern/Output Pattern
The user can display the input pattern or output pattern on the monitor. The input
The user can display the input or output pattern on the monitor. The input level
level can be selected between ranges of 50, 85 and 100. Each output level for R, G,
can be selected between the ranges of 50, 85 and 100. Each output level for R, G,
and B can be selected from 0 to 255 (8BIT) and 1024 step (10 BIT).
and B can be selected from 0 to 255 (8 BIT) and 1024 step (10 BIT).
After the input of the appropriate values, click the "Apply" button. After the input of the appropriate values, click the "Apply" button.

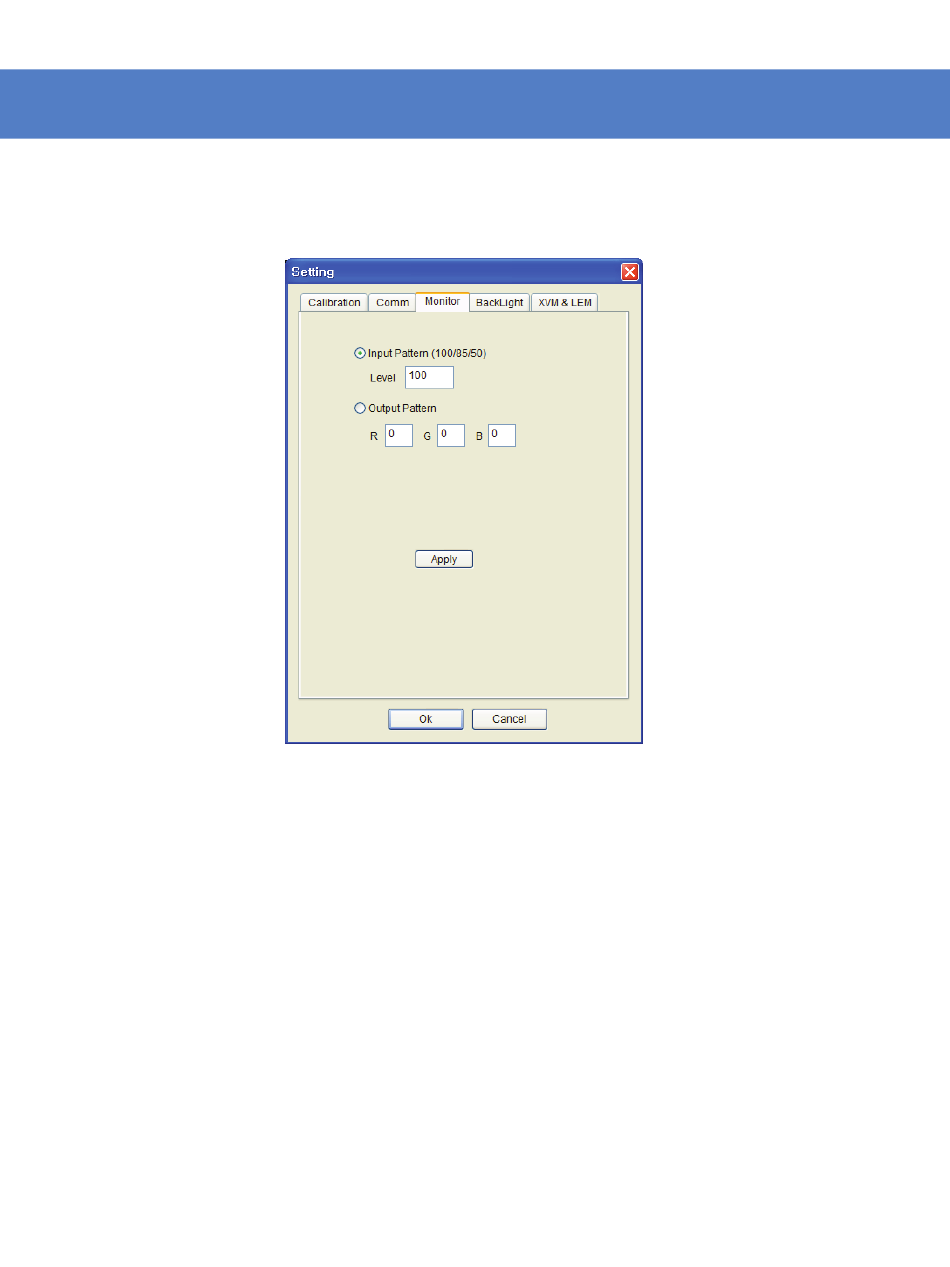

Fig 10 Setting pattern dialog
