12.17 CABLIBRATION S/W INSTALLATION
K-10, i1 Display3 Setting Dialog
When the K-10 or i1 Display3 is connected to PC for the first time, the "Device Setting" pop-
up appears as above. (Fig.16)
Default LCD
This channel is used for color calibration of normal LCD display which is CCFL backlight type.
LED B/L LCD
This channel is used for color calibration of LED backlight type displays like XVM-245W.
OLED
This channel is used for color calibration of OLED panel equipped displays like LEM-150 and
TDM-150W.
WCG-CCFL
This channel is used for color calibration of LCD display which is Wide Color Gamut – CCFL
backlight type.
※ Once Device Setting is completed, above pop -up will not appear again.
If you want to re-set the options, enter the [Setting] menu and select the
[Calibration] tap and then press "Set" button on the [Measure Device].

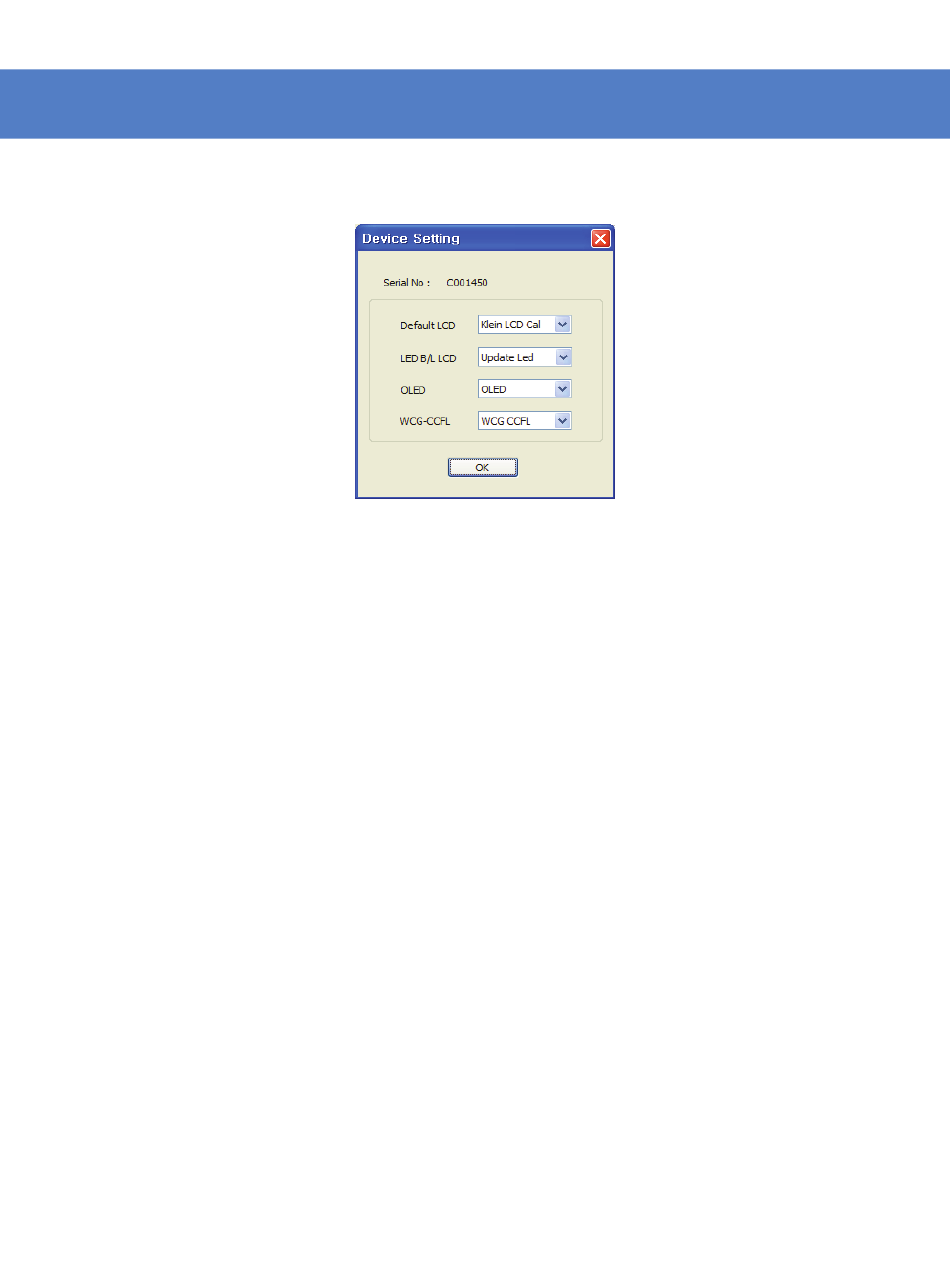

Fig 14 Device Setting
37
