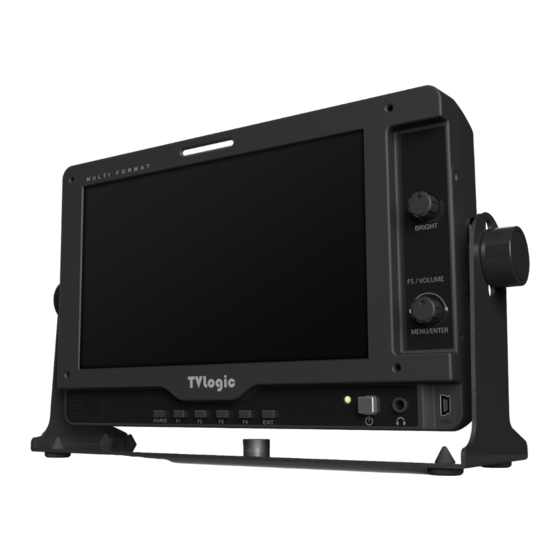

7" FHD Multi Format
Broadcast LCD Monitor
LVM-070C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVM-070C and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic LVM-070C

Summary of Contents for TVLogic LVM-070C

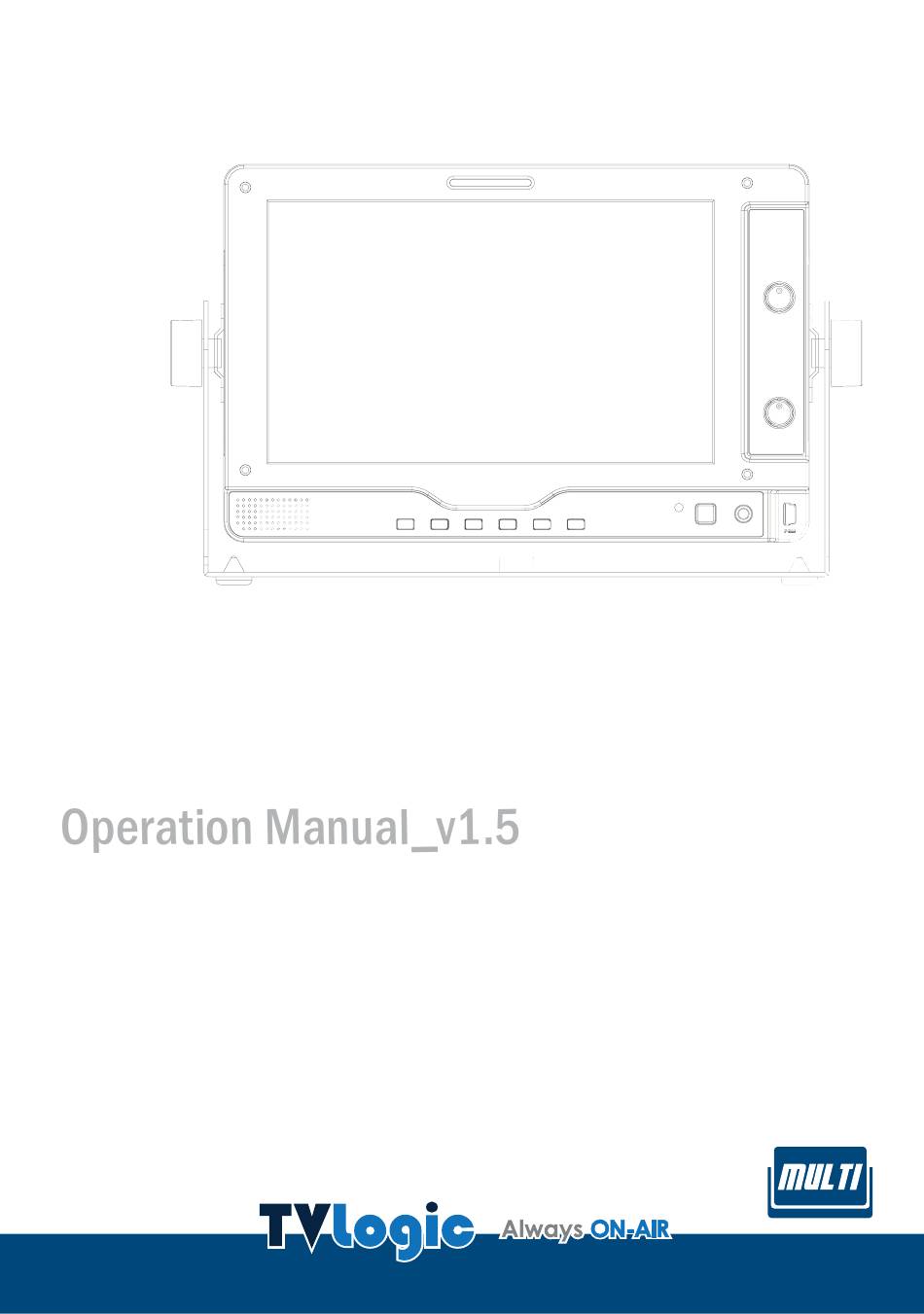

  • Page 1 7” FHD Multi Format Broadcast LCD Monitor LVM-070C...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Organization & Adjustment 5. Menu Operations [1] PICTURE [2] COLOR [3] MARKER [4] DISPLAY / VIDEO [5] WAVEFORM [6] AUDIO [7] SYSTEM 6. Button Functions 7. Other Functions 8.

  • Page 4: Caution

    1. Caution Always use set voltage. (DC 12V) • • Do not attempt to service the product yourself. • Removing covers can expose you to high When using a DC Adapter other than the • voltage and other dangerous conditions. one supplied by the manufacturer, please Request a qualifi ed service person to perform be advised that the adapter with DC 12V/3A...
  • Page 5 1. Caution • • When mounting the product on a wall or • • When relocating the product placed on a cart, ceiling, be sure to install the product it must be moved with the utmost care. according to the method recommended by the Sudden stops, excessive force and uneven fl oor manufacturer.

  • Page 6: Main Features

    2. Main Features LVM-070C Monitor contains the following features: • • Compatible with various SDI signals • • Knob Control formats (SD/HD/3G) - Easy to adjust user confi guration using the control knob on the front of the monitor. - This product is compatible with various SDI signals - SD/HD/3G(A/B)-SDI 480i, 576i, 1080i, •...

  • Page 7: Controls & Functions

    3. Controls & Functions LVM-070C : FRONT SOURCE MENU/EXIT LVM-070C : REAR Multi Format LCD Monitor 7...
  • Page 8 - Used for Stereo Audio Output through Phone Jack. (video signals with embedded audio only) • • PGM (USB) - This terminal is used to upgrade the fi rmware or color calibration made by TVLogic. 8 Multi Format LCD Monitor...
  • Page 9 3. Controls & Functions REAR • • [SDI-IN A] (BNC) • • BATTERY IN - HD/SD SDI signal input terminal for SDI A. - Battery Power Input : DC 12V * Rated Power Input : DC 12V • • [SDI-OUT A] (BNC) - HD/SD-SDI signal output terminal for SDI A •...

  • Page 10: Menu Organization & Adjustment

    4. Menu Tree & Adjustment [1] Menu Tree [3] Menu Control Sequence • • OSD(On-Screen Display) Menu helps you • • Menu control sequence follows the order use various functions. below: • • This Picture is the menu structure for LVM- 1.

  • Page 11: Menu Operations

    5. Menu Operations [1] Picture • • Aperture - Used to set the sharpness level from -5 to 19. # Press the Knob to adjust Aperture quickly. • • NTSC Setup - Used to set Black Level of NTSC video as 0(zero setup) or 7.5 IRE.

  • Page 12: Color

    5. Menu Operations [2] Color • • Color Temp. • • Gamma - Controls color temperature and allows instant - Used to change the Gamma Curve. access to preset color temperature settings. - Settable values are [2.2], [2.4] - Available color temperatures are 3200K, 5600K, 6500K, 9300K and User 1/2/3.

  • Page 13: Marker

    5. Menu Operations [3] Marker • • Marker • • Marker Mat - Used to activate the Marker function. - Used to set the darkeness level outside of the - Available marker types are OFF, 16:9, 4:3, 4:3 MARKER area from OFF(transparent) to 7(Black). ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 &...

  • Page 14: Display / Video

    5. Menu Operations [4] Display / Video • • USER ASPECT HORIZONTAL/VERTICAL - Activates only when the Scan mode is set to USER ASPECT. - Used to set the horizontal/Vertical aspect ratio of the screen arbitrarily. • • 3G FORMAT - Used to select input format of SDI 3G A/B support(NORMAL MODE, A 444 10BIT_YCbCr, A 444 10BIT_RGB, A 444 12BIT_YCbCr, A...
  • Page 15 5. Menu Operations [4] Display / Video • • Focus Assist - Focus Assist helps the shooters to easily fi nd out the exact area in the picture with good focus, simply by adding colors on the shape or boundaries of the object in the picture. - Activates in order of [(Mono) On][(Color] On] [Off ] * (Color) On : Only the boudary of the area...

  • Page 16: Waveform

    5. Menu Operations [4] Display / Video [5] Waveform • • XLR TALLY On/Off • • Waveform / Vector - Used to set Tally operation according to the - The item sets Waveform and Vectorscope. input level of TALLY IN terminal which is - The operation order is OFF ->...
  • Page 17 5. Menu Operations [5] Waveform • • Waveform Trans • • Luma(Y’) Zone Check - Controls the transparency level of the - Displays the Luma(Y’) level of the input image WAVEFORM/VECTOR. in colors. - Available values are OPAQUE and TRANS. - May select between [Color Pattern] or [Zebra * If the option is set to OPAQUE, the main OSD Pattern].
  • Page 18 5. Menu Operations [5] Waveform • • C Min - Used to set the minimum chroma(C’) level from 0 to 255. - Pixels with values exceeding the min C’ level will blink in the screen, and displayed as red on the Waveform.

  • Page 19: Audio

    5. Menu Operations [6] Audio • • Level Meter Group - Used to set the level meter group. - Available modes are as below. • • Level Meter Display (SDI Only) - Used to set the display method for audio level meter.

  • Page 20: System

    5. Menu Operations [7] System • • S/W upgrade - fi rmware-updates with USB memory stick(Thumb drive). • • S/W upgrade start - When S/W upgrade is [On], the monitor detects USB memory stick, and update is available, it is activated. •...

  • Page 21: Button Functions

    6. Button Functions [2] Function Key Set Button [1] Source Button • • This product is capable of processing all • • Used to make a quick setting of the input signals usable in SOURCE mode. Function Key. • • The input settings are as follows: 1.
  • Page 22 6. Button Functions [3] SCAN Button • • This product supports various scan modes. • • Press [SCAN] button on the front of the DOWN DOWN monitor to activate diff erent scan modes. <CENTER> <LEFT TOP> <RIGHT TOP> 1. [Press [SCAN] button continuously to activate various scan modes: ZERO SCAN ->...

  • Page 23: Other Functions

    7. Other Functions [1] Pixel to Pixel • • LVM-070C monitor provide pixel count info using Pixel to Pixel mode. 1. Select [Scan] mode in the OSD menu to activate the[Pixel To Pixel] mode. 2. After activation of [Pixel To Pixel] mode, use the Knob to move the position.
  • Page 24 7. Other Functions [2] User Aspect • • Select [Aspect] mode in the OSD menu to activate the[User Aspect] mode. • • After activation, press the Knob to get ready for controlling. • • Adjust the ratio using the Knob. # To adjust the 16:9 aspect ratio of 1920X1080 resolution into 2.35:1 aspect ratio, adjust the •...
  • Page 25 7. Other Functions [3] Waveform / Vectorscope • • Waveform Y • • Vector WIDE - Displays the Luma(Y’) component of the input • • YCbCr signal into waveform. • • Wave Vector • • Vector YCbCr • • Full Wide(Y) •...
  • Page 26 7. Other Functions [4] Line Select [5] Zoom (Waveform/VectorScope) • • Used to select specifi c Vertical Line for • • Used to magnify the input signal from 0% to 90%. WaveForm/VectorScope. - It is available when LINE WaveForm is •...
  • Page 27 7. Other Functions [6] Luma(Y’) Zone Check • • Color Pattern Type • • Zebra Pattern Type - Displays the Luma(Y’) level of the input image - Displays the pixels with designated Luma(Y’) in colors. Y’ ≥ 100% : Pixels with higher Y’ level levels with zebra pattern.
  • Page 28 7. Other Functions [8] Range Error [7] Focus Assist • • Focus Assist function assigns a color to the • • Pixels with Y’ or C’ levels exceeding the pixels in the shape or boundary area of the designated levels of Y MAX, Y MIN, C MAX image to inform the user to make the best and C MIN shall blink.
  • Page 29 7. Other Functions [9] DSLR Scale • • This function is designed for some DSLR • • NIKON cameras(Canon 5D, 550D and Nikon - In StandBy/Record mode of NIKON, actual D7000) that output diff erent resolution resolution of the output signal from HDMI from the operation mode (preview, terminal is 1440x1080, failing to display 16:9 recording, playback).
  • Page 30 7. Other Functions [10] Internal Pattern • • Displays internally generated test patterns. - The pattern consists of ColorBar and Pluge+ Grayscale Patterns. Full screen colors of various gray levels(0~100%) are also embedded. <Color Bar + Pluge Pattern> <Gray Pattern> 30 Multi Format LCD Monitor...

  • Page 31: Firmware Upgrage

    * During the update, the monitor screen is off , and nothing functions. * After the update, TVLogic logo shows up on the screen, and the monitor initializes. * Update can take 10~20min. depending on fi rmware kind.

  • Page 32: Product Specifi Cations

    9. Product Specifi cations LVM-070C Size 7” Resolution 1024 X 600 (16:9) Pixel Pitch 0.15(H) X 0.15(W) mm Color Depth 16.7M (True 8bit) Viewing Angle H : 170 degrees / V : 170 degrees Luminance of white 400 cd/ m...

  • Page 33: Optional Accessories

    10. Optional Accessories Sun-Hood External Acrylic Protector V-Mount Gold-Mount Tripod Ball Head Carrying Bang with Hood (Rain Cover) Rack Mountable Kit Multi Format LCD Monitor 33...
  • Page 34 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08590, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr...
