11.2 PROGRAM UPDATE WITH USB
CAUTION:
FPGA and CPU should be separately updated.
4) Firmware update
-FPGA
* Select the FPGA check box in PROGRAM STATUS.
* Select FPGA type form check box in PROGRAM STATUS.
* Select Bank0 from bank selection window. Then click on the file open button to
* Select Bank0 from bank selection window. Then click on file open button to open
open the firmware file for FPGA.
firmware file for FPGA.
* Click on the DOWNLOAD button to start download.
* Click on DOWNLOAD button to start download.

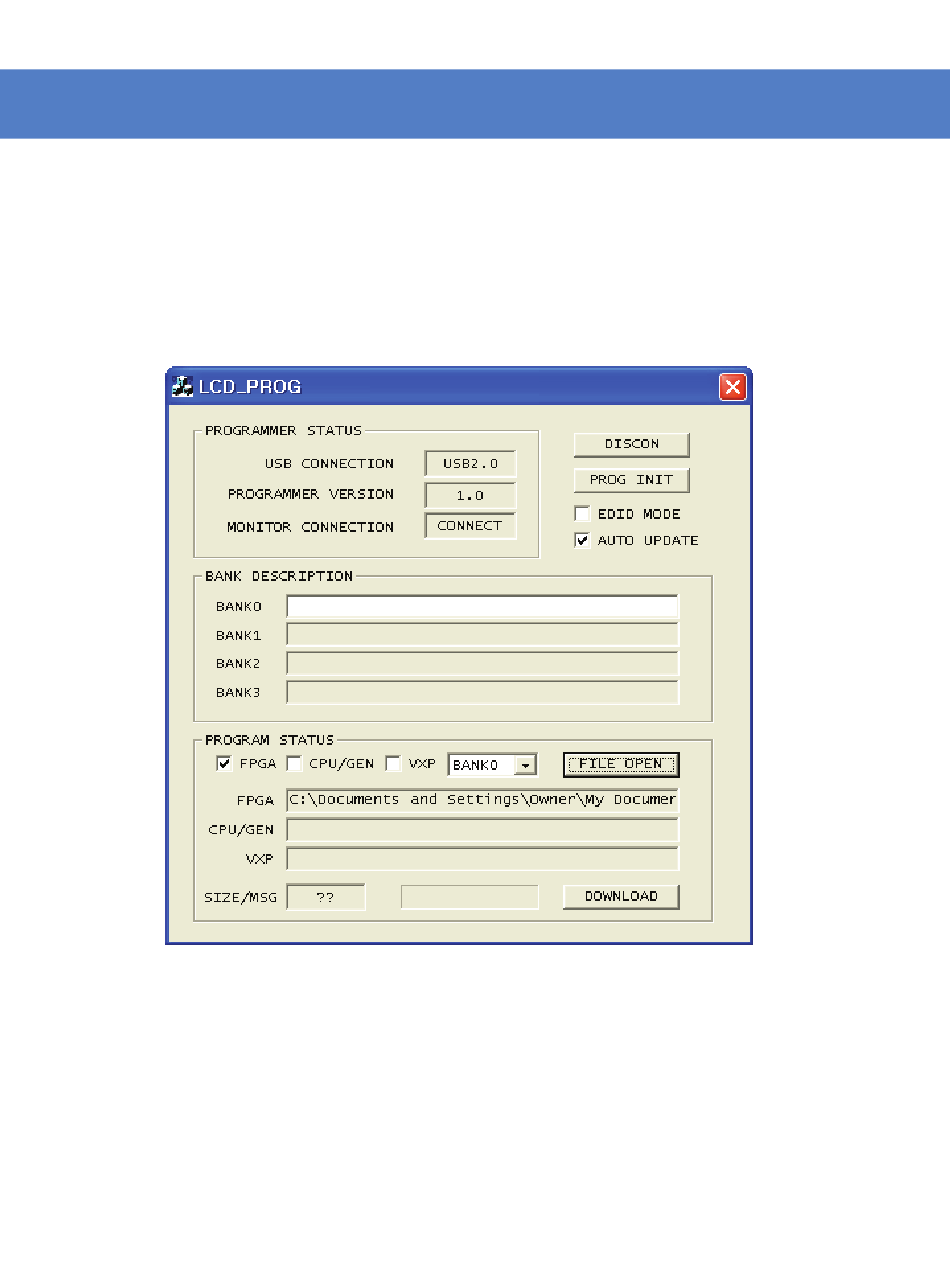

Picture 1: FPGA setting
