  • Page 1: Lcd Monitors

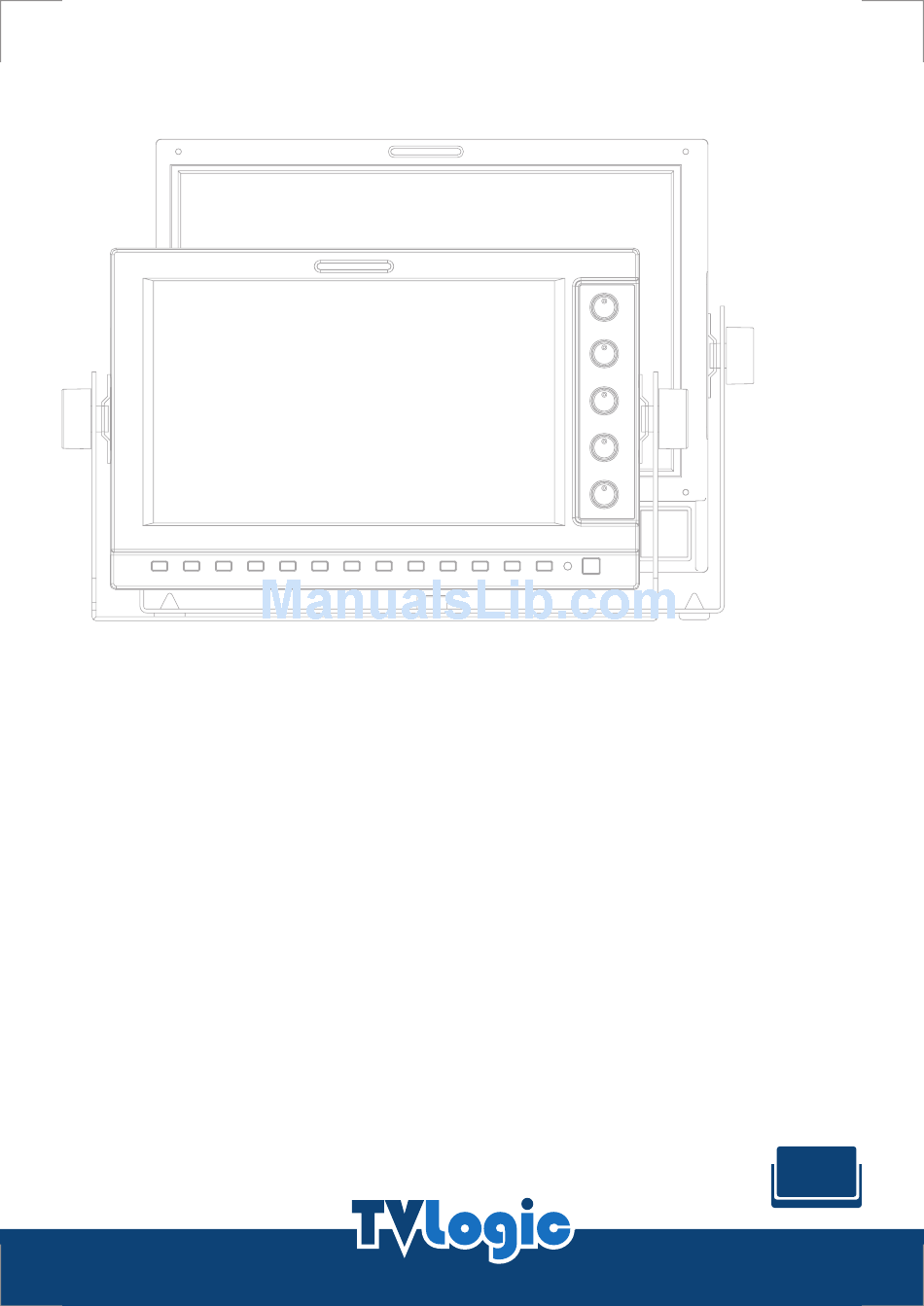

    Multi Format Broadcast LCD Monitors Operation Manual LVM-071W LVM-091W MULTI...

  • Page 3: Table Of Contents

    Contents ..................CAUTION CAUTION CAUTION ..................FEATURES FEATURES FEATURES ............NAME & FUNCTION OF EACH PART NAME & FUNCTION OF EACH PART NAME & FUNCTION OF EACH PART ..........MENU ORGANIZATION & ADJUSTMENT MENU ORGANIZATION & ADJUSTMENT MENU ORGANIZATION & ADJUSTMENT ................

  • Page 4: Caution

    Caution ALWAYS USE SET VOLTAGE. DC 12V(LVM-071W), DC 12V/24V(LVM-091W) All operating instructions must be read and understood before the product is operated. These safety and operating instructions must be kept in safe place for future reference. All warnings on the product and in the instructions must be observed closely.
  • Page 5 Caution In case the product needs replacement parts, make sure that the service person uses replacement parts speci ed by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in re, electric shock and/or other danger. In case the product needs replacement parts, make sure that the service person uses replacement parts speci ed by the manufacturer, or those with the same characteristics and performance as the original parts.

  • Page 6: Features

    - The product is powered by normal DC source. * LVM-071W : DC12V (LVM-071W), LVM-091W : DC12V/24V (LVM-091W) Additional features - Active Loop Through/SDI , , VESA Mounting Standard, 350 cd/m2 brightness, 700:1(LVM-071W) 350:1(LVM-091W) contrast ratio, OSD user interface, Rack Mountable...

  • Page 7: Name & Function Of Each Part

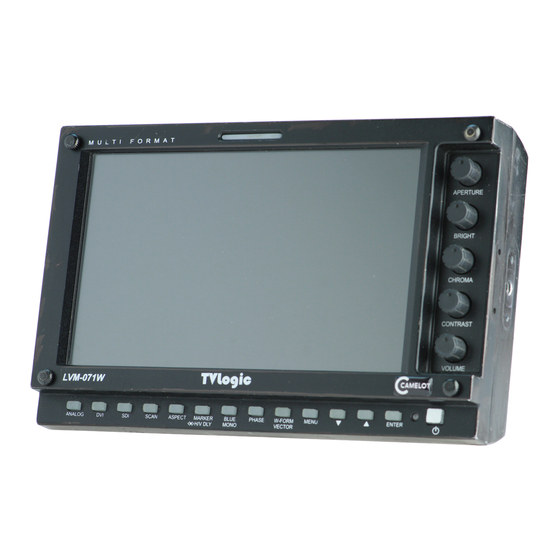

    Name & Function of Each Part LVM-071W : FRONT TALLY APERTURE BRIGHT CHROMA CONTRAST VOLUME ANALOG POWER ENTER UNDERSCAN DOWN ASPECT MENU MARKER/HVDELAY WAVEFORM/VECTOR SCOPE BLUE ONLY/ MONO PHASE LVM-091W : FRONT TALLY CONTRAST CHROMA VOLUME BRIGHT APERTURE MENU ANALOG...
  • Page 8 - Used to change the display ratio between 4:3 and 16:9. * Display ratio locks to 16:9 if the display ratio of input signal is 16:9. [MARKER < > HVDELAY] Button/Lamp (LVM-071W) - Used to activate/deactivate the Marker. The type of marker at work may be selected on the main menu.
  • Page 9 #Aperture is not available in DVI Analog or Graphic mode. [BRIGHT] Knob - Used to adjust the degree of brightness. - The value is selectable between -25 ~ 25 (LVM-071W), -128 ~ 127 (LVM-091W). [CHROMA] Knob - Used to adjust the saturation of the image.
  • Page 10 Name & Function of Each Part [CONTRAST] Knob - Used to adjust the contrast. - The value is selectable between -25 ~ 25 (LVM-071W), -128 ~ 127 (LVM-091W). [VOLUME] Knob - Used to adjust the volume for internal speaker and external output.
  • Page 11 Name & Function of Each Part LVM-071W : REAR DVI DIGITAL/ DVI ANALOG SDI-IN REMOTE SDI-OUT CVBS1/B/Pb FACTORY PGM CVBS2/G/Y/S-Y CVBS3/R/Pr/S-C DC IN AUDIO IN AUDIO OUT LVM-091W : REAR SDI-B TALLY TALLY REMOTE SDI-A SDI-OUT FACTORY PGM CVBS1/B/Pb CVBS2/G/Y/S-Y...
  • Page 12 Name & Function of Each Part REMOTE (RJ-45) - Provides connection to control equipment for external monitor control. - Features can be changed in the [REMOTE] section of OSD menu. DVI DIGITAL/DVI ANALOG (DVI-I) - Input connection for DVI digital/analog. <Video Input>...

  • Page 13: Menu Organization & Adjustment

    Menu Organization & Adjustment The product may be controlled and set system-wise through OSD displayed on the screen. [1] Menu Organization Below is the organization of the product’s menu. [2] Menu Control You may control various functions using MENU, UP/DOWN and ENTER buttons on the bottom front of the monitor.

  • Page 14: Menu Contents

    # Brightness can be adjusted by using the [BRIGHT] control knob on the front of the monitor. CONTRAST - This item indicates contrast ratio value between -25 ~ 25 (LVM-071W), -128 ~ 127 (LVM-091W). #Contrast can be adjusted by using the [CONTRAST] control knob on the front of the monitor.
  • Page 15 Menu Contents [2] PICTURE - DVI ANALOG ONLY BRIGHTNESS - This item controls the degree of brightness between -25 ~ 25. # Brightness can be adjusted by using the [BRIGHT] control knob. CONTRAST - This item controls the contrast ration between -25 ~ 25. # Contrast can be adjusted by using the [CONTRAST] control knob.
  • Page 16 Menu Contents [3] COLOR COLOR TEMP - This item controls color temperature and allows instant access to preset color temperature settings of 3200K, 5600K, 6500K, 9300K and USER 1/2/3. - In USER1/2/3 mode, user can de ne custom RGB GAIN and BIAS values. GAIN RED - This item controls red gain value between -192 ~ 63.
  • Page 17 Menu Contents [4] MARKER MARKER - This item selects the marker type when the MARKER is displayed on the screen. - Marker may only be activated by pressing the MARKER button on the front of the monitor. - Available marker types are OFF, 16:9, 4:3, 4:3 ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3 . CENTER MARKER - This item displays the CENTER MARKER on the screen.
  • Page 18 - PIN 7 is POWER ON/OFF use only, PIN 8 is GND. - The selectable functions are as follows MenuClassi cation SettableValues PIN1~6 ANALOGCHANNEL, DVI CHANNEL, DIGITAL CHANNEL(LVM-071W), SDI-A CHANNEL, SDI-B CHANNEL (LVM-091W), TALLYRED, TALLY GREEN, BLUE ONLY, UNDERSCAN, ASPECT,...
  • Page 19 Menu Contents [6] WAVE FORM *Press [W-FORM/VECTOR] Button to activate Waveform. WAVEFORM INTENSITY - This item controls the brightness of the WAVEFORM/VECTOR display. - Available values are between 1 ~ 63. The higher the number the brighter the waveform will be. WAVE FORM TRANS.
  • Page 20 Menu Contents Y MAX - This item sets the maximum luminance level. - Available values are between 0 ~ 1023. Exceeded selection displays in red on the waveform and blinks on the screen. Y MIN - This item sets the minimum luminance level. - Available values are between 0 ~ 1023.
  • Page 21 Menu Contents [7] AUDIO AUDIO VOLUME - This item controls the embedded audio output volume for the internal speakers and [AUDIO OUT] on the back of the monitor. - Available values are between 0 ~ 20 EM. AUDIO LEFT - This item controls embedded audio channel for left audio out of internal speaker and [AUDIO OUT] in the back of the monitor.
  • Page 22 MONITOR ID - This item sets the ID of each monitor for the TVLogic control protocol or DYNAMIC UMD using RS-422/485 communication. - Available values are between 0 ~ 99.
  • Page 23 - Available values are small and Large. * See section “Other Functions [8] Measurement Layout Preset” for more information. LOCK ENABLE - Only applicable to LVM-071WS(SD only) model. - Enable code input item to convert LVM-071WS(SD only) to LVM-071W model.
  • Page 24 Menu Contents H/V FLIP LVM 091W ONLY - This item ips image horizontally or vertically. - Available modes are H-Flip, V-Flip, H/V-Flip. BACK LIGHT - This item indicates the backlight level.

  • Page 25: Other Functions

    # If no image displays after selecting the desired input mode, check and make sure that your connection is not lose or disconnected. 3) SDI INPUT MENU LVM-071W Series unit is capable of processing single SDI Input signal. LVM-091W Series unit is capable of processing dual SDI Input signal.
  • Page 26 CENTER After two seconds LVM-071W /091W monitor’s Pixel to Pixel mode displays input signal without scaling. Press [UNDERSCAN] button on the front of the monitor to activate the[Pixel To Pixel] mode. In the [Pixel To Pixel] mode, use the [UP]/[DOWN] buttons to toggle between 1:1 scan sections.
  • Page 27 Other Functions Positions in HD Signal 1080i/1080p mode [UP] [UP] LVM-171WG [DOWN] [DOWN] Center [UP] [UP] [UP] [DOWN] [DOWN] [DOWN] Right Top Right Mid Right Bottom [UP] [UP] [UP] [DOWN] [DOWN] [DOWN] Mid Bottom Left Bottom Left Mid Position in HD Signal 720p mode [UP] [UP] [DOWN]...
  • Page 28 After activation, press [ENTER]button to get ready for controlling Adjust the ratio using [UP]/[DOWN] button. Controlling range of width - LVM-071W/091W : Min[100] ~ Max[800] Controlling range of height - LVM-071W/091W : Min[100] ~ Max[480] The picture always stay in the middle of the display # To adjust the 1920X1080 input whose resolution is 16:9 into 2.35:1 picture ratio, adjust the Width...
  • Page 29 Other Functions [6] WAVEFORM FUNCTION (This function is only available with SDI Input.) WAVE FORM : Displays the shape and form of luminance level of a signal. VECTOR SCOPE : Displays color components of the input signals on the XY axis HD and SD inputs are classi ed into two kinds, depending on the input.
  • Page 30 Other Functions WAVE FORM WIDE : Displays waveform in wide mode. Enlarge the elements of luminance of input signal to match with the screen width and output it at the bottom of the monitor. WAVE FORM Y CB CR : Displays each waveform for elements of the luminance and Cb/Cr of the input signal.
  • Page 31 Other Functions VECTOR_Y CB CR : Displays Vector scope and Y/Cb/Cr waveform simultaneously. [7] LINE SELECT FUNCTIONS(WAVEFORM/VECTOR) (This function is only available with SDI Input.) - This item selects the output line of WAVEFORM/VECTOR. - This item activates when LINE WAVEFORM feature is selected. - Activate Waveform by pressing [W-FORM/VECTOR] button, then use [UP]/[DOWN] button to select a desired vertical line.
  • Page 32 Other Functions [8] MEASUREMENT LAYOUT PRESET (This function is only available with SDI Input.) - This function supports to adjust the size and arrange a position of displaying screen without overlapping with the screen of Audio Level Meter, Wave Form & VectorScope. Small - WaveForm : Vector_YCbCr , Small Size - Audio Level Meter : 16CH(Ver.), Small Size...

  • Page 33: Dvi Analog/Digital Support Resolution

    DVI ANALOG/DIGITAL Support Resolution DVI ANALOG Resolution (Source) Dot Clock fH (kHz) fV (Hz) Sync (H/V) [MHz] 640 x 350 70Hz (IBM) 25.175 31.469 70.086 640 x 480 60Hz (IBM) 25.175 31.469 59.940 720 x 400 70Hz (IBM) 28.322 31.469 70.087 640 x 480 67Hz (MAC) 30.240...
  • Page 34 DVI ANALOG/DIGITAL Support Resolution DVI DIGITAL Resolution (Source) Dot Clock fH (kHz) fV (Hz) Sync (H/V) [MHz] 640 x 350 70Hz (IBM) 25.175 31.469 70.086 640 x 480 60Hz (IBM) 25.175 31.469 59.940 720 x 400 70Hz (IBM) 28.322 31.469 70.087 640 x 480 67Hz (MAC) 30.240...

  • Page 35: Product Specification

    Product Speci cation LVM-071W 1 x DVI-I DVI IN / VGA IN Input 3 x BNC Analog Input 1 x BNC SDI 1 Channel Input Output 1 x BNC SDI Channel (Active Through Out) Analog Composite / S-Video / Component / RGB HD-SDI 1.485Gbps...
  • Page 36 Product Speci cation LVM-091W 1 x DVI-I DVI IN / VGA IN Input 3 x BNC Analog Input 2 x BNC SDI 2 Channel Input Output 1 x BNC SDI Channel (Active Through Out) Analog Composite / S-Video / Component / RGB HD-SDI 1.485Gbps Input Signal...

  • Page 37: Lvm Series Product Lineup

    LVM Series Product Lineup LVM-071W 1. LCD Resolution : 800 x 480 (15:9) 2. Color : 16.7M(true), 24bit 3. Contrast - 300 :1 4. Viewing Angle : H (130) / V (115) 5. Weight : 1Kg (2.2 lb) LVM-084 1. LCD Resolution : 1024 x 768 (4:3) 2.
  • Page 38 LVM Series Product Lineup LVM-321W 1. LCD Resolution : 1920 x 1080 (16:9) 2. Color : 10 bit(D), 1.068 colors 3. Contrast - 1300 :1 4. Viewing Angle : 178 5. Weight : 21.45Kg (47.3 lb) LVM-401W / LVM-403W 1. LCD Resolution : 1920 x 1080 (16:9) 2.

  • Page 39: Optional Accessory

    Optional Accessory 7” 9” ND Filter 17” 24” 40” 7” 9” 17” 24” External Filter Rack-Mountable Kit 46” 57” 7” 9” 17” 17” Tripod Head 7” 9” V-Mount Hood-&-Handle Carrying Case 17” 24” 32” 40” 46” 57” RACK MOUNT ANY DISPLAY UP TO 24” 7 inch 9 inch 17 inch...
  • Page 40 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.co.kr Developed by #914 Namsung Plaza(Ace Techno Tower 9), 345-30 Gasan-dong, Geumcheon-gu, Seoul, 153-782, KOREA Tel : +82-2-2026-1333, Fax : +82-2-2026-1339, Email: support@tvlogic.co.kr Digital Broadcasting System Digital Broadcasting System Digital Broadcasting System...
