  • Page 1 Multi User’s Manual Multi-Format LCD Monitors LVM Series LVM-170W (G) LVM-230W LVM-240W...
  • Page 2 Warning · Always use set voltage. - AC 100 ~ 240V (1.8A/50~60Hz) - DC 24V (6A) [Only LVM-240W(G)] · If liquid is spilled on or impacts this product, please disconnect the product immediately and seek professional help before continued use. ·...
  • Page 3 Features LVM Series units have the following features: Compatible with varied SDI signals The product is compatible with varied SDI Signals - 480i, 576i, 720p, 1080i, 1080p, 1080psF (SDI A, B 2 channel compatible) Compatible with varied analog signals The product is compatible with varied analog signals - Composite, S-Video, Component, RGB, etc.

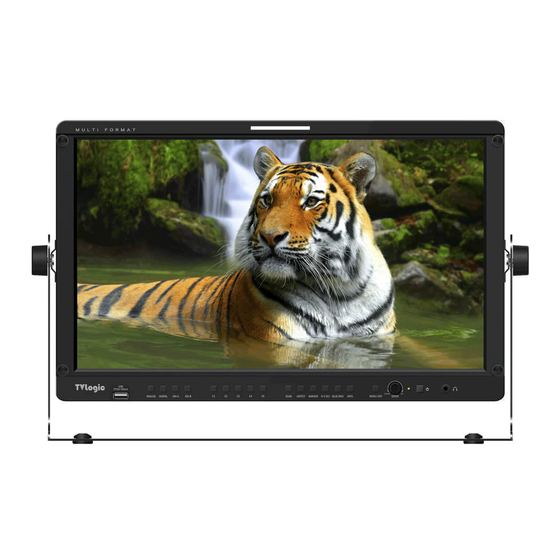

  • Page 4 Name & Function of Each Part LVM-170W (G) TALLY <FRONT> ANALOG INPUT STAND BY SDI INPUT SELECT ENTER UNDER SCAN UP / CONTRAST ASPECT DOWN / BRIGHT MARKER MENU H/V DELAY CHROMA/PHASE BLUE ONLY <REAR> REMOTE DVI IN / FACTORY PGM CVBS1 / Y / G / S-Y CVBS2 / Pb / B CVBS3 / Pr / R / S-C...
  • Page 5 LVM-230W TALLY <FRONT> ANALOG INPUT STAND BY SDI INPUT SELECT ENTER UNDER SCAN UP / CONTRAST ASPECT DOWN / BRIGHT MARKER MENU H/V DELAY CHROMA/PHASE BLUE ONLY <REAR> REMOTE DVI-I IN / FACTORY PGM CVBS1 / Y / G / S-Y CVBS2 / Pb / B CVBS3 / Pr / R / S-C SDI-IN A...
  • Page 6 LVM-240W TALLY <FRONT> ANALOG INPUT STAND BY SDI INPUT SELECT ENTER UNDER SCAN UP / CONTRAST ASPECT DOWN / BRIGHT MARKER MENU H/V DELAY CHROMA/PHASE BLUE ONLY / MONO <REAR> REMOTE DVI-I IN / FACTORY PGM CVBS1 / Y / G / S-Y CVBS2 / Pb / B CVBS3 / Pr / R / S-C SDI IN-A...
  • Page 7 <FRONT> · ANALOG INPUT Used to select desired ANALOG INPUT. A Sub Menu for each analog input connected can be selected. · SDI INPUT SELECT Used to select SDI INPUT A or B. · UNDER SCAN Used to transfer from OVER SCAN mode to UNDER SCAN mode. (Compatible up to SD 1:1 SCAN mode.) ·...
  • Page 8 · MENU Used when OSD menu is activated. · DOWN/BRIGHT Used to navigate menu during OSD menu activation. It may also be used to control the BRIGHT value when the OSD menu is not active. · UP/CONTRAST Used to navigate the menu during OSD menu activation. It may also be used to control the CONTRAST value when the OSD menu is not active.
  • Page 9 <REAR> · REMOTE (RJ-45) Connection for remote control of monitor. · DVI-IN / FACTORY PGM Input connection for DVI mode and input connector for FACTORY PGM allowing for firmware updates. · CVBS1/Y/G/S-Y (BNC) Signal input terminal used for COMPOSITE1, S-VIDEO Y, COMPONENT Y, RGB G signals. ·...
  • Page 10 Information Input VIDEO connection method Connector Composite Component S-Video CVBS1 CVBS2 No Con. CVBS3 Warning!! Before using this unit make certain to connect the power supply before connecting a signal to any of the inputs. The unit may not function properly if a signal is connected before the power supply is connected.
  • Page 11 Menu Organization & Adjustment The product may be controlled and set system-wide through an OSD. 1) Menu Organization Below is the organization of the product’s menu. 2) Menu Control You may control various functions using MENU, UP/DOWN and ENTER buttons on the bottom-front of the monitor.
  • Page 12 4. Press ENTER to select the desired item. (Verified by highlighted field returning to default black color.) 5. Press ENTER to save the new value (verified by highlighted field returning to default black color.) 6. Press MENU once to remove OSD menu from the screen.

  • Page 13: Menu Contents

    Menu Contents Below is the description of each function of the menu. [1] PICTURE part · BRIGHT This item controls the degree of brightness between MAX(50) and MIN (-50) range. · CONTRAST This item controls the contrast ratio between MAX(50) and MIN(-50). ·...
  • Page 14 · SDI FORMAT This item selects input SDI format between single mode and dual mode. (Use Dual mode) · SDI SAMPLING This item selects input SDI sampling mode between YCbCr and RGB. (Use Dual mode) · FILTER This item selects set the filter ON for smoother transitions between colors. [2] COLOR part ·...
  • Page 15 · BIAS RED This item adjusts black level to control red color. The value should be within range between MIN(-50) and MAX(50). · BIAS GREEN This item adjusts black level to control green color. The value should be within range between MIN(-50) and MAX(50).
  • Page 16 · CENTER MARKER This item displays the CENTER MARKER on the screen. This function operates only after activating the MARKER function by pressing the MARKER button on the front of the monitor. · SAFETY AREA This item controls the size of the SAFETY AREA between 80%, 88%, 90%, 93% and 100%. ·...
  • Page 17 The user may designate functions for PIN1 ~ PIN 6. PIN7 is for POWER ON/OFF use only. The selectable functions are as follows: Menu Settable Values Classification NONE, ANALOG CHANNEL, DIGITAL A/B CHANNEL, BLUE ONLY, SD 1:1 SCAN, UNDER SCAN, ASPECT, H/V DELAY, 16:9,15:9,14:9, 13:9 MARKER, 4:3, 4:3 ON AIR MARKER, 1.85:1, 2.35:1 MARKER, PIN 1~6 1.85:1&4:3 MARKER, CENTER MARKER, SAFETY AREA 80%, 88%,...
  • Page 18 · BACK LIGHT This item controls LCD Panel’s brightness. The value should be within range between MIN(0) and MAX(40). · AUDIO VOLUME This item controls embedded audio volume between MIN (0) and MAX (50). · AUDIO CHANNEL This item set embedded audio channel selects CH 1 ~ CH 16 and Off. ·...

  • Page 19: Other Functions

    Other Functions 1) ANALOG Mode Usage This product is capable of processing all input signals usable in ANALOG mode. The ANALOG input settings are as follows: 1. Press ANALOG button on the front of the product and activate the menu below. 2.
  • Page 20 3) DVI Support Resolution DVI-ANA mode supports the following modes: Resolution Frequency 640 × 480 60Hz, 75Hz, 85Hz 800 × 600 60Hz, 72Hz, 75Hz, 85Hz 1024 × 768 60Hz, 70Hz, 75Hz, 85Hz 720 X 400 70Hz DVI-DIG mode is separated into Graphic mode and Video mode. Graphic mode supports the below resolutions and frequencies.
  • Page 21 4) DUAL LINK Mode This product provides a DUAL LINK mode. If user wants to play dual link signal, select signal format on picture menu. DUAL LINK Mode can setup by following these steps: 1. Press MENU button to bring up the OSD menu. 2.

  • Page 22: Product Specification

    Product Specification Below is the product specification LVM-170W (G) 17.1" 407x309x80.8(16.02x12.17x3.18) 415x329.5x120(16.34x12.95x4.73) Carrying Case / V-mount / Hood / Handle/ 19” Rack Mountable Kit (7U) / Dual-Link These modes are sub-sampling modes ** SMPTE-372M mode is an optoin *** Above specifications may be changed without notice...
  • Page 23 Product Specification Below is the product specification LVM-230W 23.0" 550x355x96.8 (21.7x14x3.8) 558x376x150 (22x14.8x5.9) 10.2Kg Carrying Case / 19” Rack Mountable Kit (7U) / Dual-Link These modes are sub-sampling modes ** SMPTE-372M mode is an optoin *** Above specifications may be changed without notice...
  • Page 24 Product Specification Below is the product specification LVM-240W (21.7x15.3x3.8) (22x16.3x5.9) Carrying Case / Dual-Link These modes are sub-sampling modes ** SMPTE-372M mode is an optoin *** Above specifications may be changed without notice...
