12.4 CABLIBRATION S/W INSTALLATION
2. CALIBRATION
The purpose of our calibration tool is to optimize the colors of LCD displays by
compensating factors that affect the LCD panel. This calibration program is
used for all of our LCD monitors. For a detailed calibration procedure, please
refer to the following.
CALIBRATION PROCEDURE
PGM Port (15 Pin Port)
Please connect the 15 pin serial cable to monitor's factory PGM port to
your PC's serial port.
RS- 232
RS-232 Port (9 Pin Port)
Connect the monitor's factory RS232 port (PGM port) to the PC's serial port with
Connect the monitor's factory RS232 port (PGM port) to the PC's serial
the 9 pin serial cable.
port with the 9 pin serial cable.
Please don't connect the serial cable to the monitor directly. Use an additional cable
Please don't connect the serial cable to the monitor directly. Use
or connector
additional cable or connector
RS-232 port support model: 9 pin to 9 pin connector (TX,RX,GND only)
PGM port support model: 15pin to 9pin connector
USB & Serial

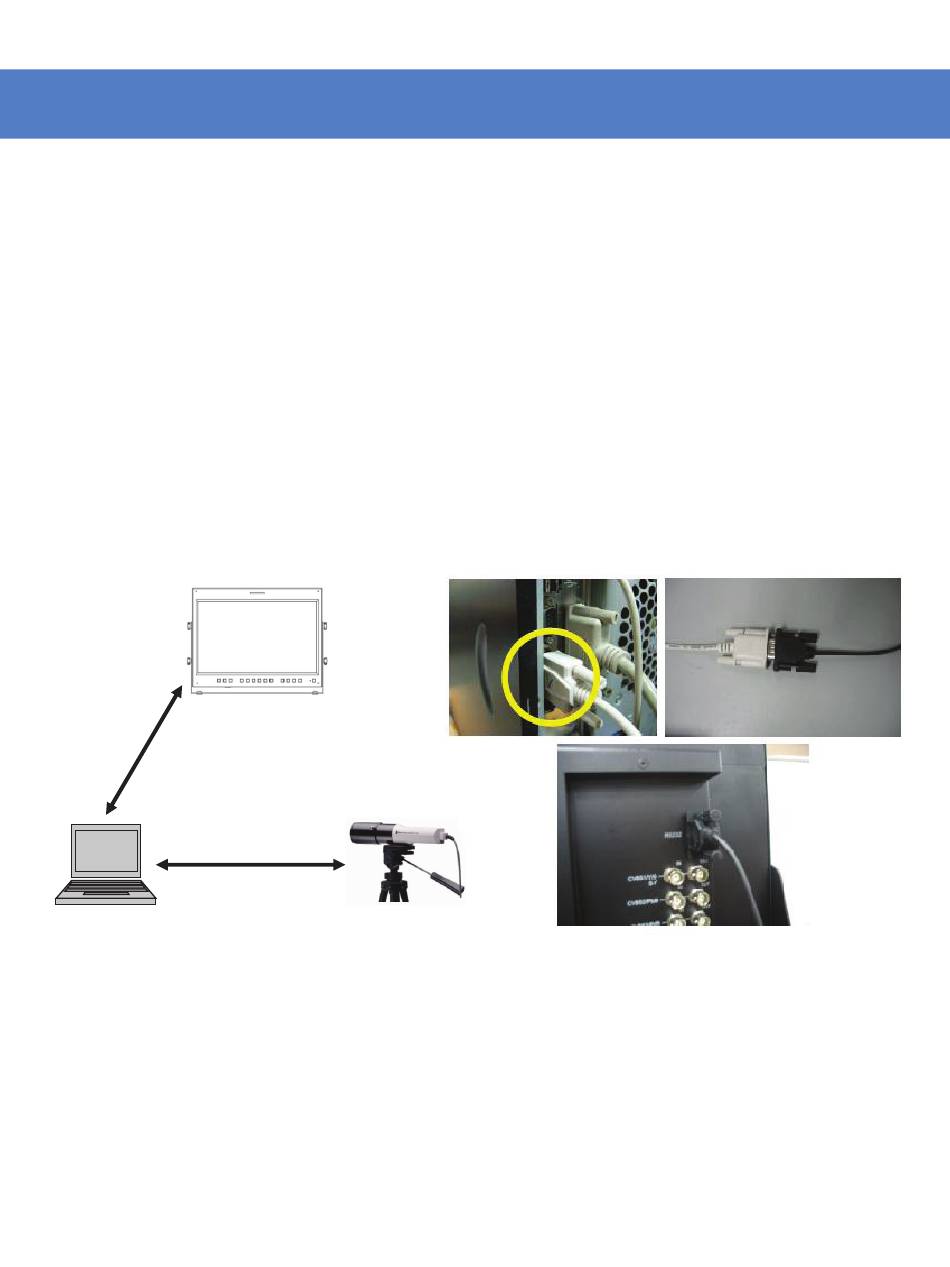

Fig 1: Connecting to the serial port
24
