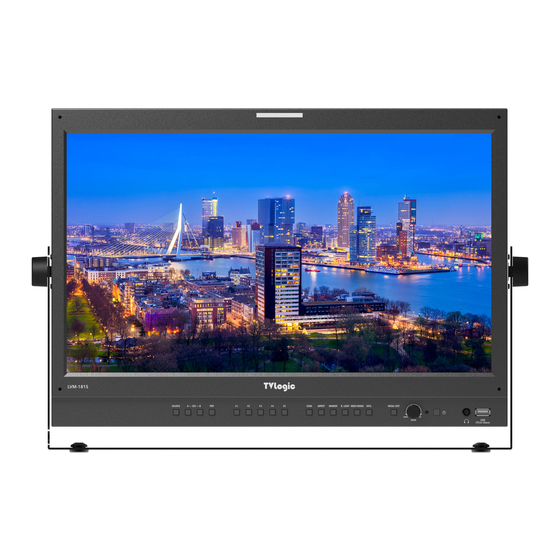

TVLogic LVM-181S Operation Manual
  1. Manuals
  2. Brands
  3. TVLogic Manuals
  4. Monitor
  5. LVM-181S
  6. Operation manual

TVLogic LVM-181S Operation Manual

Hide thumbs

Advertisement

Table of Contents

MULTI FORMAT
LCD
MONITOR
Operation Manual_V1.0
LVM-181S
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVM-181S and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic LVM-181S

Summary of Contents for TVLogic LVM-181S

  • Page 1 MULTI FORMAT MONITOR Operation Manual_V1.0 LVM-181S...

  • Page 2: Table Of Contents

    Contents 01. Caution 02. Main Features 03. Controls & Functions 04. Menu Tree & Adjustment 05. Menu Operations [1] PICTURE [2] VIDEO & DISPLAY [3] COLOR [4] GPI [5] MARKER [6] FUNCTION KEY [7] WAVEFORM & FOCUS [8] AUDIO [9] SYSTEM 06.

  • Page 3: Caution

    Multi Format LCD Monitor 01 CAUTION  Always use set voltage.  If any of the following conditions occur, unplug the power - AC 100 ~ 240V (50~60Hz) or DC 12V cord from the AC outlet, and request a qualified service person to perform repairs.
  • Page 4 Multi Format LCD Monitor 01 CAUTION  Unplug the power cord from the AC outlet before cleaning  The vents and other openings in the cabinet are designed the product. Use a damp cloth to clean the product. Do for ventilation. Do not cover or block these vents and not use liquid cleaners or aerosol cleaners.

  • Page 5: Main Features

    - Waveform & Vector Scope Support. - Embedded Audio Level Meter Support  Power - The LVM-181S is powered by normal AC source as well  Audio In & Out as DC 12V. - Internal Speaker (Embedded audio & External Audio In).

  • Page 6: Controls & Functions

    Multi Format LCD Monitor 03 CONTROLS & FUNCTIONS  LVM-181S FRONT...
  • Page 7 Multi Format LCD Monitor  LVM-181S REAR...
  • Page 8 - Press the Knob to select the main menu and sub menus.  [USB] (USB-A) - This terminal is used to upgrade the firmware or color calibration made by TVLogic.  [AUDIO OUT] (Phone jack) - Selects the Left/Right Audio disembedded signal output or HDMI input signal or external stereo signal is output through the internal speaker or the phone jack.
  • Page 9  [RS422 IN & OUT] (RJ-45) - Used to control the monitor with protocol provided by  [POWER S/W] TVLogic or to support TSL protocol. - Power On/Off switch  [CVBS1~3/YPbPr/S-Y B S-C IN & OUT] (BNC)  [DC IN] - Signal Input and Output terminal for Analog signals.

  • Page 10: Menu Tree & Adjustment

    5. Press the Knob or MENU button to save the new value after adjusting the desired value by rotating the Knob. LVM-181S 6. Press the MENU button to return to the previous menu, and if there is no previous menu, the OSD menu will be removed from the screen.
  • Page 11 Multi Format LCD Monitor 04 Menu Tree & Adjustment [4] Menu Tree BRIGHTNESS STANDARD CONTRAST VIDEO RANGE CHROMA PEAK LUMINANCE PICTURE SHARPNESS BLACK LEVEL USER ASPECT H COLOR GAMUT USER ASPECT V COLOR TEMP. EHS(DE-INT) MODE EOTF FAST MODE EETF 3G FORMAT HLG SG VIDEO RANGE SELECT...
  • Page 12 Multi Format LCD Monitor 04 Menu Tree & Adjustment [4] Menu Tree PIN 1 ~ PIN 8 MARKER DHCP CENTER MARKER ID ADDRESS SAFETY AREA SUBNET MASK FIT MARKER GATEWAY MARKER MAT PORT NO. MARKER COLOR SETTING APPLY MARKER THICKNESS MARKER GROUP ID USER MARKER H1...
  • Page 13 Multi Format LCD Monitor 04 Menu Tree & Adjustment [4] Menu Tree WAVEFORM DISPLAY LEVEL METER SELECT WAVEFORM INTENSITY LEVEL METER DISPLAY WAVEFORM TRANS. LEVEL METER REFERENCE WAVEFORM COLOR LEVEL METER DECAY TIME LINE WAVEFORM AUDIO LEVEL METER SIZE SELECT LINE POSITION LEVEL METER POSITION LUMA(Y’) ZONE CHECK VOLUME...

  • Page 14: Menu Operations 14P

    05 Menu Operations [1] PICTURE  USER ASPECT H LVM-181S - Used to adjust the horizontal size of the screen. - The setting range is from 0 to 1920. - Activated only when the [SCAN] mode is set to [USER ASPECT].

  • Page 15: Video & Display

    Multi Format LCD Monitor 05 Menu Operations [2] VIDEO & DISPLAY  3G FORMAT LVM-181S - Used to select input format of SDI 3G A/B support. - The available modes are as follows. NORMAL MODE A 444 10BIT_YCbCr A 444 10BIT_RGB...
  • Page 16 Multi Format LCD Monitor 05 Menu Operations [2] VIDEO & DISPLAY  CC INFO (CLOSED CAPTION INFO) LVM-181S - Displays the CC(Closed Caption) information which the monitor currently receives.  DECODE CHANNEL (608) - Sets the channel of Closed Caption 608.

  • Page 17: Color

    05 Menu Operations [3] COLOR  PEAK LUMINANCE LVM-181S - Used to select the Peak Luminance of the monitor. - This function is activated only when STANDARD is set to USER1/2/3 and then EOTF is set to PQ or HLG or SLOG3.
  • Page 18 Multi Format LCD Monitor 05 Menu Operations [3] COLOR  HLG SG LVM-181S - Used to set the System Gamma of the HLG mode. - In [ON] mode, the value of the System Gamma changes automatically according to the previously set peak luminance.
  • Page 19 Multi Format LCD Monitor 05 Menu Operations [3] COLOR  COLOR COPY LVM-181S - Used to copy the R/G/B Gain value of pre-stored color temperature settings. - In User mode, find and select the color temperature to be used with the Knob and press the knob button to copy and apply the Gain value to [GAIN RED], [GAIN GREEN], [GAIN BLUE].

  • Page 20: Gpi

    Multi Format LCD Monitor 05 Menu Operations [4] GPI  DHCP LVM-181S - Used to set DHCP.  IP ADDRESS / SUBNET MASK / GATEWAY - Used to set the Network address.  PORT NO - Used to set the port number. The default value is [10262].
  • Page 21  D-UMD(D-8C): Displays the two pairs of 8 characters group when you control the monitors with the protocol and the two pairs of the tally signal which are input provided by TVLogic, using RS-422/485 communication from the TSL protocol(V3.1). or Network.
  • Page 22 - Available characters are lowercase and uppercase [CHARACTER], [BG. COLOR], [USER TALLY], [USER CHAR], alphabet letters, numbers, and special symbols.  DEFAULT: Existing TVLogic operating system(VRT).  USER COLOR: The user is allowed to adjust the color of  UMD CHAR. COLOR (UMD Character Color) each tally.
  • Page 23 Multi Format LCD Monitor 05 Menu Operations [5] MARKER  SAFETY AREA LVM-181S - Used to display the safety area which doesn’t cut the closed caption by Over Scan. - Available sizes are [80%], [85%], [88%], [90%], [93%], [100%], [EBU ACTION 16:9], [EBU GRAPHIC 16:9], [EBU ACTION 14:9], [EBU GRAPHIC 14:9], [EBU ACTION 4:3] and [EBU GRAPHIC 4:3].
  • Page 24 Multi Format LCD Monitor 05 Menu Operations [5] MARKER  USER MARKER V1 LVM-181S - Used to set the position of the first vertical marker line. - Adjustment rage is from [0] to [1080].  USER MARKER V2 - Used to set the position of the second vertical marker line.

  • Page 25: Function Key 25P

    Multi Format LCD Monitor 05 Menu Operations [6] FUNCTION KEY LVM-181S  KEY LED - Used to control the Key lamp on the front of the monitor.  F1 / F2 / F3 KEY MAPPING - The user can select the function for F1, F2, F3 button.

  • Page 26: Waveform & Focus 26P

    Multi Format LCD Monitor 05 Menu Operations [7] WAVEFORM & FOCUS  WAVEFORM TRANS. (Waveform Transparency) LVM-181S - Controls the transparency level of the Waveform/Vector. - Available options are [OPAQUE] and [BLEND].  If the Waveform/Vector overlaps the main OSD even when the option is set to [OPAQUE], it will be automatically changed to [BLEND] mode.
  • Page 27 05 Menu Operations [7] WAVEFORM & FOCUS - In the [Zebra Pattern] mode, ±5% of the selected Y’ Level LVM-181S will be displayed as diagonal lines.  LUMA(Y’) ZONE ADJUST - Used to set the Y’ level to be colored Yellow, Pink and Cyan in [Color Pattern] mode, or to set Y’...
  • Page 28 Multi Format LCD Monitor 05 Menu Operations [7] WAVEFORM & FOCUS  Y MAX LVM-181S - Used to set the maximum luma(Y’) level. - Available range is from [0] to [254]. - Pixels with values exceeding the maximum Y’ level blink in the screen and are displayed in red on the Waveform.
  • Page 29 Multi Format LCD Monitor 05 Menu Operations [8] AUDIO  LEVEL METER SIZE LVM-181S - Used to set the size of the Audio Level Meters. - Available modes are [SMALL], [SMALL TRANSLUCENT], [NORMAL], [NORMAL TRANSLUCENT], [LARGE] and [LARGE TRANSLUCENT]. - In [SMALL], [NORMAL] and [LARGE] modes, the Audio Level Meter appears opaque.
  • Page 30 Multi Format LCD Monitor 05 Menu Operations [9] SYSTEM  ECO MODE TIMER LVM-181S - Used to decrease the brightness of the screen automatically to reduce the power consumption when there is no signal. - When the monitor receives the signal, the brightness of the screen maintains the adjusted level.

  • Page 31: Key Functions

    Multi Format LCD Monitor 06 Key Functions [1] PBP(Picture-by-Picture) / PIP(Picture-in-Picture)  PBP(PIP) Mode Select - The user can select one of the four modes of PBP function by pushing [SOURCE] button on the front of the monitor. In order to avoid the confusion of terms, the PIP mode on the screen is collectively referred to as PBP. ...
  • Page 32 Multi Format LCD Monitor 06 Key Functions [2] USER ASPECT  This function allows the user to adjust the width/height display ratio as the user wants. 1. Access the [USER ASPECT] mode by pushing the [SCAN] button on the front of the monitor. 2.
  • Page 33 Multi Format LCD Monitor 06 Key Functions [3] WAVEFORM / VECTOR SCOPE  WAVEFORM Y  Vector Scope - Displays the Luma(Y’) component of the input signal - Displays the color components ‘B-Y’ and ‘R-Y’ of the into input signals onto the X-Y axis. waveform.
  • Page 34 Multi Format LCD Monitor 06 Key Functions [4] LINE SELECT (WAVEFORM / VECTOR SCOPE)  Used to select a specific horizontal line for WAVEFORM and VECTOR SCOPE. - This function works when the [LINE WAVEFORM] is activated. - To activate this function, go to [Waveform & Focus] > [WAVE FORM DISPLAY] and select [WAVEFORM] or other modes.
  • Page 35 Multi Format LCD Monitor 06 Key Functions [5] LUMA (Y’) ZONE CHECK  COLOR PATTERN TYPE  ZEBRA PATTERN TYPE - Displays the pixels with the designated Luma(Y’) - Displays the pixels with the designated Luma(Y’) levels levels of the input image in colors. Pixels whose Y’ of the input image in zebra pattern.
  • Page 36 Multi Format LCD Monitor 06 Key Functions [6] FOCUS ASSIST  Focus Assist function assigns a color on the pixels of the shape or boundary of the image, which helps the user easily see which part of the image is in focus or out of focus. - With this function, the user can easily differentiate the focused area from the out-focused area especially when shooting with a shallow depth of field.
  • Page 37 Multi Format LCD Monitor 06 Key Functions [7] RANGE ERROR  Pixels with Y’ or C’ levels exceeding the designated levels adjusted in Y MAX, Y MIN, C MAX and C MIN menu shall blink. - After the input signal’s Luma(Y’) and chroma information(C’) are analyzed, if the input signal exceeds the designated maximum value or it is below the minimum value, the pixels shall blink.
  • Page 38 Multi Format LCD Monitor 06 Key Functions [8] FIRMWARE UPGRADE  The USB thumb drive which contains the F/W file is necessary for Firmware Upgrade.  Select the S/W UPGRADE in the SYSTEM menu. 1. Connect the USB thumb drive to the USB Slot on the front of the monitor. 2.

  • Page 39: Video Support Resolution

    Multi Format LCD Monitor 07 VIDEO SUPPORT RESOLUTION [1] SDI MODE Input Signal Signal Format (SD SDI) Interface SD SDI 720x487(59.94i) YCbCr 4:2:2 10bit Single Link 720x576(50i) Input Signal Signal Format (HD SDI) Interface 1920x1080(23.98/24/25/29.97/30p) HD SDI (50/59.94/60i) (24/25/29.97/30psf) YCbCr 4:2:2 10bit Single Link 1280x720(50/59.94/60P) Input Signal...
  • Page 40 Multi Format LCD Monitor 07 VIDEO SUPPORT RESOLUTION [3] DVI-ANALOG MODE Resolution Frequency 640 x 480 60Hz, 75Hz 720 x 400 70Hz 800 x 600 60Hz, 72Hz, 75Hz 1024 x 768 60Hz, 70Hz, 75Hz 1366 x 768 60Hz / 75Hz [4] DVI-DIGITAL GRAPHIC MODE Resolution Frequency...

  • Page 41: Product Specifications

    Multi Format LCD Monitor 08 PRODUCT SPECIFICATIONS LVM-181S Size 18.5" Resolution 1920 x 1080 (16:9) Pixel Pitch 213(per one triad) x 213 [um] Support Color 16.7M colors (True 8 Bit) Luminance of white 500cd/m2 (Typical) Contrast Ratio 1000 (Typical) Active Area 408.96(H) x 230.04 (V) [mm]...
  • Page 42 FOR MORE INFORMATION PLEASE VISIT http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan Digital 1-ro, Geumcheon-gu, Seoul, 08590, Korea TEL: 070-8668-6611, FAX: 02-6123-3201, E-mail: sales@tvlogic.co.kr...
