8. CIRCUIT OPERATION

<GPI Remote>

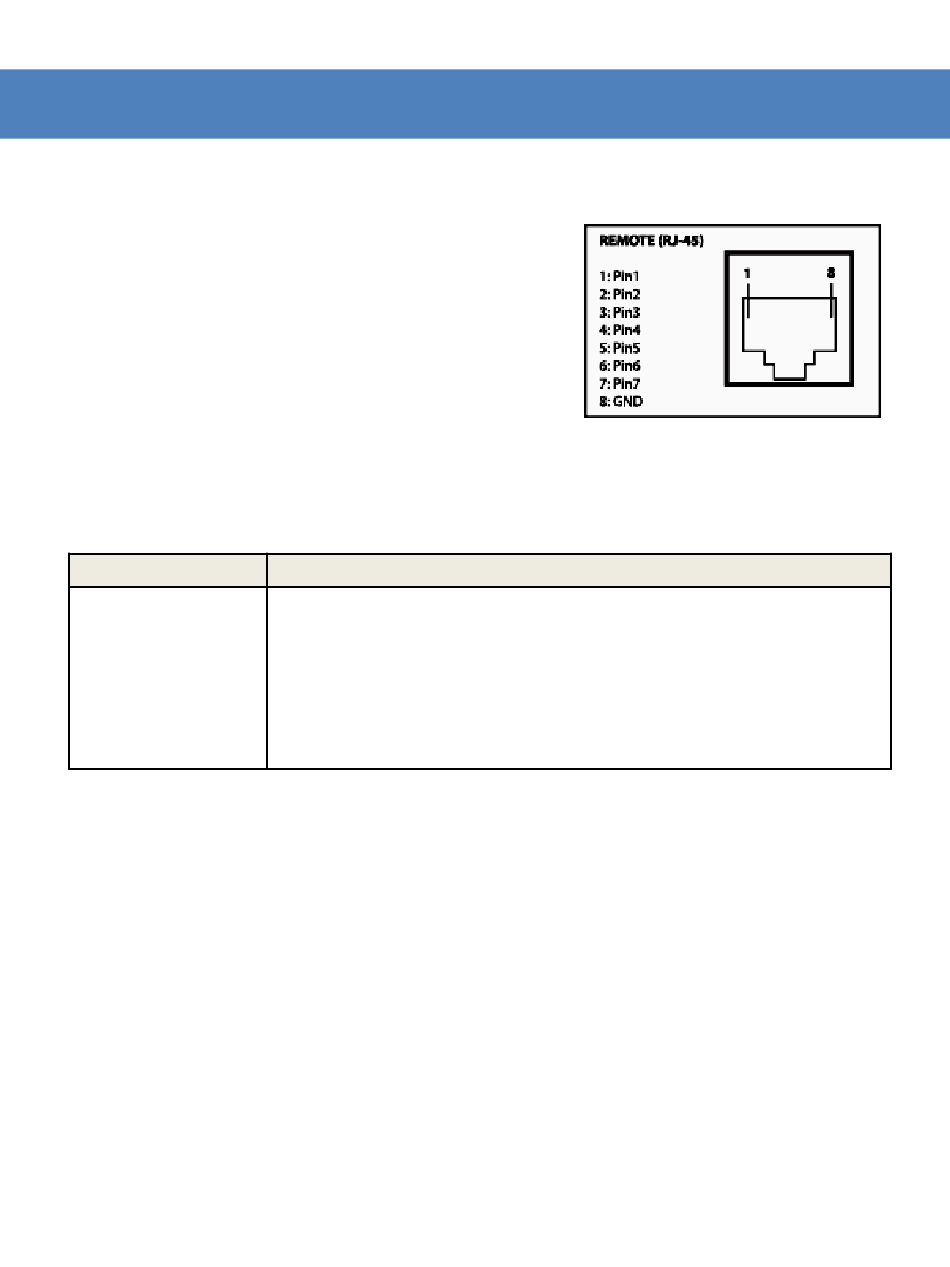

- The location of each pin is shown on the right picture.
- The selectable functions are as follows
Menu Classification
PIN 1~6
- PIN 7 is POWER ON/OFF use only, PIN 8 is GND.
NONE, ANALOG CHANNEL, DIGITAL A CHANNEL, DIGITAL B CHANNEL,
PBP CHANNEL, TALLY R, TALLY G, TALLY Y, UNDER SCAN, 1:1 SCAN,
ASPECT, H/V DELAY, BLUE ONLY, MONO, 16:9 MARKER, 4:3 MARKER,
4:3 ON AIR MARKER, 15:9 MARKER, 14:9 MARKER, 13:9 MARKER,
1.85:1 MARKER, 2.35:1 MARKER, 1.85:1&4:3 MARKER, CENTER MARKER,
SAFETY AREA 80%, SAFETY AREA 85%, SAFETY AREA 88%,
SAFETY AREA 90%, SAFETY AREA 93%, SAFETY AREA 100%, 708,
608(LINE 21), 608(ANC), DYNAMIC-UMD
<LVM-074W>
Settable Values
