8.6 AT Power Mode

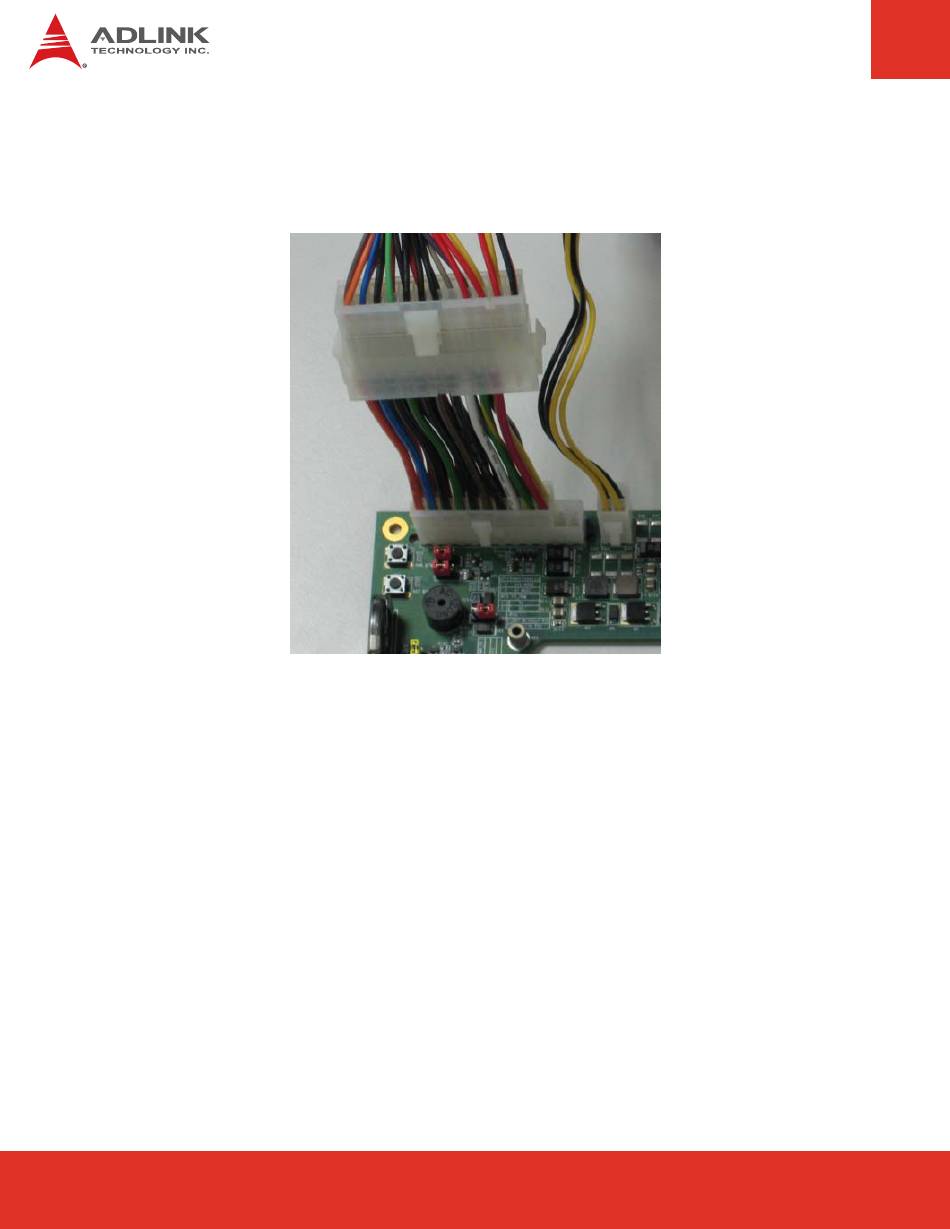

To operate the system in AT Mode with an ATX power supply, use the AT mode PSU converter
cable (no 5Vsb) to connect the ATX 20/24-pin power connector to the carrier board as shown.
Set the ATX/AT Mode jumper JP1 to AT Mode as described in 6.24 Power Jumper Settings.
Page 42
Express-BASE User's Manual
