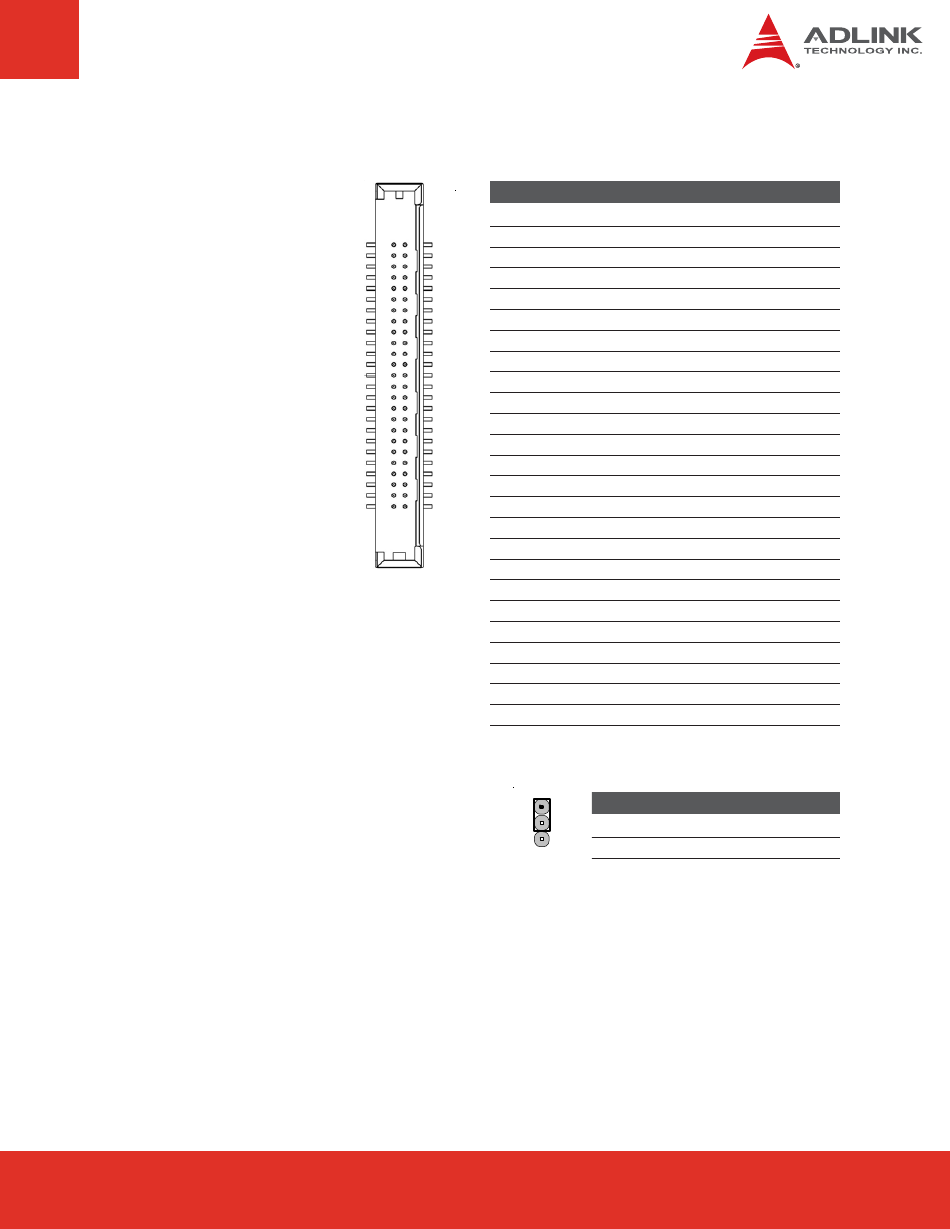

CNZ2: CF Socket
JPZ4: CF Master/Slave Setting
The default setting is CF slot (CNZ2) Master
and IDE Slave (CN35).
Express-BASE User's Manual
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
1
31
33
35
37
39
41
43
45
47
49
1
2
3
Signal Pin Signal
GND 2 IDE_D3
IDE_D4 4 IDE_D5
IDE_D6 6 IDE_D7
IDE_CS1J 8 GND
GND 10 GND
GND 12 GND
5VCC 14 GND
GND 16 GND
GND 18 IDE_A2
IDE_A1 20 IDE_A0
IDE_D0 22 IDE_D1
IDE_D2 24 IOIS16J
GND 26 GND
IDE_D11 28 IDE_D12
IDE_D13 30 IDE_D14
IDE_D15 32 IDE_CS3J
GND 34 IDE_IORJ
IDE_IOWJ 36 CFWE
IDE_IRQ 38 5VCC
CFSCSEL 40 NC
PLTRSTJ 42 IDE_IORDY
IDE_REQJ 44 IDE_ACKJ
IDE_ACTJ 46 IDE_66DECT
IDE_D8 48 IDE_D9
IDE_D10 50 GND
Jumper Status
1-2 CF Master
2-3 CF Slave
<<<<
