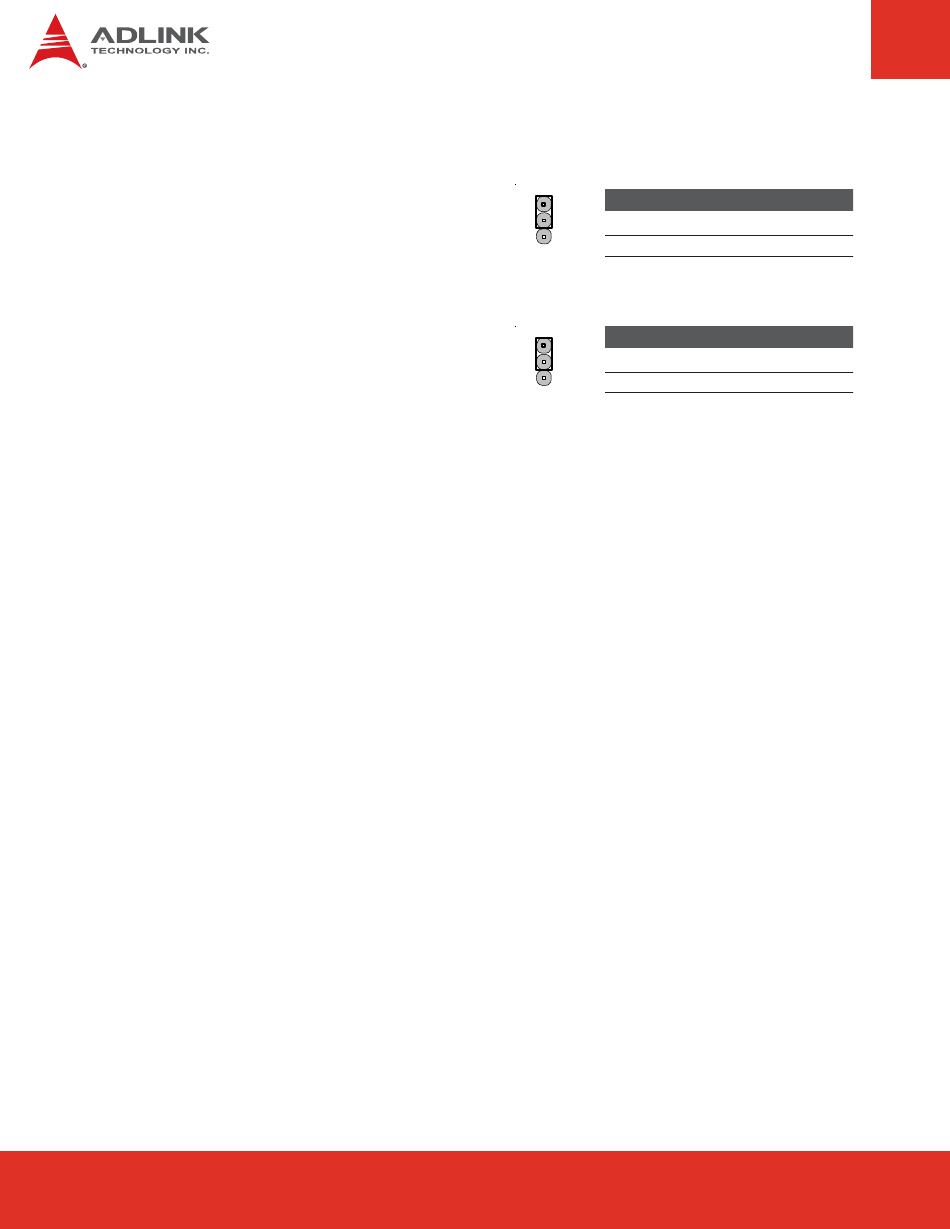

JPY11: Ethernet Mode
Configure the jumper to "10/100/1000" for
modules with Gigabit Ethernet, to "10/100" for
modules with Fast Ethernet
JPA1: Super I/O
Enables/disables the Super IO. By default, the
Express-BASE enables the onboard W83627HG-
AW Super I/O. To disable the Onboard Super I/O,
short pins 2-3 of Jumper JPA1.
JPY7, JPY8: Reserved
Page 36
Jumper
1
2
1-2
3
2-3
Jumper
1
1-2
2
2-3
3
NOTE: <<<< indicates default setting
Express-BASE User's Manual
Status
10/100/1000 <<<<
10/100
Status
Enable <<<<
Disable
