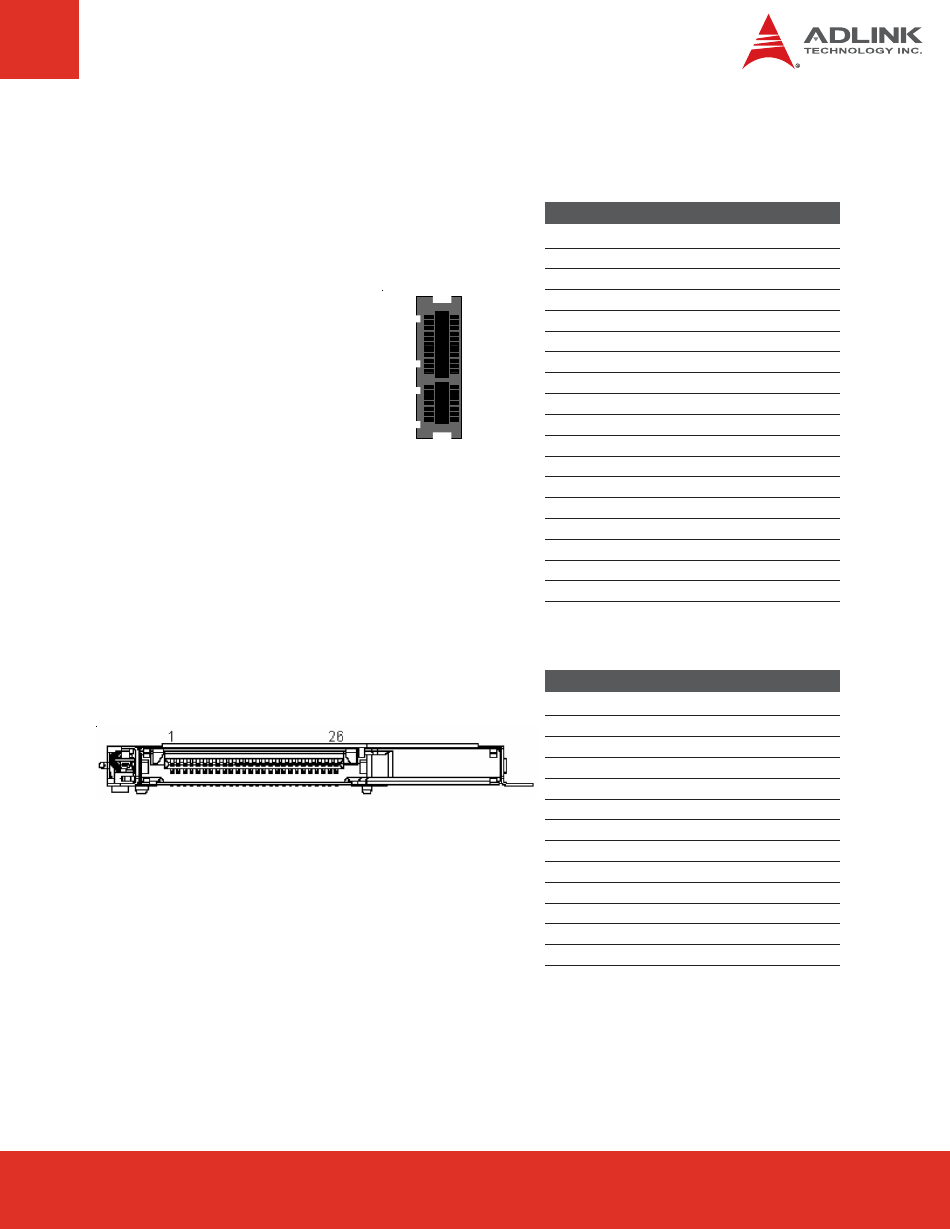

6.5 PCI Express and PCI Express Graphic (PEG) Slots

PCI Express x1:
PCIE1
PCIE2
PCIE4
PCIE5
PCIE6
CN44: ExpressCard (PCIE3, USB7)
Express-BASE User's Manual
Pin
B1
B2
B3
B4
B1 A1
B5
B6
B7
B11 A11
B8
B12 A12
B9
B18 A18
B10
B11
B12
B13
B14
B15
B16
B17
B18
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
Signal Pin Signal
+ 12V A1 NC
+ 12V A2 + 12V
NC A3 + 12V
GND A4 GND
SMB_CK A5 TCK
SMB_DAT A6 TDI
GND A7 NC
+ 3.3V A8 TMS
TRST# A9 + 3.3V
+3.3VSB A10 + 3.3V
WAKE# A11 PERST#
NC A12 GND
GND A13 REFCLK+
PETp0 A14 REFCLK-
PETn0 A15 GND
GND A16 PERp0
NC A17 PERn0
GND A18 GND
Signal Pin Signal
GND 14 +3.3V
USBD- 15 +3.3V
USBD+ 16 CLKREQ#
CPUSB# 17 CPPE#
RESERVED 18 REFCLK-
RESERVED 19 REFCLK+
SMB_CK 20 GND
SMB_DAT 21 PERn0
+1.5V 22 PERp0
+1.5V 23 GND
WAKE# 24 PETn0
+3.3VSB 25 PETp0
PERST# 26 GND
