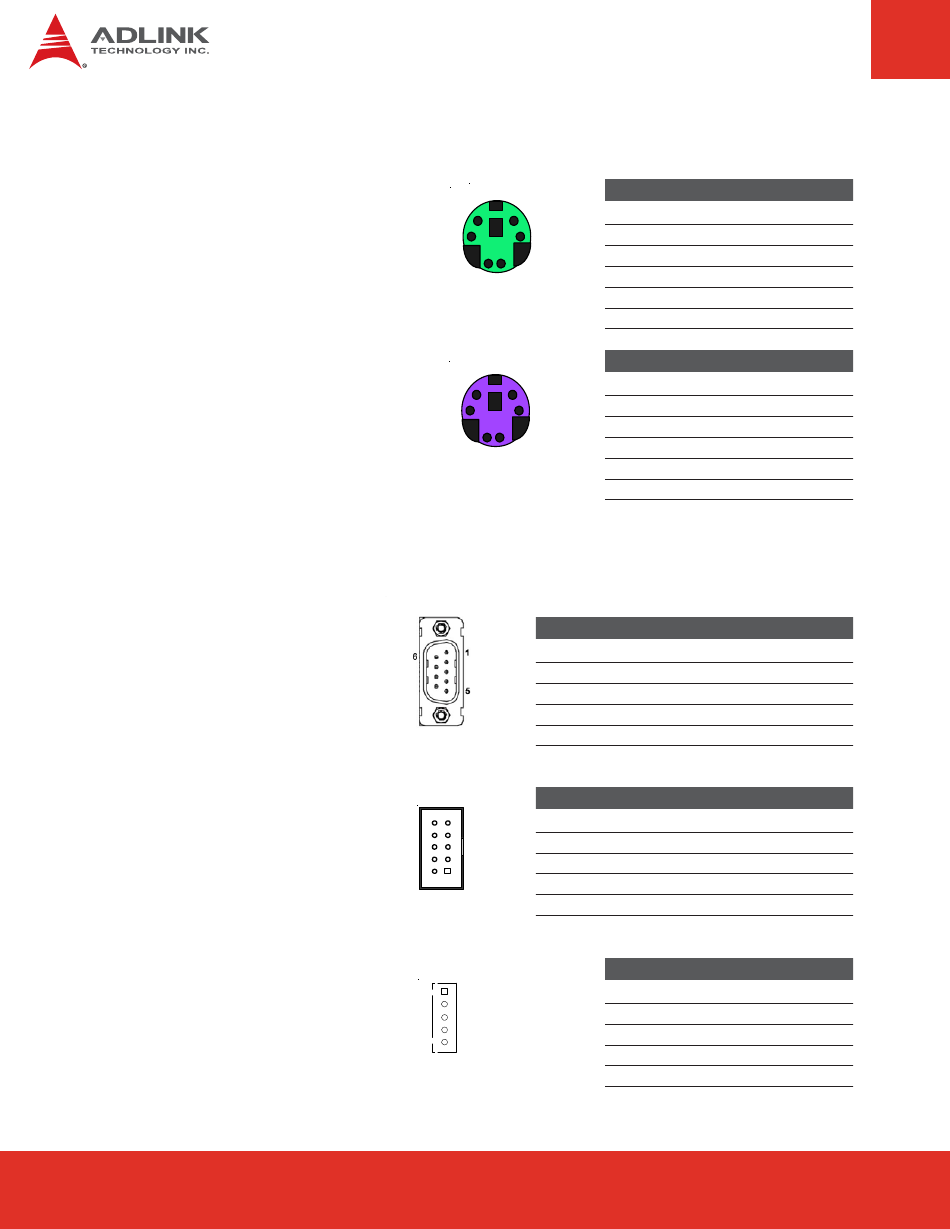

6.13 Keyboard & Mouse
CN4: Mouse (top)
Keyboard (bottom)

6.14 Serial and IrDA Ports

CN3: COM1 (DB9)
CN18: COM2 (header)
CN24: IrDA Connector
Page 26
6 5
4 3
2 1
6 5
4 3
2 1
Pin Signal
6 DSR
7 RTS#
8 CTS#
9 RI#
Pin Signal
1 DCD#
5
2 RXD
3 TXD
1
4 DTR#
5 GND
1
Pin Signal
1 MSDAT
2 NC
3 GND
4 KB5V
5 MSCLK
6 NC
Pin Signal
1 KBDAT
2 NC
3 GND
4 KB5V
5 KBCLK
6 NC
Pin Signal
1 DCD#
2 RXD
3 TXD
4 DTR#
5 GND
Pin Signal
6 DSR
7 RTS#
8 CTS#
9 RI#
10 NC
Pin Signal
1 +5V
2 No connect
3 IrRXD
4 Ground
5 IrTXD
