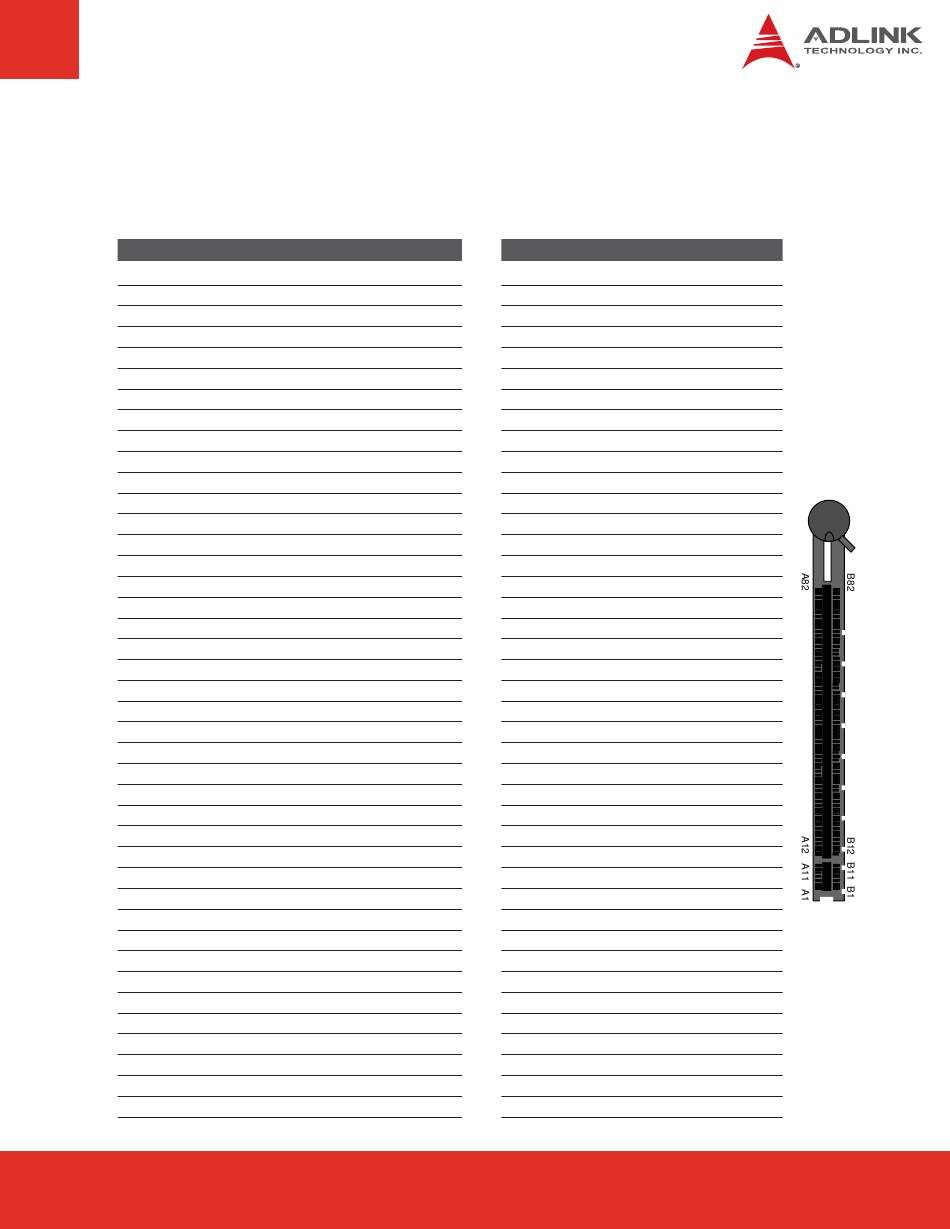

PCIE7: SDVO mode
See the JP6 jumper description for PCI Express x16 mode and SDVO mode settings on p. 35.
Pin Signal
B1 + 12V
B2 + 12V
B3 NC
B4 GND
B5 SMB_CK
B6 SMB_DAT
B7 GND
B8 + 3.3V
B9 TRST#
B10 +3.3VSB
B11 WAKE#
B12 NC
B13 GND
B14 SDVOB_RED+
B15 SDVOB_RED-
B16 GND
B17 SDVO_CLK
B18 GND
B19 SDVOB_GRN+
B20 SDVOB_GRN-
B21 GND
B22 GND
B23 SDVOB_BLU+
B24 SDVOB_BLU-
B25 GND
B26 GND
B27 SDVOB_CK+
B28 SDVOB_CK-
B29 GND
B30 NC
B31 SDVO_DAT
B32 GND
B33 SDVOC_RED+
B34 SDVOC_RED-
B35 GND
B36 GND
B37 SDVOC_GRN+
B38 SDVOC_GRN-
B39 GND
B40 GND
B41 SDVOC_BLU+
Express-BASE User's Manual
Pin Signal
A1 NC
A2 + 12V
A3 + 12V
A4 GND
A5 TCK
A6 TDI
A7 NC
A8 TMS
A9 + 3.3V
A10 + 3.3V
A11 PERST#
A12 GND
A13 REFCLK+
A14 REFCLK-
A15 GND
A16 SDVO_TVCLKIN+
A17 SDVO_TVCLKIN-
A18 GND
A19 NC
A20 GND
A21 SDVOB_INT+
A22 SDVOB_INT-
A23 GND
A24 GND
A25 SDVO_FLDSTALL+
A26 SDVO_FLDSTALL-
A27 GND
A28 GND
A29 RSVD
A30 RSVD
A31 GND
A32 NC
A33 NC
A34 GND
A35 RSVD
A36 RSVD
A37 GND
A38 GND
A39 RSVD
A40 RSVD
A41 GND
Pin Signal Pin
B42 SDVOC_BLU- A42
B43 GND A43
B44 GND A44
B45 SDVOC_CK+ A45
B46 SDVOC_CK- A46
B47 GND A47
B48 NC A48
B49 GND A49
B50 RSVD A50
B51 RSVD A51
B52 GND A52
B53 GND A53
B54 RSVD A54
B55 RSVD A55
B56 GND A56
B57 GND A57
B58 RSVD A58
B59 RSVD A59
B60 GND A60
B61 GND A61
B62 RSVD A62
B63 RSVD A63
B64 GND A64
B65 GND A65
B66 RSVD A66
B67 RSVD A67
B68 GND A68
B69 GND A69
B70 RSVD A70
B71 RSVD A71
B72 GND A72
B73 GND A73
B74 RSVD A74
B75 RSVD A75
B76 GND A76
B77 GND A77
B78 RSVD A78
B79 RSVD A79
B80 GND A80
B81 NC A81
B82 NC A82
Signal
GND
RSVD
RSVD
GND
GND
RSVD
RSVD
GND
NC
GND
RSVD
RSVD
GND
GND
RSVD
RSVD
GND
GND
RSVD
RSVD
GND
GND
RSVD
RSVD
GND
GND
RSVD
RSVD
GND
GND
RSVD
RSVD
GND
GND
RSVD
RSVD
GND
GND
RSVD
RSVD
GND
