I2C EEPROM Address Selection

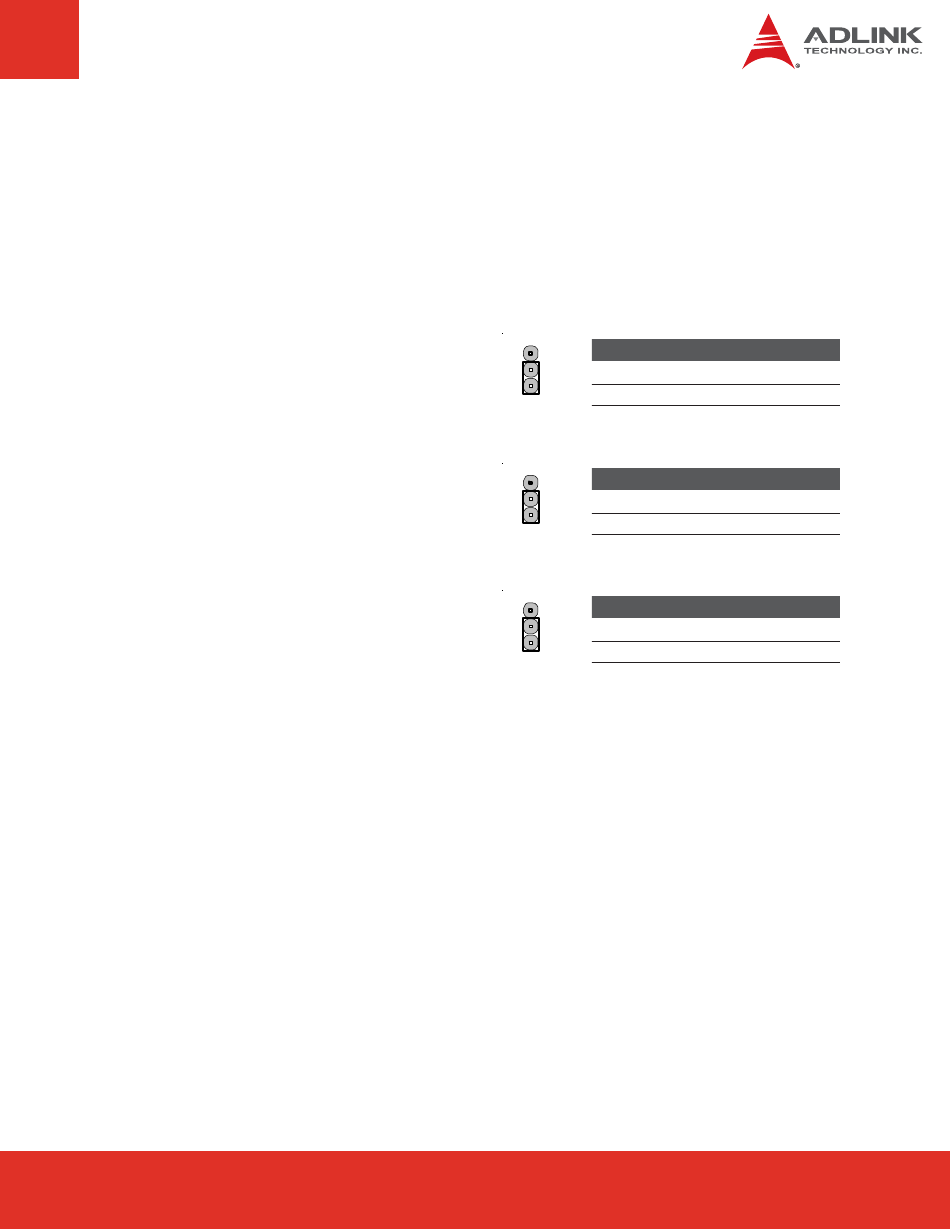

JPY12 to JPY14 configure the address of the A0, A1 and A2 bits of the I2C EEPROM
JPY12: I2C EEPROM A0
JPY13: I2C EEPROM A1
JPY14: I2C EEPROM A2
Express-BASE User's Manual
Jumper
1
2
1-2
3
2-3
Jumper
1
2
1-2
3
2-3
Jumper
1
2
1-2
3
2-3
NOTE: <<<< indicates default setting
Status
A0_HIGH "1"
A0_LOW "0" <<<<
Status
A1_HIGH "1"
A1_LOW "0" <<<<
Status
A2_HIGH "1"
A2_LOW "0" <<<<
