6.11 VGA, LVDS

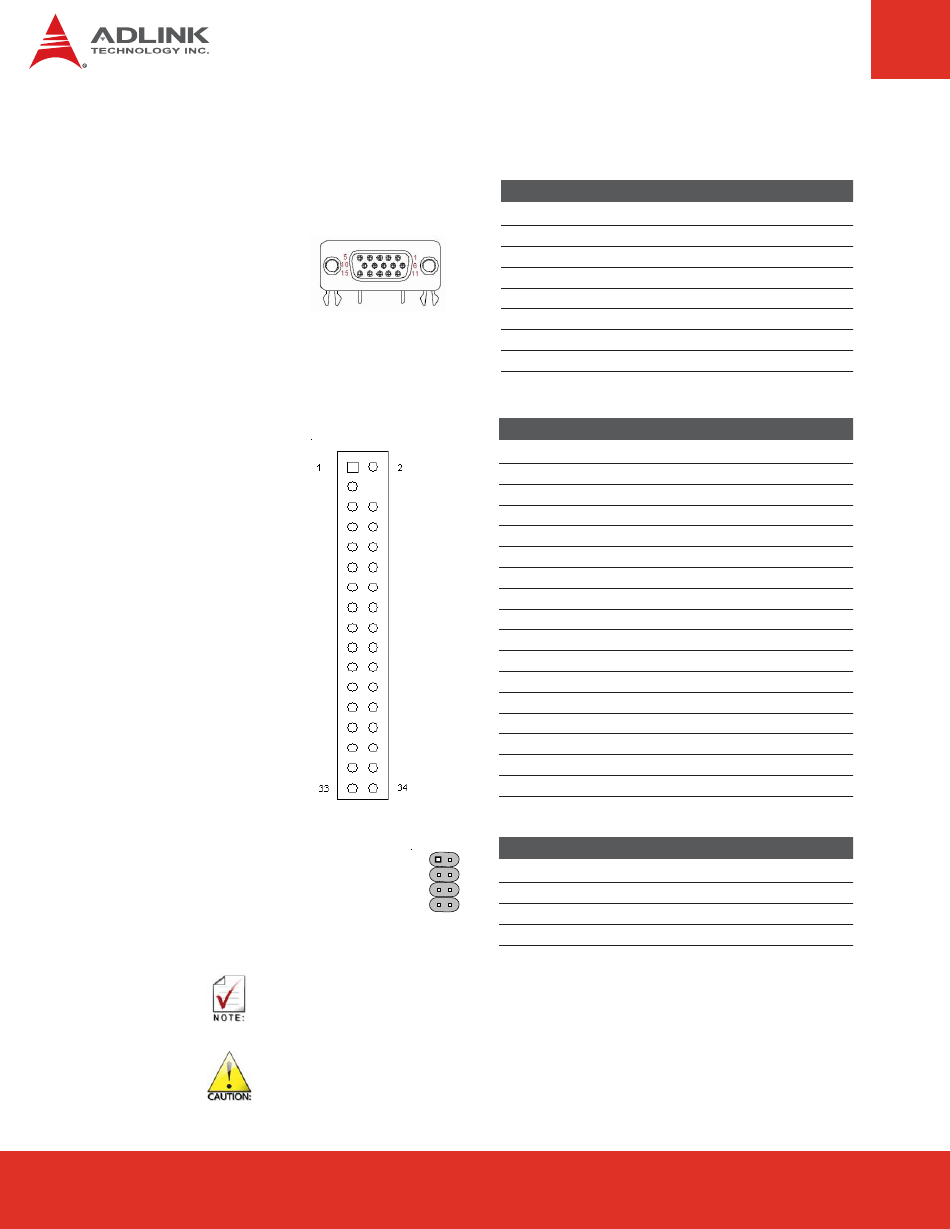

CN1: VGA
CNY5: LVDS Flat Panel Connector
CNY8: Backlight Control
See 6.12 LVDS Jumper Settings for Panel Power Voltage (JP8), Backlight Power Voltage
(JP7) and other LVDS jumper settings.
To avoid damage to the display panel, be sure to set the Panel Power Voltage (JP8) and
Backlight Power Voltage (JP7) to the correct values for your display.
Page 24
Pin Signal
1 Red
3 Blue
5 GND
7 GND
9 NC
11 DDC Power
13 HSYNC
15 DDC2B clock
Pin Signal
1 LVDS_I2C_DAT
3 N.C
5 GND
7 LVDS_A0+
9 LVDS_A1-
11 LVDS_BKLT_EN
13 LVDS_A2-
15 LVDS_A_CK-
17 N.C
19 LVDS_A3-
21 LVDS_B0-
23 GND
25 LVDS_B1+
27 LVDS_B2-
29 GND
31 LVDS_B_CK-
33 LVDS_B3+
Pin Signal
1 2
1 GND
3 Backlight CTRL
5 Backlight Enable
7 NC
Pin Signal
2 Green
4 NC
6 GND
8 GND
10 GND
12 DDC2B Data
14 Vsync
Pin Signal
2 LVDS_I2C_CK
4 N.C
6 LVDS_A0-
8 LVDS_VDD_EN
10 LVDS_A1+
12 LVDS_A2+
14 N.C
16 LVDS_A_CK+
18 LVDS_A3+
20 GND
22 LVDS_B0+
24 LVDS_B1-
26 GND
28 LVDS_B2+
30 LVDS_B_CK+
32 N.C
34 LVDS_B3-
Pin Signal
2 Panel PWR
4 GND
6 GND
8 Backlight PWR
