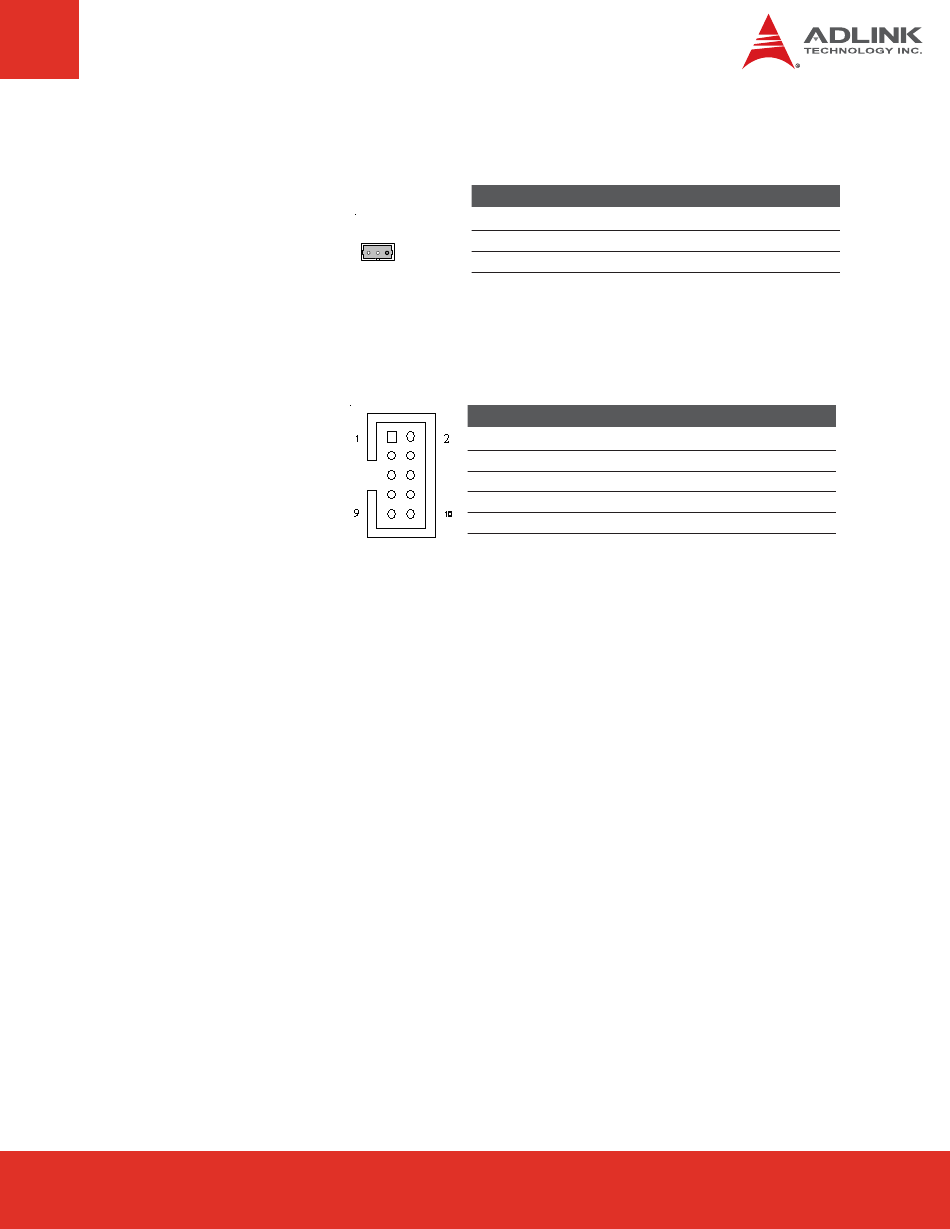

CN43: 5 Volt FAN Power
CNY9: Smart Battery
Connects to Smart Battery
module
Express-BASE User's Manual
Pin
1
3 2 1
2
3
Pin Signal
1 I2C_CK
2 I2C_DAT
3 PWRBTN#
4 BATLOW#
5 PS_ON#
Signal
5 V
GND
FAN Tach output
Pin Signal
6 SUS_S45#
7 +12V
8 +5VSB
9 SUS_STAT#
10 GND
