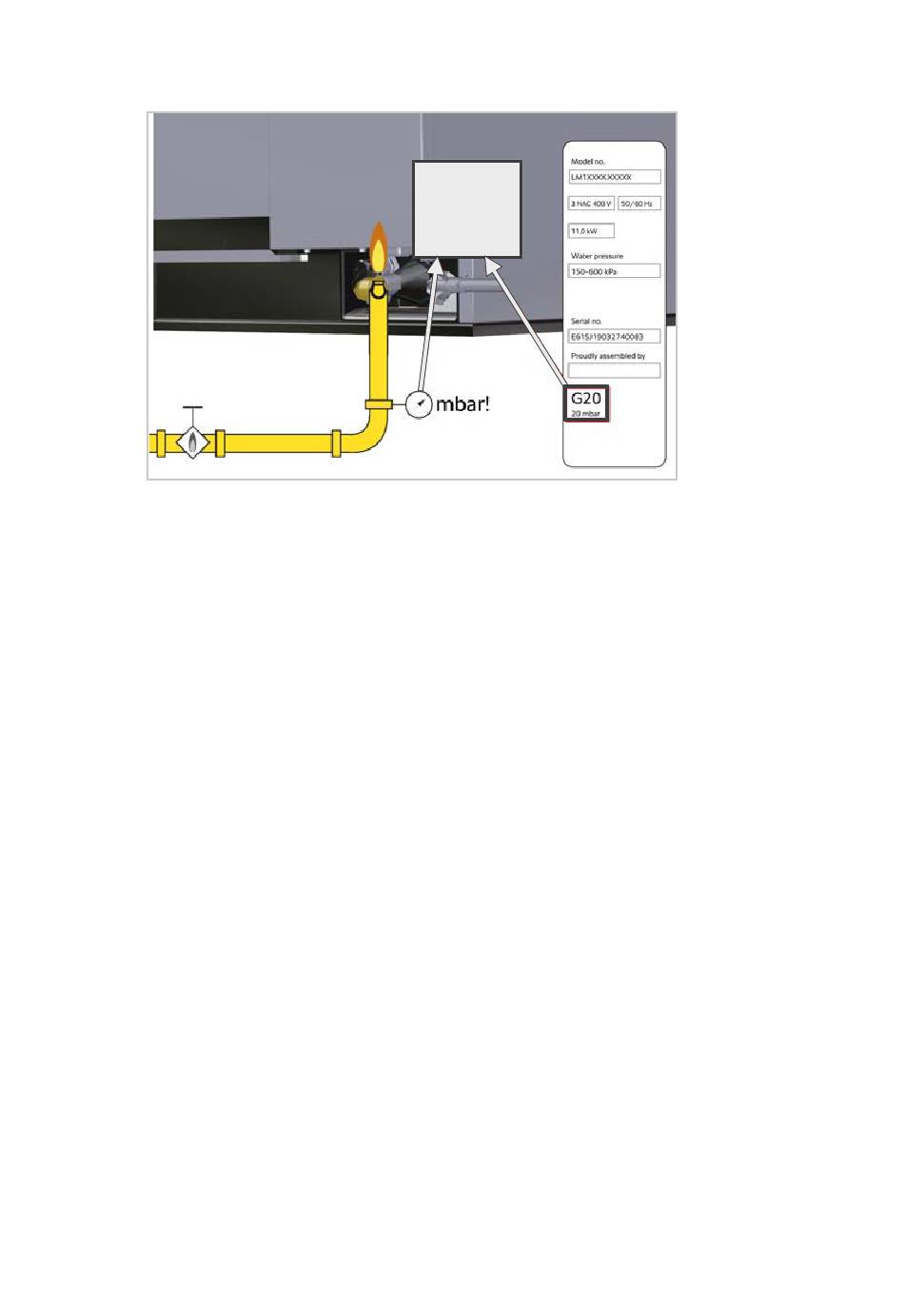

The gas type and the dynamic connection pressure set in the unit must
n
match the specifications on the type plate.
If the line pressure deviates from the connection flow pressure of the unit,
n
contact your gas supply company.
Observe the regulations of the local gas supply company.
n
Requirements for gas supply and gas lines
The flue gas analysis may only be carried out by a technician authorized by
n
the manufacturer. The flue gas analysis must be carried out before commis-
sioning.
The gas connection may only be carried out by a locally approved gas in-
n
staller.
The gas connection line must be designed for the nominal heat load speci-
n
fied on the type plate.
The gas supply and gas distribution in the unit must be checked for leaks us-
n
ing a suitable gas leak detector.
The cross-section of the gas line must be designed for the maximum con-
n
nected power of all consumers, at least ¾ inch for a single unit, line size
must increase with increased number of units on same line.
A gas shut-off valve must be installed upstream of each unit.
n
All on-site connection parts must be tested in accordance with DIN-DVGW
n
(the local regulations).
The hose for the gas connection must not be longer than 2.0 m [78 3/4
inch].
The gas line can be connected to a gas socket.
n
A connection with the appropriate counterpart to the ¾ inch internal thread
n
(RP thread) is required to connect the gas line.
The unit must be secured against slipping (safety cable restraint)
n
