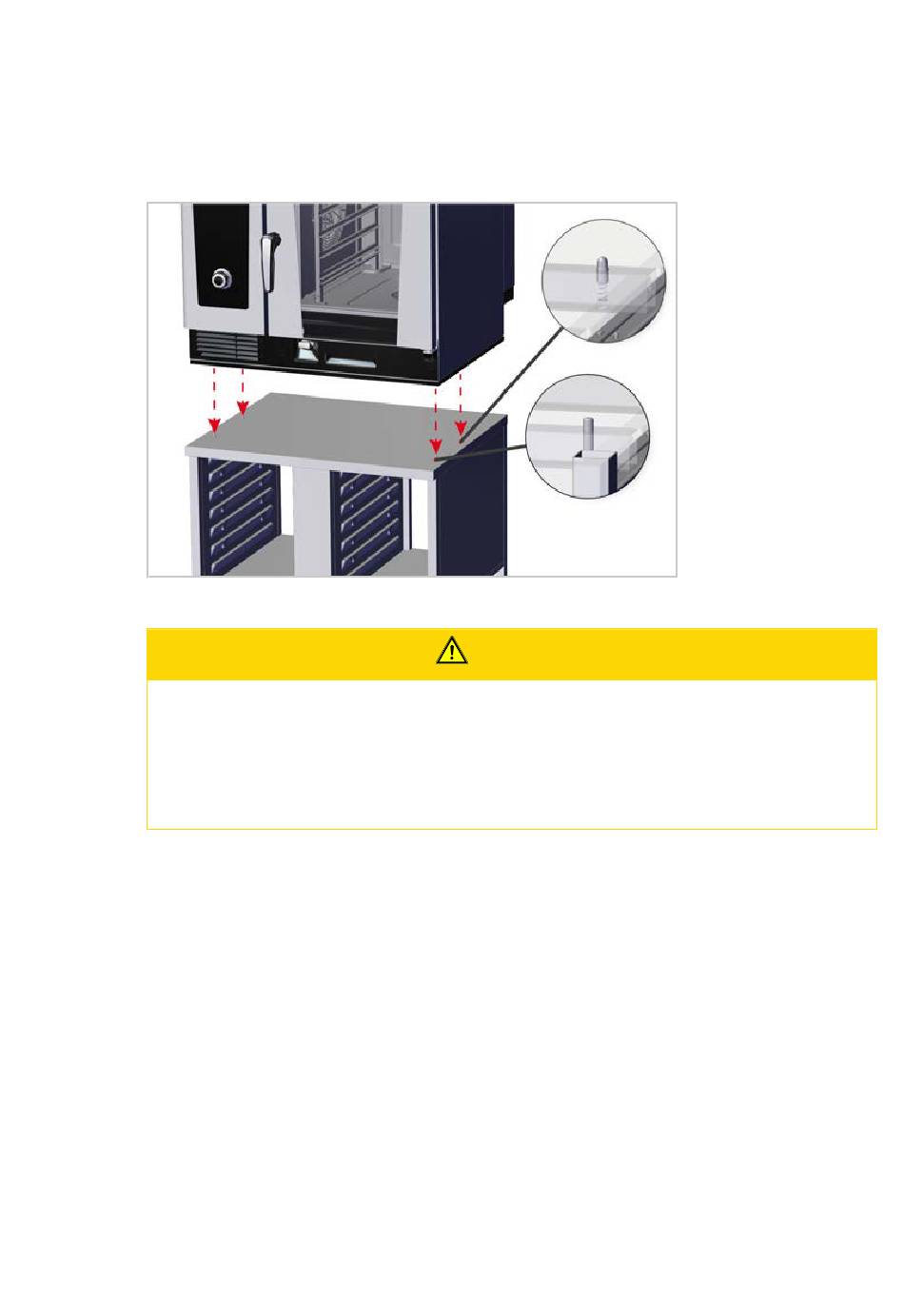

1. Lift the unit on to the stand.
2. Position the unit using the spring pins.
3. Screw the unit to the stand using two screws. The illustration shows
schematically the position of the screwed-in screws in the stand. The
screws are fastened with nuts welded into the unit.

5.2.3 Align and fasten the stand horizontally

Slipping of the unit at the installation position
Risk of crushing if the unit slips.
Connections and lines may be damaged in certain units.
Secure the unit using the fixing set.
n
Non-mobile stand
Align stand horizontally
a
The unit is installed on the stand and is on the intended installation surface.
1. Place 2 spirit levels on the unit: 1 spirit level along the right edge of the unit
and 1 spirit level along the front edge.
2. To align the unit horizontally on the right, turn the stand feet on the front
right and rear right.
3. To align the unit horizontally on the left, turn the stand feet on the front left
and rear left.
Fix stand
Secure the stand against slipping using the fixing set.
