Rational iCombi Pro Original Installation Instructions page 54

6 | Electrical connection

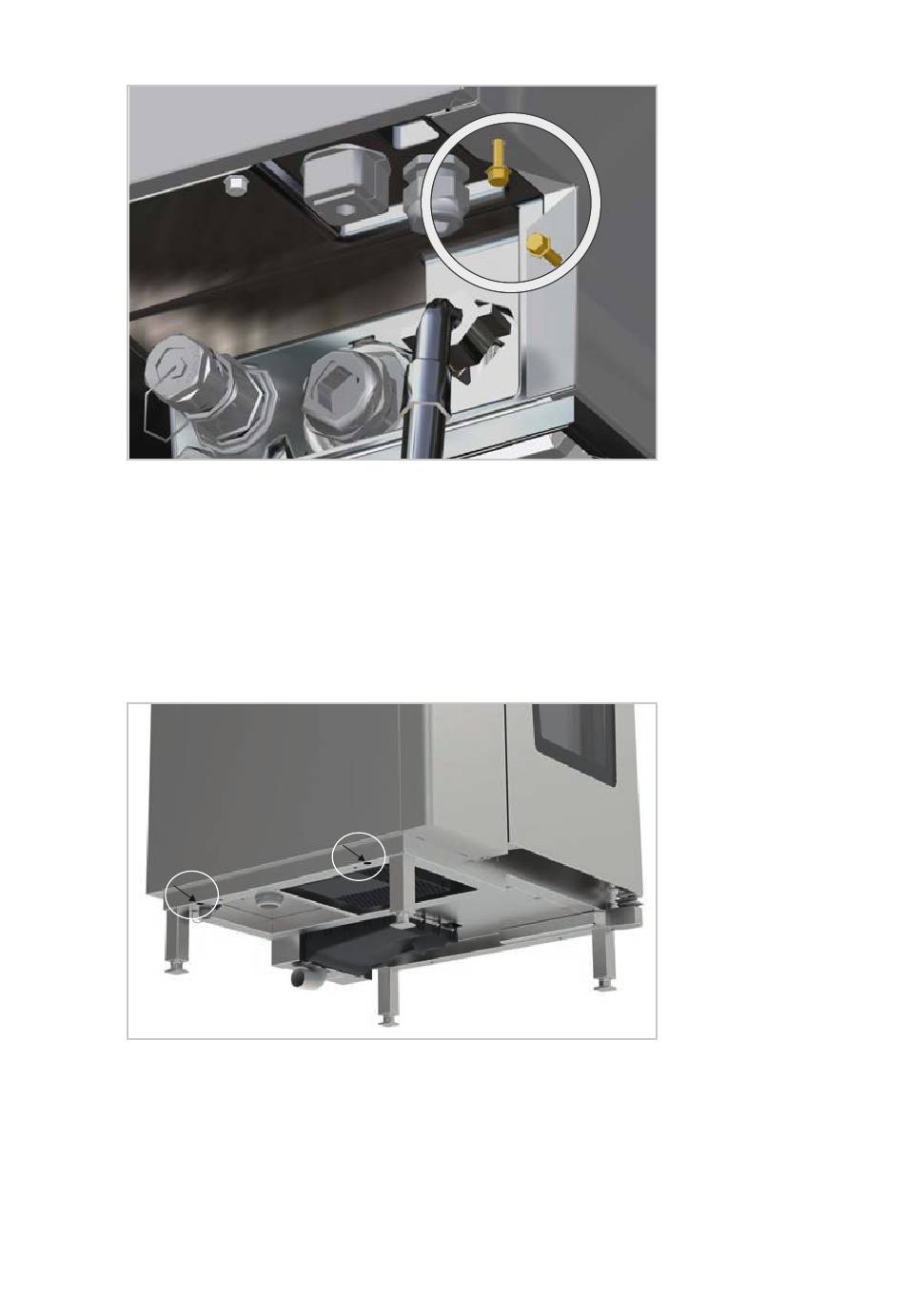

3. Loosen two screws in the recess of the rear side wall of the unit.
4. Pull the left side wall downwards away from the unit.
5. Remove the side wall.
>>
The electrical compartment is open.
Unit size 20 half size GN, 20 full size GN
1. Loosen two screws on the underside of the side panel in recess of frame.
>
The openings to the screws are closed with a cover. Remove the cover
carefully to access the screws.
2. Lift the left side wall from below and pull the side wall downwards away
from the unit.
54 / 100 80.06.083_iCombiPro-iCombiClassic_IM_en-US
