Transport with transport aid without protection
Transport the unit on the pallet for as long as possible. Do not transport the
unit with a transport aid or similar transport equipment without protection.
Use a wooden board for protection, for example.
x

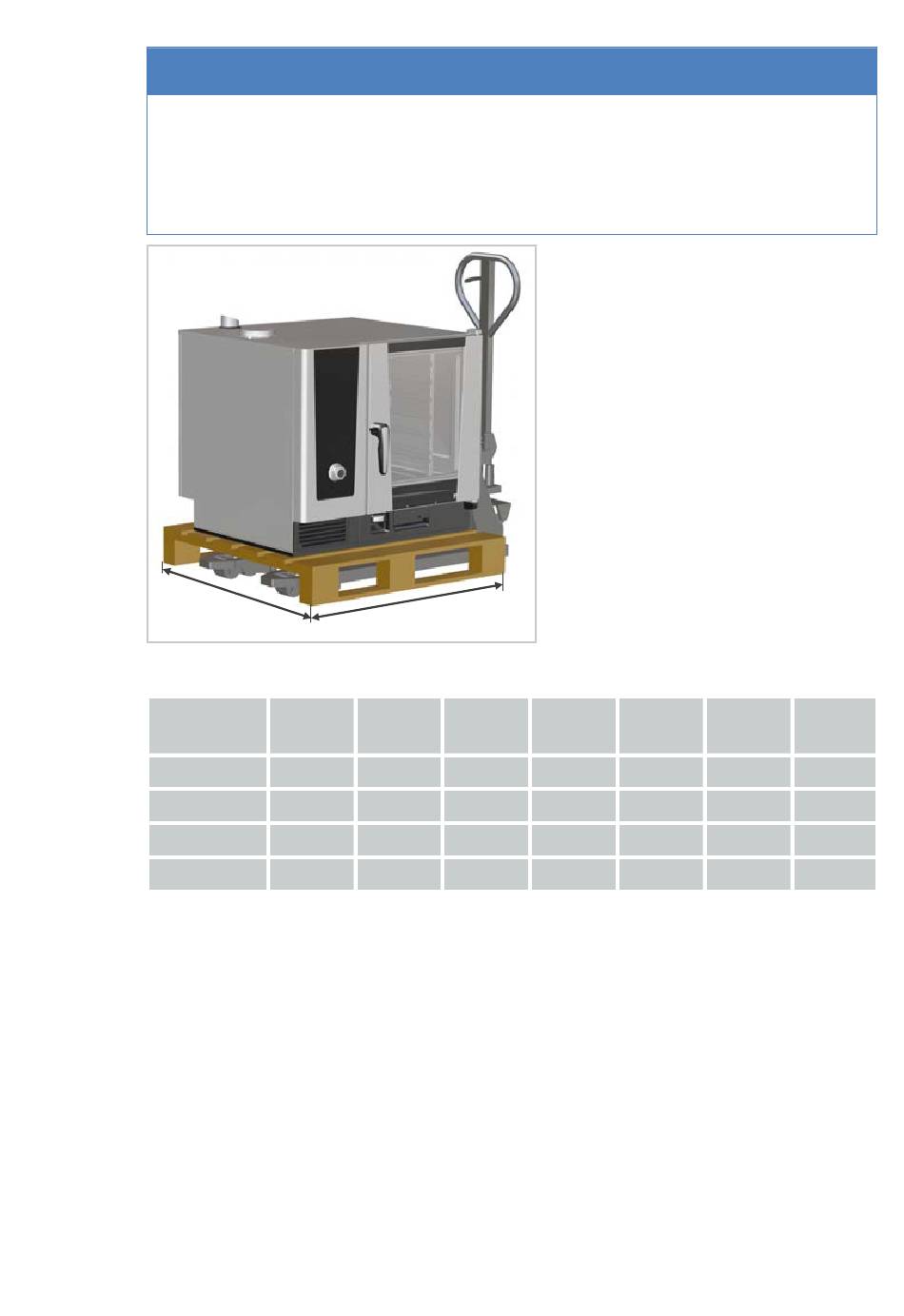

Required door width with transport pallet
Unit size
x (mm)
x (inch)
y (mm)
Y (inch)
Transport tabletop units with transport pallet
a
The packaging material is removed.
a
The unit is on the transport pallet.
a
The unit rests on the unit base frame.
1. Transport the unit to the installation site with the transport pallet.
2. Lift the unit off the transport pallet on the lifting points and set it down on
the designated installation surface.
>>
The unit is on the designated installation surface and is ready for setup and
installation.
Transport floor units with transport pallet
Floor units are delivered on a special, divisible (2 piece) transport pallet.
80.06.083_iCombiPro-iCombiClassic_IM_en-US
y
XS 6 half
size
880 945
34 5/8 37 1/4
930 935
36 5/8 36 3/4
NOTE
6 full 10 half
size size
1150 945
45 1/4 37 1/4
1170 935
46 1/8 36 3/4
4 | Transport
10 full 20 half
size size
1150 989
45 1/4 38 7/8
1170 969
46 1/8 38 1/8
