Use the short bars for the unit sizes 6 half size and 10 half size.
>
Use the long bars for the unit sizes 6 full size and 10 full size.

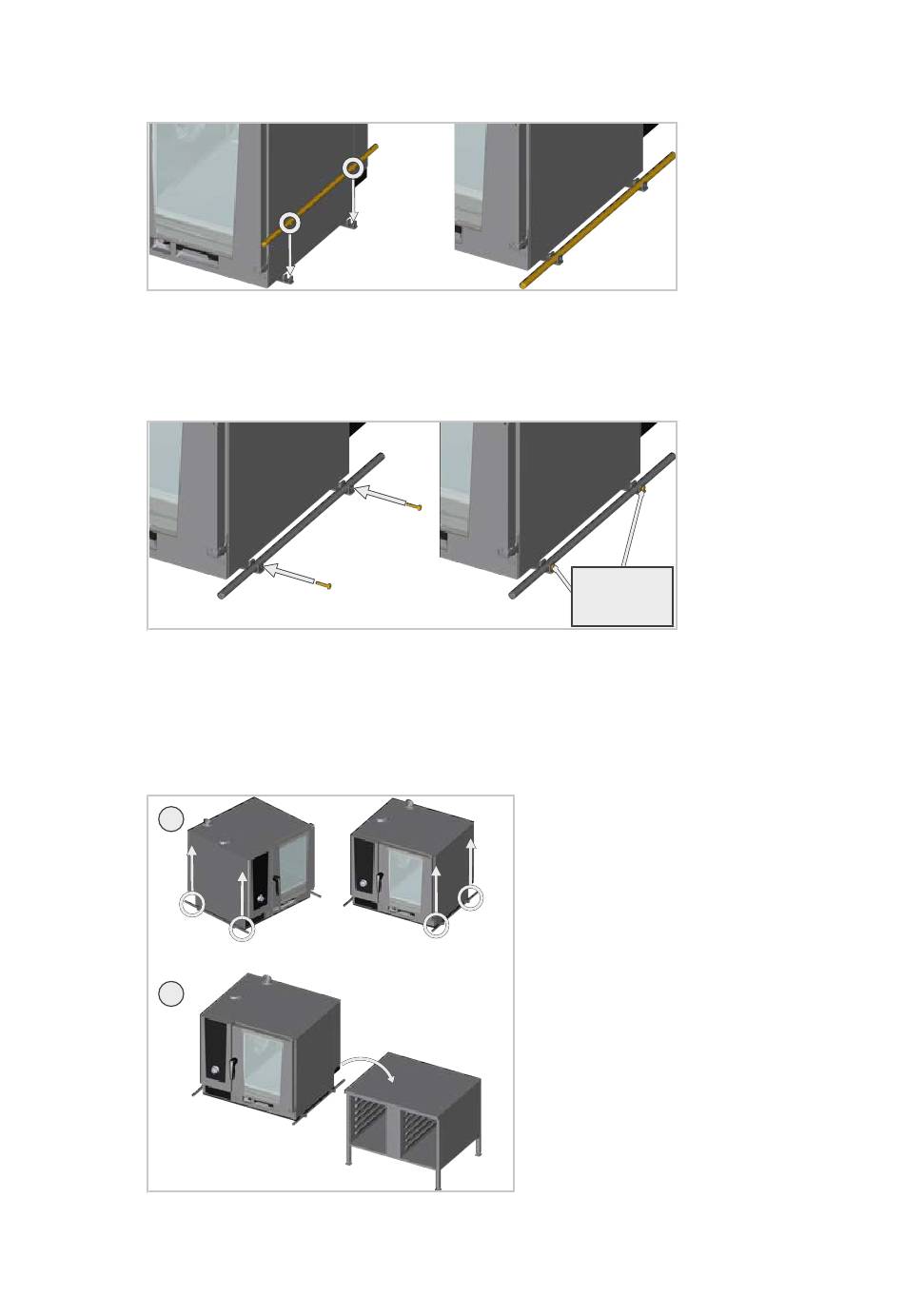

5. Screw the bar with the hexagon screws M8 with a torque of 5 Nm [3 2/3
lbf ft].
>
Make sure that the screws are screwed in flush. All four screws must be
tightened accordingly.
6. Transport the unit using the lifting aid and place it on the designated instal-
lation surface.
>
Lift the unit evenly at the circled lifting points of the bars (1).
>
Transport the unit to the designated installation surface (2) with the lifting
aid.
1
2
7. Remove the lifting aid. To do this, proceed in reverse order (Points 2–4).
8. Push the seal back into the groove provided in the base frame.
