Rational iCombi Pro Original Installation Instructions page 31

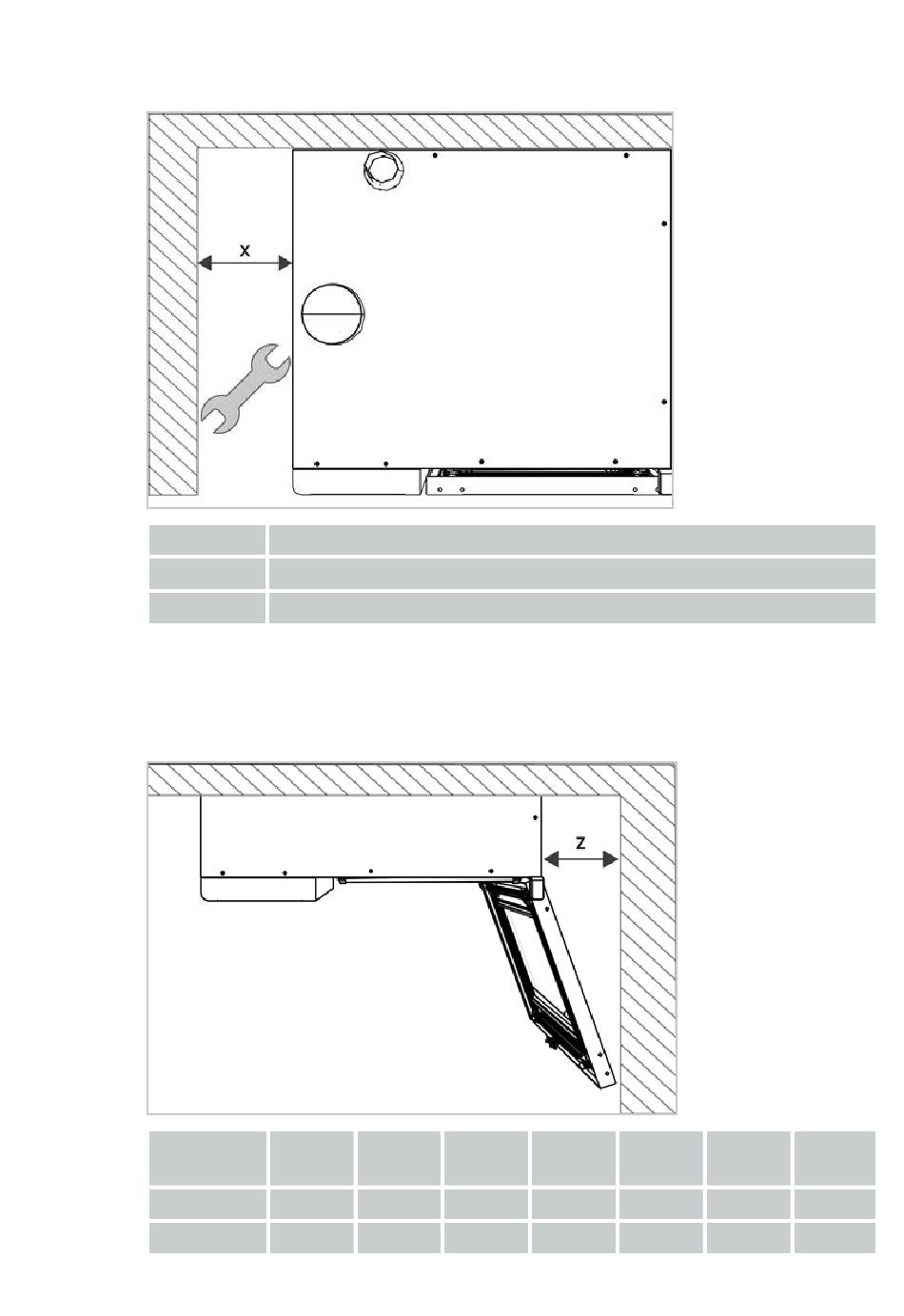

If this distance to the left side of the unit is not possible, place the unit so that it
can be pulled out of the location for maintenance work.
x (mm)
x (inch)
Recommended distance to the right side of the unit
To open the unit door at the first grid, place the unit on the right with a recom-
mended minimum distance to the wall. The distance depends on the unit size, as
shown in the table below.
Unit size
z (mm)
z (inch)
80.06.083_iCombiPro-iCombiClassic_IM_en-US
Distance to the left side of the device
XS 6 half
size
214 246
8 1/2 10
500
20
6 full 10 half
size size
316 246
12 1/2 10
10 full 20 half
size size
316 268
12 1/2 11
31 / 100
5 | Setup
20 full
size
338
13
