Transport Floor Units Without Pallet With Lift Truck - Rational iCombi Pro Original Installation Instructions

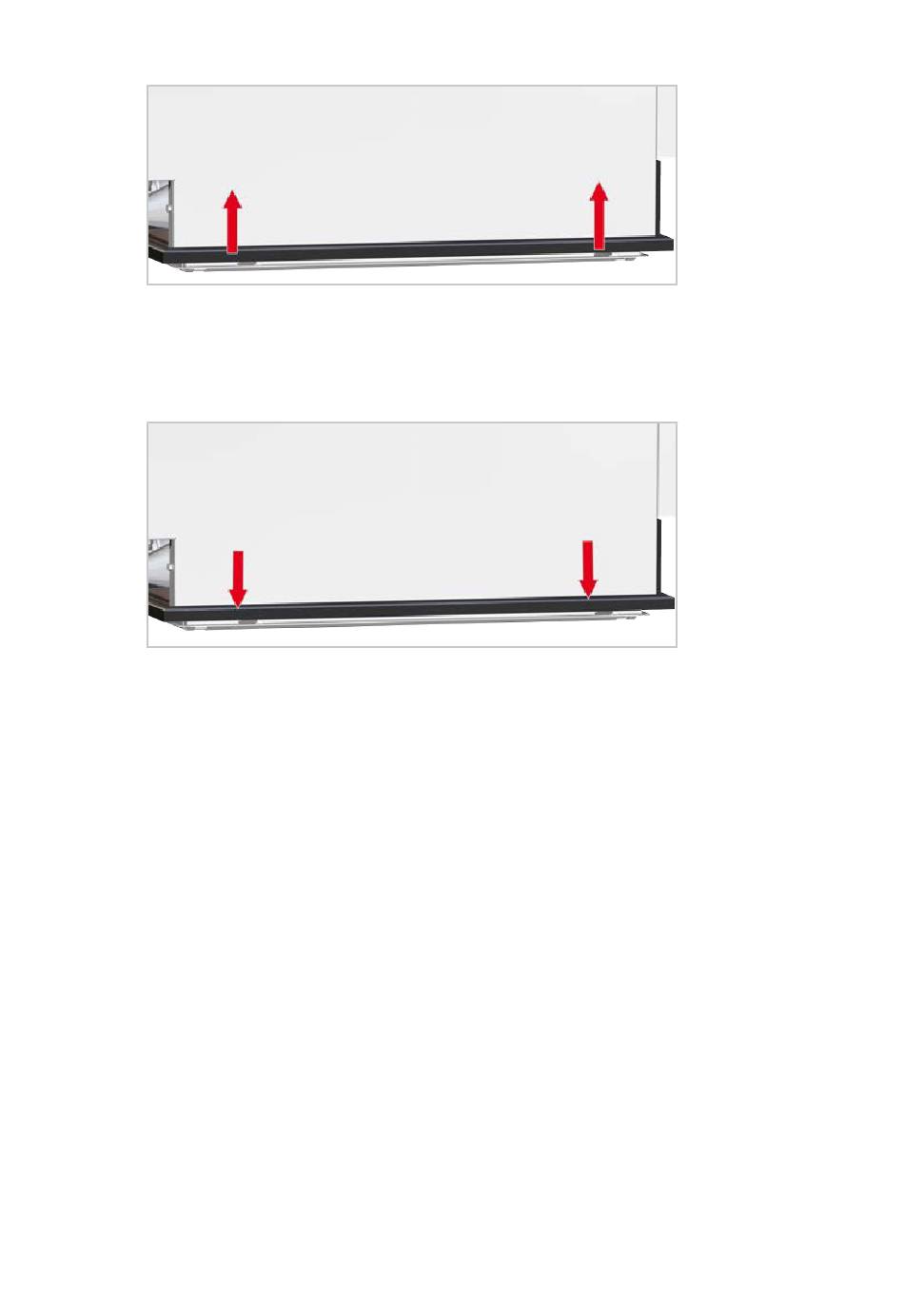

1. Slide the seal upwards out of the groove in the base frame.
2. Place the protection from damage on the pallet truck.
3. Use the pallet truck to lift the unit on the lifting points.
4. Transport the unit onto the designated installation surface.
5. Push the seal back into the groove provided in the base frame.
>>
The unit is set down on the designated installation surface and is ready for
setup.

4.3.2 Transport floor units without pallet with lift truck

a
The packaging material is removed.
a
The unit is on the unit feet.
a
The transport aids are ready.
a
The lift truck is in the lowest position.
1. Move with the lift truck from the left or right under the unit. Make sure that
the lift truck is in the lowest position.
2. Loosen the two screws holding the transport aids together and separate the
transport aids.
3. Place the transport aids between the floor unit and the lift truck. Look out
for protruding components.
>
The left transport aid must be approx. 100 mm [4 inches] next to the left
foot of the unit.
