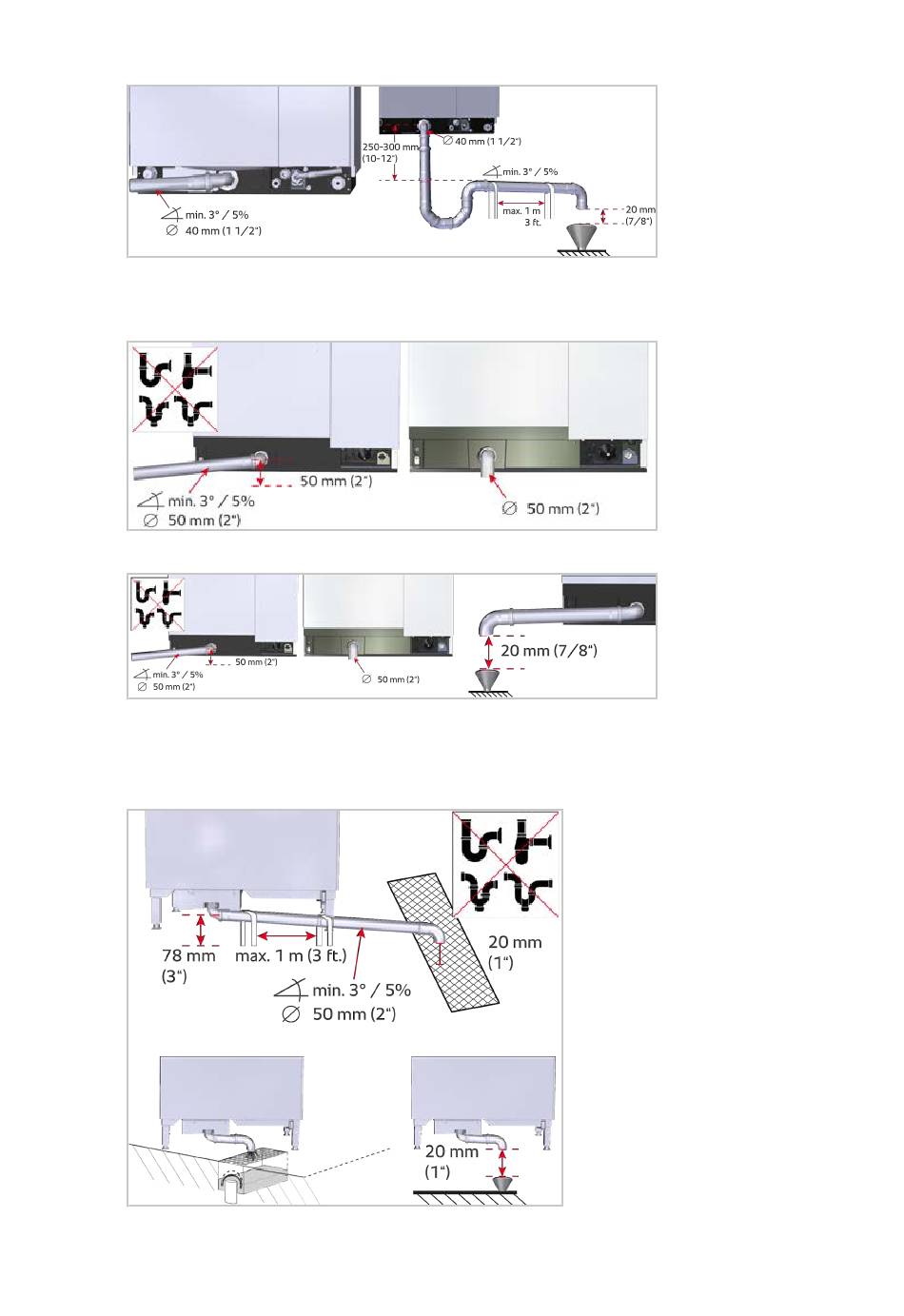

9 | Wastewater connection
Only applies for United Kingdom:
Unit size 6 half size GN to 10 full size GN
International - exception: does not apply for United Kingdom:
Only applies for United Kingdom:
The average height of the wastewater connection for tabletop units is approx.
50 mm [1.57 inch].
Unit size 20 half size GN, 20 full size GN
The average height of the 90-degree pipe on the wastewater connection is
78 mm [3 inch].
76 / 100
80.06.083_iCombiPro-iCombiClassic_IM_en-US
