1

Product Overview

This chapter presents a general overview of the LEC-BASE MINI carrier. After reviewing this
chapter you should understand the following features of the LEC-BASE MINI carrier board.


Carrier Description


I/O Features

Functional Block Diagram

Connector Locations and Descriptions
 Carrier Specifications
1.1 Carrier Description
The ADLINK LEC-BASE MINI is the host carrier board for ADLINK's SMARC modules and
serves as reference design for SMARC modules. The SMARC module plugs directly into the
LEC-BASE MINI where the carrier board becomes a design platform for testing and developing
your applications. Figure 1-1 provides an overview photo of the LEC-BASE MINI with call outs
of its interface hardware. The proceeding chapters and sections in this manual present these
features in more detail.
The ADLINK LEC-BASE MINI supports the features of SMARC Hardware Specification version
1.1 The following section presents the list of features for the LEC-BASE MINI.
Product Overview

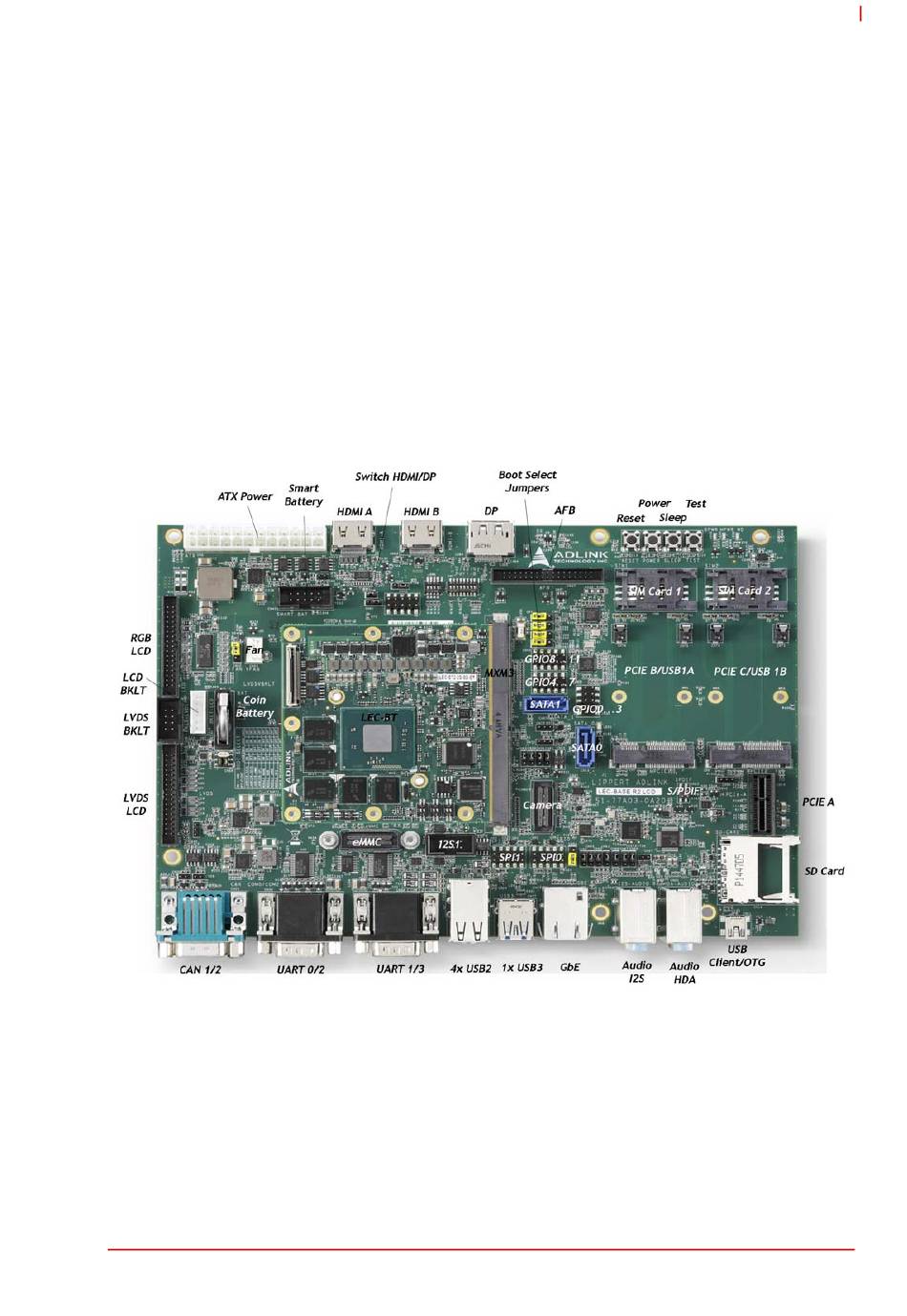

Figure 1-1: LEC-BASE MINI IO Overview
LEC-BASE MINI
1
