1.5.4

Mechanical

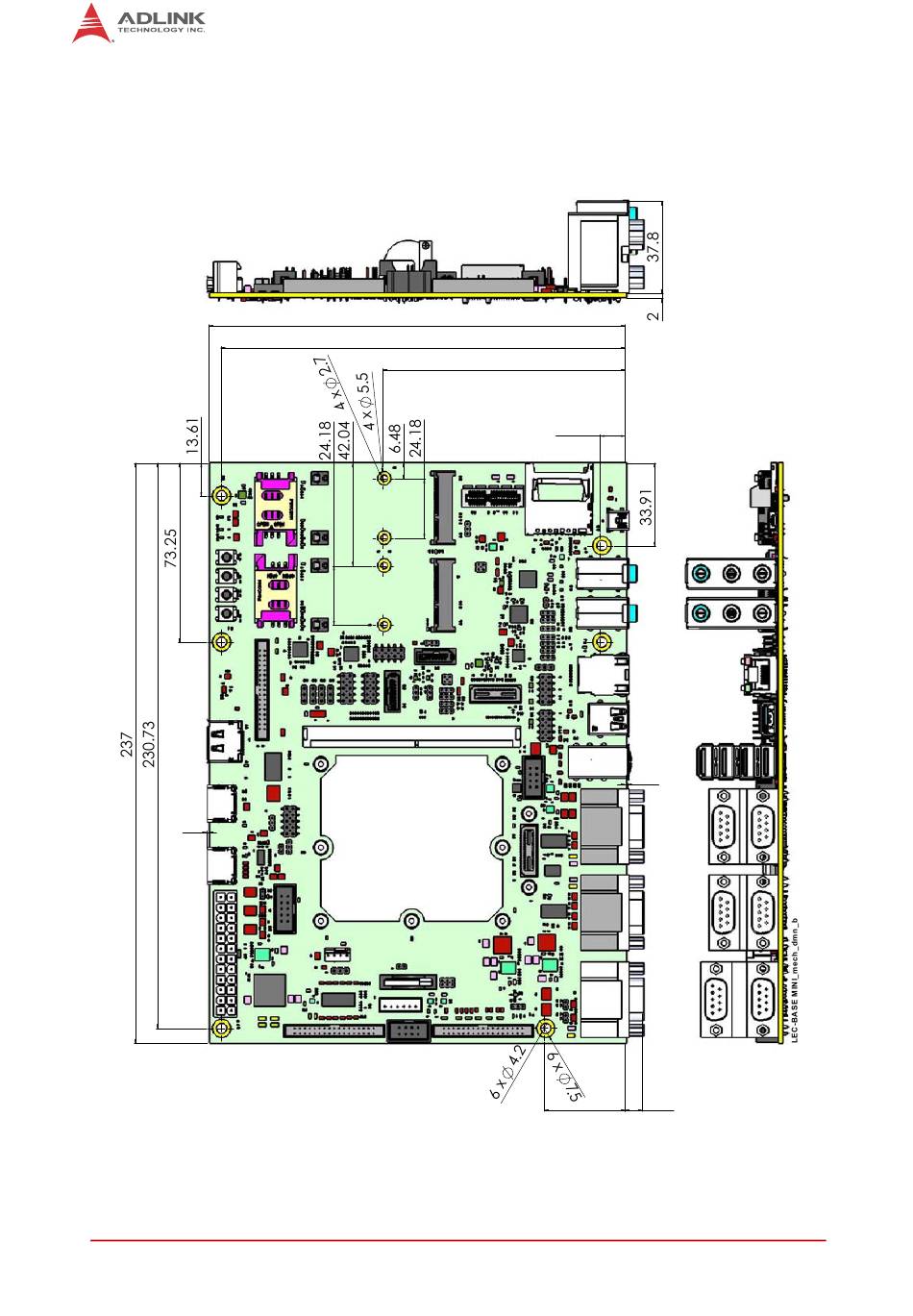

Figure 1-3 provides the mechanical dimensions and mounting hole sizes of the
LEC-BASE MINI. The LEC-BASE MINI can be mounted to a chassis using M4, B-head screws.
Mezzanine cards can be mounted to the carrier using female-female standoffs with M2.5
threads and M2.5, B-head screws.
170
165.10
98.83
10.16
1
1
33.02 6.97
Figure 1-3: Mechanical Dimensions (Top Side)
