Power Supply Specifications
The AP uses a phoenix connector for power supply. DC input voltage: 48 V DC; rated
current: 0.5 A
Table 7-8
Specifications of the DC Power Supply Terminal
Distance
Between Holes
3.81 mm

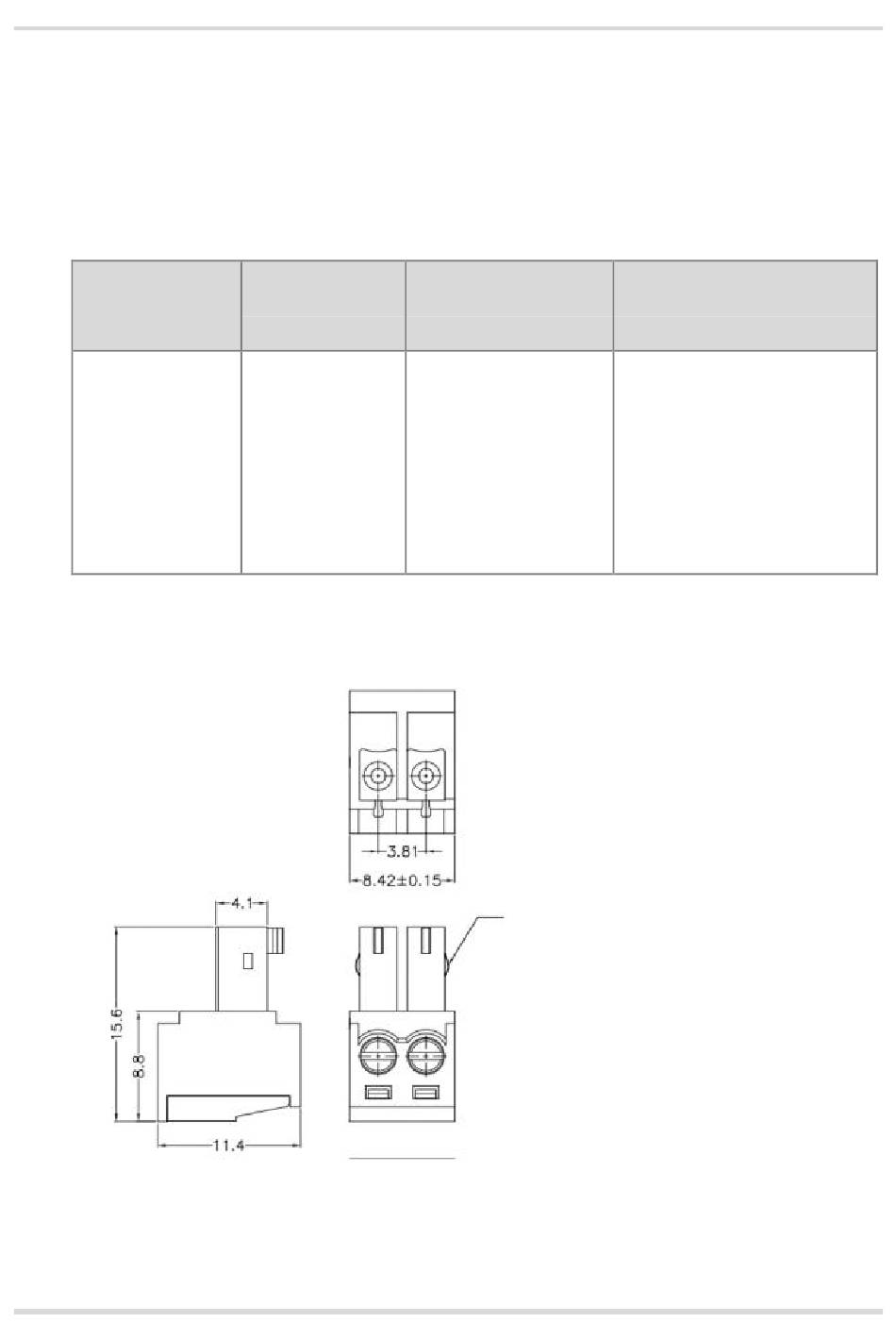

Figure 7-5
Specifications of the Power Supply Terminal
Terminal Width Insertion Depth
8.42 mm
6.8 mm
This bump exists
for less than 6 pins.
44
Polarity
Reverse connection is
supported. It is
recommended that the
positive pole be on the left,
and the negative pole be
on the right.
Appendix
