Hardware Installation Guide

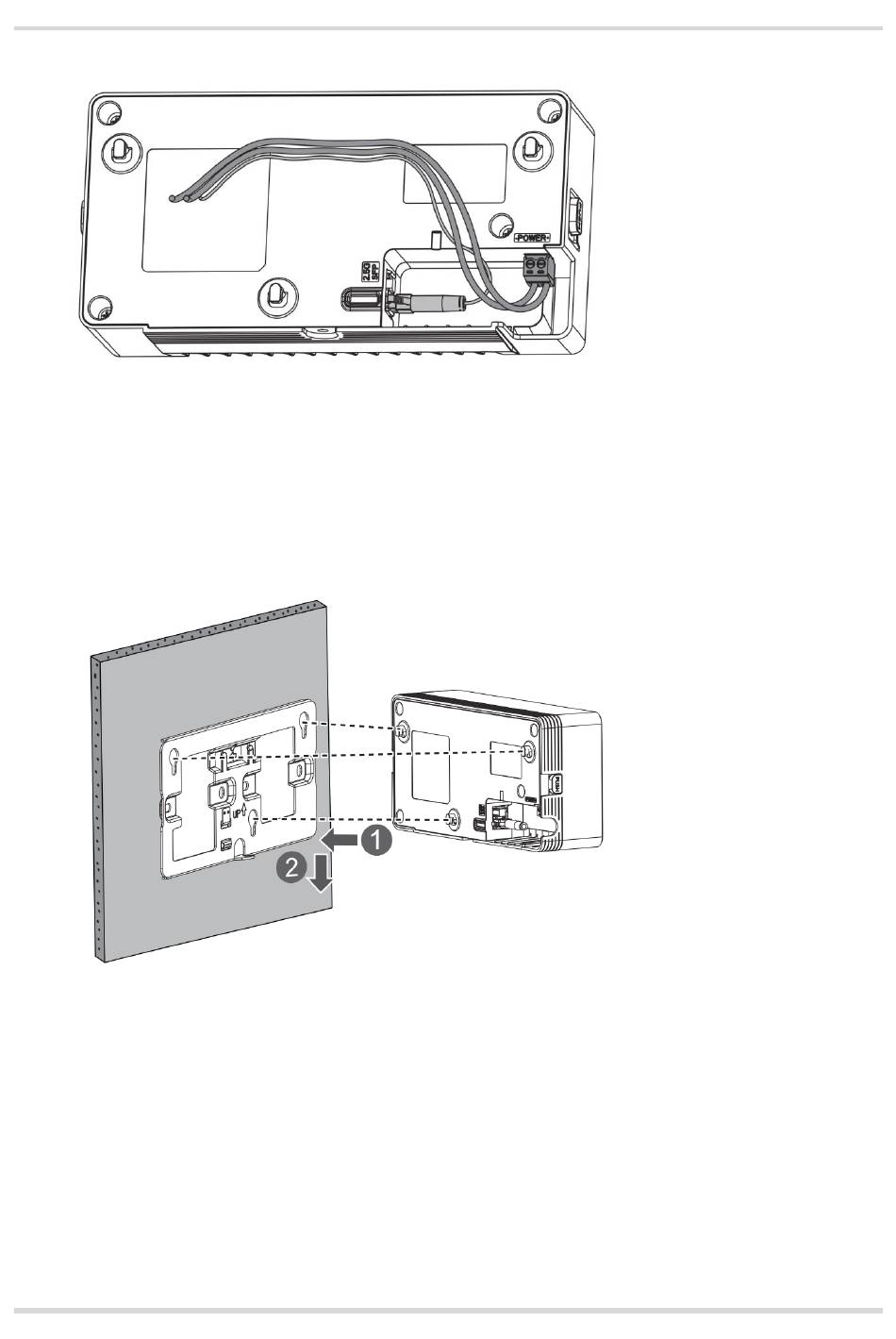

Figure 3-9
Inserting the Optical Fiber and Cable
(6) Secure the device with cables connected to the mounting bracket by using delivered
pins. Align pins with holes on the mounting bracket and install the device from top to
down.
Figure 3-10
(7) The figure below shows device after installation.
Installing the Device to the Mounting Bracket
