Hardware Installation Guide

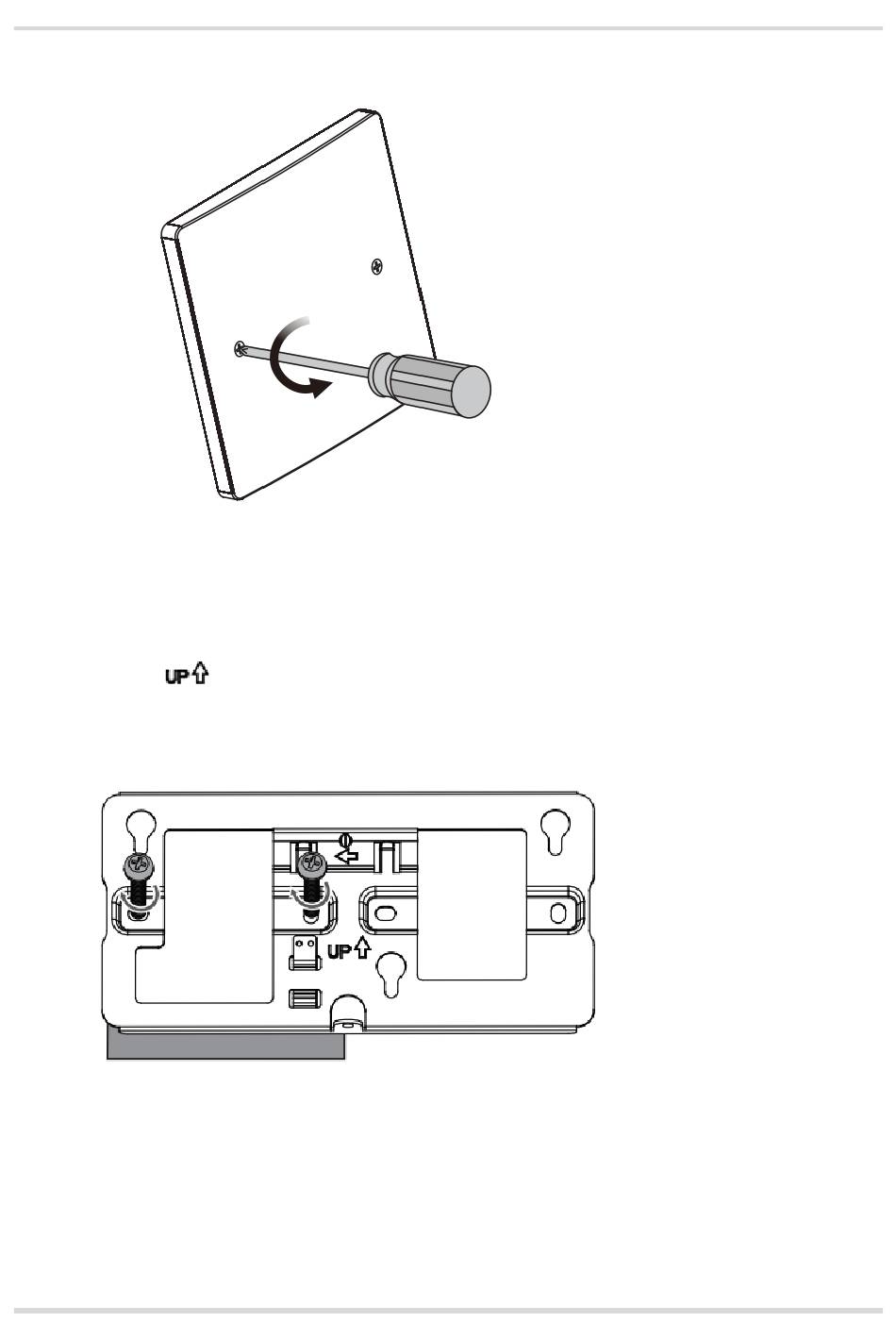

Figure 3-3
Removing the Panel of an 86-type Panel
(2) Choose the two holes on the left or right side, and use two M4 × 20 pan head
self-tapping screws delivered with the device to fix the mounting bracket. Keep the
mark
Figure 3-4
Installing the Mounting Bracket (Using Left Holes)
on the mounting bracket upward during installation.
21
Installation
