Caution
Ensure that the device is at least 10 cm away from other objects in the upper, left,

and right directions, and no obstacle is under the device that blocks the cable out
from the network port.
When installing or moving the AP, ensure that the power supply is cut off.

Ensure that the wireless AP installation position facilitates indicator status

observation.
3.4.2

Embedding in a 172-type Panel

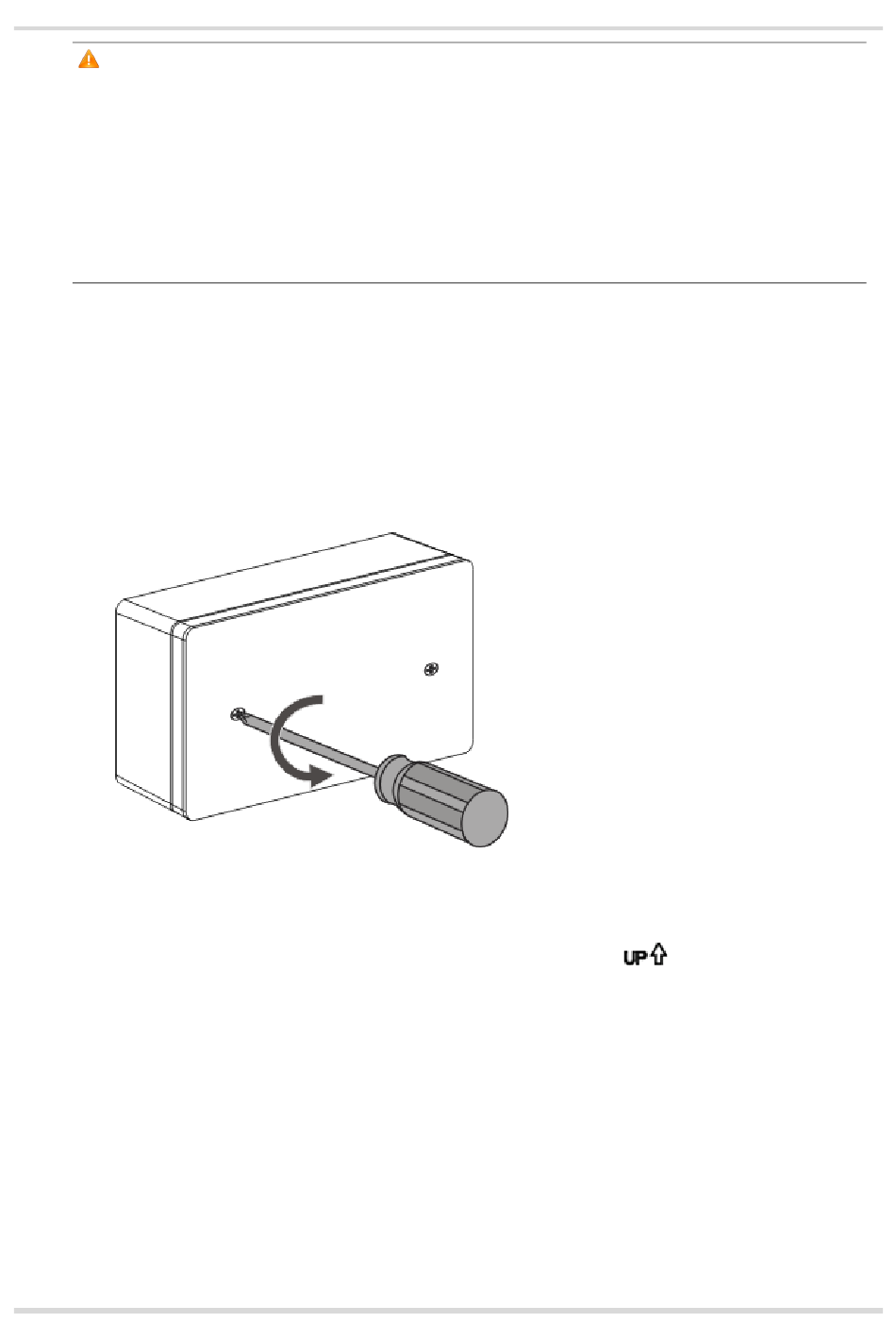

(1) Use a screwdriver to remove the panel of a 172-type panel. (If there is no 172-type
panel, ignore this step.)
Figure 3-13
(2) Use two M4 × 20 pan head self-tapping screws delivered with the device to fix the two
outermost holes of the mounting bracket. Keep the mark
bracket upward during installation.
Removing the Panel of a 172-type Panel
26
Installation
on the mounting
