- Page 1 Ruijie RG-AP710 Series Access Points Hardware Installation and Reference Guide V1.00...
- Page 2 Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption statement This document is provided “as is”.
- Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance Ruijie Networks Website: https://www.ruijienetworks.com/ Technical Support Website: https://ruijienetworks.com/support...
-
Page 4: Product Overview
Product Overview 1 Product Overview Featuring leading 802.11ac Wave2, Ruijie RG-AP710 supports 2 spatial streams and delivers up to 300Mbps@2.4G (802.11b/g/n) and 2 spatial stream and delivers up to 867Mbps@5G (802.11a/n/ac). The overall dual-radio, dual-band performance speeds up to 1167Mbps per device, totally eliminating Gigabit wireless bottlenecks. AP710 is ideal for a variety of scenarios, such as large-scaled campuses, governments, financial services, and enterprises. -

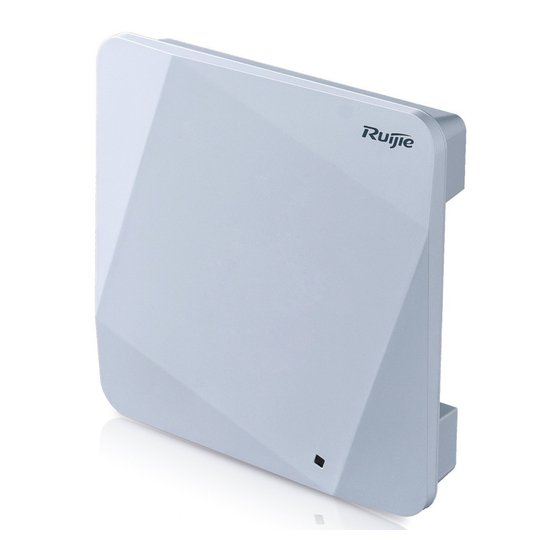

Page 5: Product Image
Hardware Installation and Reference Guide Product Overview Management Ports One Micro USB Console port Button One Reset button 1 LED (red, green, blue, orange, and flashing modes, flashing mode for smart device access, and the indicator can be switched off to silent mode) Power Supply Adapter: DC 5V/3A (optional) PoE: IEEE 802.3af... -
Page 6: Led Indicators
Hardware Installation and Reference Guide Product Overview 2. Console port 5. LAN1/PoE port 3. Reset button 6. 5V DC power supply input port 1.3 LED Indicators Fit AP State Frequency Meaning The AP is NOT receiving power. Or the AP is in Do Not Disturb mode, which can be disabled by software. -
Page 7: Cooling Solution
Hardware Installation and Reference Guide Product Overview The AP requires Ruijie power adapters (If needed, you can buy them from Ruijie). To use a PoE device, make sure it supports the IEEE 802.3af/at PoE standard. 1.5 Cooling Solution The AP adopts fanless design. -
Page 8: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation 2 Preparing for Installation To prevent device damage and bodily injury, please read carefully the safety recommendations described in this chapter. The recommendations do not cover all possible hazardous situations. 2.1 Installation The AP must be installed indoors. -
Page 9: Temperature And Humidity
Hardware Installation and Reference Guide Preparing for Installation Be sure to make a careful check before you shut down the power supply. Do not place the device in a damp/wet location. Do not let any liquid enter the chassis ... -
Page 10: Power Supply
The DC input power should be greater than the power actually consumed by the system. The input power for the RG-AP710 should be greater than 15 W. Please use Ruijie recommended power adapters. Please use Ruijie certified PoE injectors. 2.8 Installation Tools... - Page 11 Hardware Installation and Reference Guide Preparing for Installation The above listed items are for general situations, which may vary in the actual shipment. The purchase order shall prevail in any case. Please check each item carefully according to the packing list or purchase order. If any item is damaged or missing, notify the sales person.
-
Page 12: Installing The Access Point
Hardware Installation and Reference Guide Installing the Access Point 3 Installing the Access Point The RG-AP710 series must be fixed and installed indoors. Before installing the AP, make sure you have carefully read the requirements described in Chapter 2. 3.1 Installation Flowchart 3.2 Before You Begin... - Page 13 Hardware Installation and Reference Guide Installing the Access Point Disconnect the device before cleaning it. Do not wipe the device with a damp cloth. Do not wash the device with liquid. Do not open the enclosure when the AP is working. ...
- Page 14 Hardware Installation and Reference Guide Installing the Access Point Figure 3-3 Mounting the AP on the Bracket The AP can be installed in any of four directions on the mounting bracket depending on how you route your Ethernet cable. The square feet should fit easily into the mounting slots. Do not forcibly push the AP into the slots. After installation, verify that the AP is securely fastened.
-
Page 15: Optional) Securing The Access Point
Hardware Installation and Reference Guide Installing the Access Point Before mounting the AP on the bracket, you must first install the Ethernet cables. Slide the AP into the holes in the reverse direction against the arrow on the mounting bracket until it clicks into place. See Figure 3-6. -
Page 16: Removing The Access Point
3.6 Removing the Access Point If the hidden lock is enabled, attach the front part of the key to the edge of the mounting bracket (keep the Ruijie logo of the key toward the top panel of the AP). Slide the key along with the four edges of the mounting bracket, and attempt to insert the key to the keyhole (only one marked keyhole can be inserted). -
Page 17: Connecting Cables
Hardware Installation and Reference Guide Installing the Access Point If the AP is installed on the ceiling, hold the AP in your hands and push it sideward. And attempt to push it along the direction of the LAN port. Figure 3-11 Removing the Ceiling-Mount AP 3.7 Connecting Cables Connect UTP/STP to the LAN1/PoE port on the AP. -
Page 18: Checking After Installation
Hardware Installation and Reference Guide Installing the Access Point Make sure the cable bundles are neat and orderly. Bend twisted pairs naturally or to a large radius close to the connector. Do not over tighten cable bundle as it may reduce the cable life and performance. Bundling Steps Bundle the drop UTP/STP cables and route them to the LAN/PoE port. -
Page 19: System Debugging
Hardware Installation and Reference Guide System Debugging 4 System Debugging 4.1 Setting up a Debugging Environment Use a power adapter or PoE to power the AP. Setting up the Environment Verify that the AP is properly connected to the power source. ... -
Page 20: Monitoring And Maintenance
Hardware Installation and Reference Guide Monitoring and Maintenance 5 Monitoring and Maintenance 5.1 Monitoring You can observe the LED to monitor the AP in operation. CLI Commands You can run related commands on the command line interface (CLI) on the AC to remotely monitor the configurations and status of the AP. -
Page 21: Troubleshooting Flowchart
Hardware Installation and Reference Guide Troubleshooting 6 Troubleshooting 6.1 Troubleshooting Flowchart 6.2 Troubleshooting LED does not light up after the AP is powered on If you use PoE power supply, verify that the power source is IEEE 802.11af compliant, and then verify that the cable is connected properly. - Page 22 Hardware Installation and Reference Guide Troubleshooting Follow the above-mentioned two steps. Verify that the AP is configured correctly. Adjust the angle of antennas. Move the client device to adjust the distance between the client and the AP. LED keeps blinking red The LED stays blinking red for a long time, indicating the Ethernet port is not connected.
-
Page 23: Appendix A Connectors And Media
Hardware Installation and Reference Guide Appendix A Connectors and Media Appendix A Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet). -
Page 24: Appendix B: Cabling Recommendations
Hardware Installation and Reference Guide Appendix B: Cabling Recommendations Appendix B: Cabling Recommendations During installation, route cable bundles upward or downward along the sides of the rack depending on the actual situation in the equipment room. All cable connectors should be placed at the bottom of the cabinet rather than be exposed outside of the cabinet. - Page 25 Hardware Installation and Reference Guide Appendix B: Cabling Recommendations If cables are to be bent, bind them first but do not tie cable ties within the bend to avoid stress on the cables, which may otherwise cause the wires inside to break, as shown in Figure B-3. Figure B-3 Do Not Tie Cable Ties within the Bend ...
- Page 26 Hardware Installation and Reference Guide Appendix B: Cabling Recommendations 3. Spring washer 1. Flat washer Note 4. Flat washer 2. Nut When using a stiff cable, fix it near the cable lug to avoid stress on the lug and cable. ...
