Hardware Installation Guide
Table 7-2 100BASE-TX/10BASE-T Pin Assignments
Pin
1
2
3
6
4, 5, 7, 8

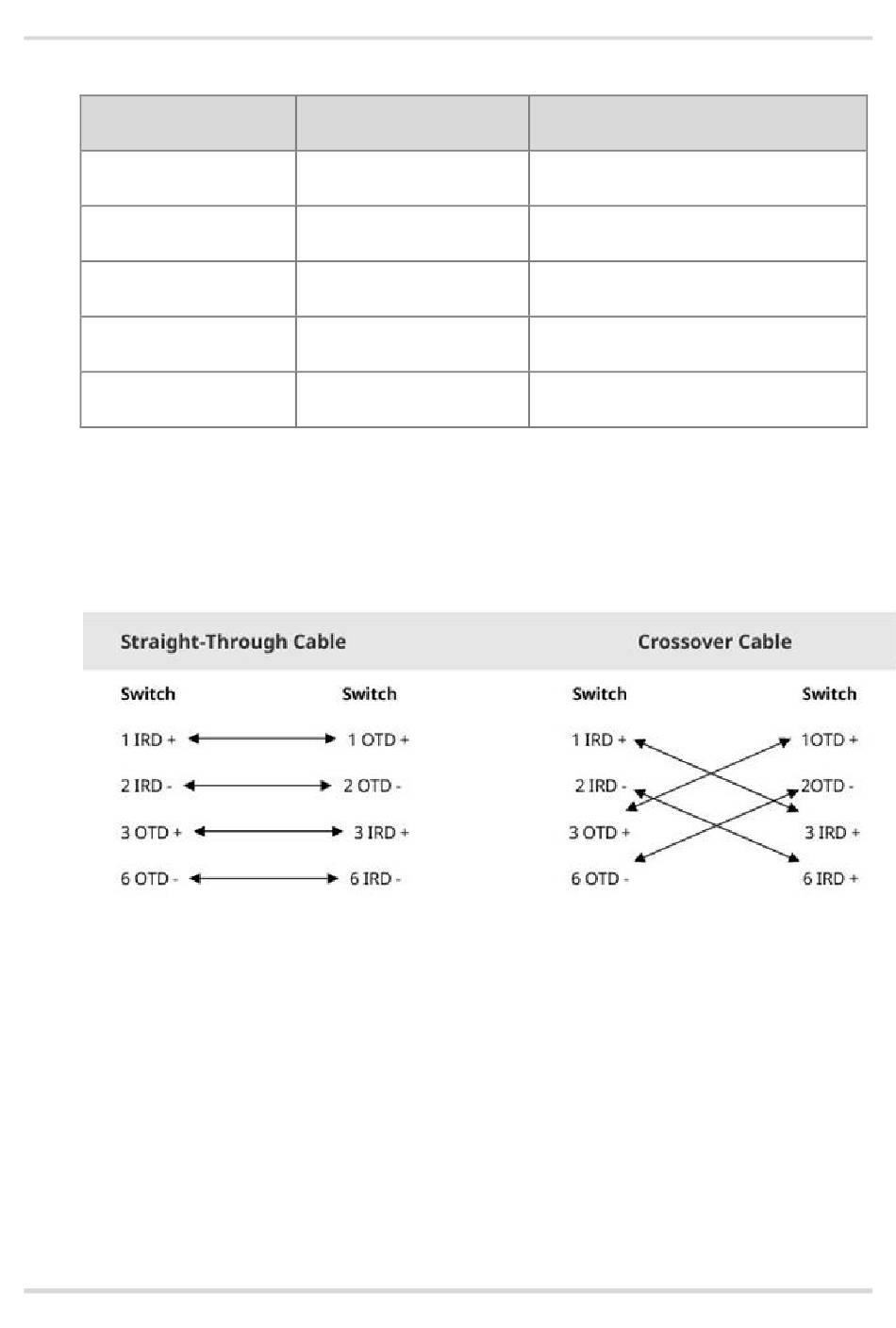

The following figure shows wiring of straight-through and crossover cables for
100BASE-TX/10BASE-T.
Table 7-3 100BASE-TX/10BASE-T Twisted Pair Connections
Socket
Input Receive Data+
Input Receive Data-
Output Transmit Data+
Output Transmit Data-
Not Used
36
Plug
Output Transmit Data+
Output Transmit Data-
Input Receive Data+
Input Receive Data-
Not Used
