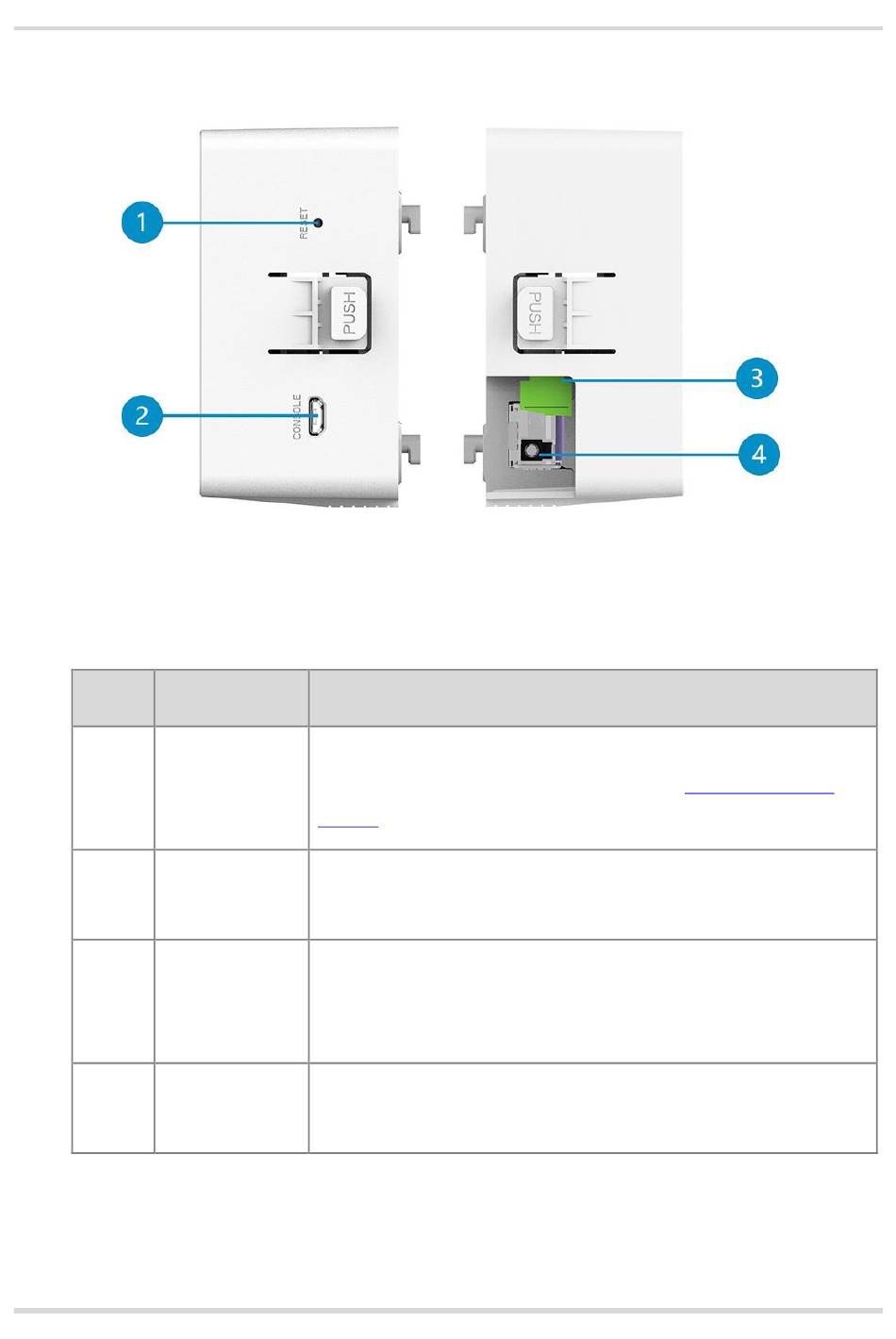

Figure 1-5 Side View
Table 1-2 Description of Ports on Side Covers
No. Item
1 Reset button
Management
2
port
Power supply
3
port
4 Optical port
Description
Used to restart the device or restore factory settings of the
device. For detailed reset operations, see
Button.
Used to connect with a serial cable for device management.
Phoenix terminal powered port used to supply power to the
device. The device can be powered through DC or a
photoelectric hybrid cable.
Uplink service port connected to the optical port of the AM
host. The host needs to use the paired optical modules.
