Hardware Installation Guide
Figure 3-14
Figure 3-15
(3) For details about how to install cables and the device, see steps 3–7 in
an 86-type
3.4.3
Mounting the Device on a Wall
(1) Use two M4 × 20 pan head self-tapping screws delivered with the device to fasten the
mounting bracket to a wall. Select screw holes at discretion. You are advised to select
the outermost holes for better fastening.

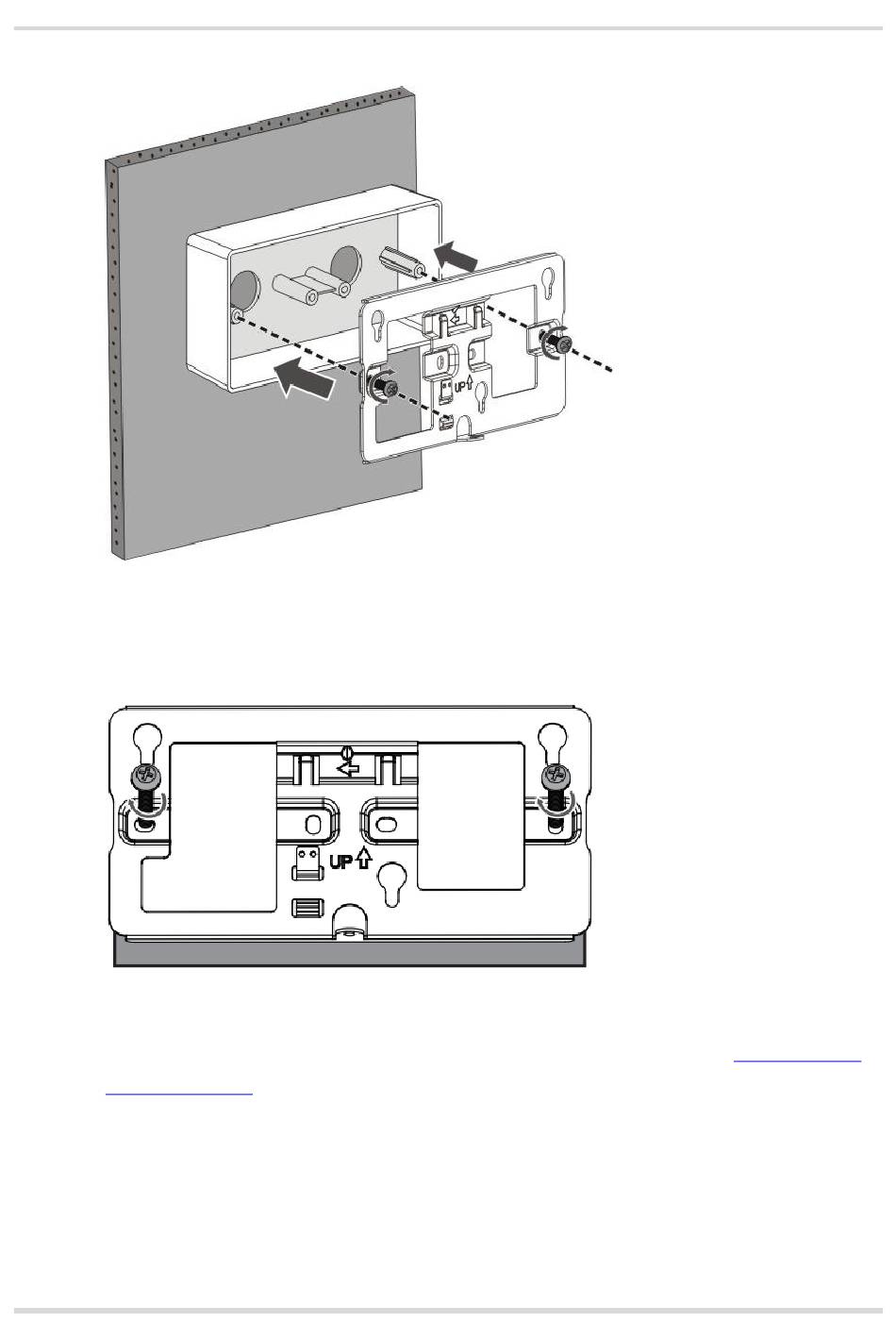

Installing the Mounting Bracket (1)
Installing the Mounting Bracket (2)
Panel".
27
Installation
"Embedding in
