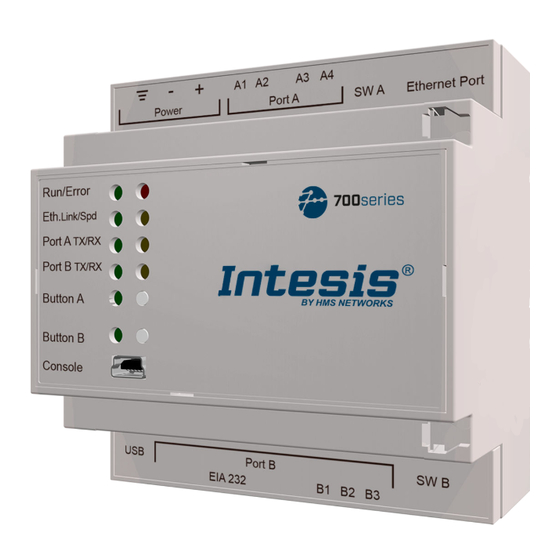

HMS Networks Intesis IN703DAL0640000 User Manual

Dali-2 protocol translator with serial and ip support - 1 dali channel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ENGLISH
Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI
Channel
IN703DAL0640000 GATEWAY
USER MANUAL
Version 1.0.2
Publication date 2023-12-19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intesis IN703DAL0640000 and is the answer not in the manual?

Questions and answers

Related Manuals for HMS Networks Intesis IN703DAL0640000

Summary of Contents for HMS Networks Intesis IN703DAL0640000

  • Page 1 ENGLISH Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel IN703DAL0640000 GATEWAY USER MANUAL Version 1.0.2 Publication date 2023-12-19...
  • Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.

  • Page 3: Table Of Contents

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Table of Contents 1. Description and Order Codes ..................... 1 2. Licensing ..........................2 3. General Information ........................ 3 3.1. Intended Use of the User Manual ..................3 3.2.

  • Page 4: Description And Order Codes

    Description and Order Codes Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel 1. Description and Order Codes IN703DAL0640000 Gateway. DALI-2 to Modbus TCP & RTU or BACnet/IP & MS/TP Server Application with 1 DALI Channel. ORDER CODE INTESIS MAPS TEMPLATE APPLICATION...

  • Page 5: Licensing

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Licensing Channel 2. Licensing Distribution license(s) for the IN703DAL0640000 gateway: Order Code License Page 2 of 40 USER MANUAL Version 1.0.2...

  • Page 6: General Information

    General Information Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel 3. General Information 3.1. Intended Use of the User Manual This manual contains the main features of this Intesis gateway and the instructions for its appropriate installation, configuration, and operation.
  • Page 7 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Admonition Messages and Symbols Channel IMPORTANT Instruction that must be followed to avoid a risk of reduced functionality and/or damage to the equipment or to avoid a network security risk. NOTE Additional information which may facilitate installation and/or operation.

  • Page 8: Overview

    Overview Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel 4. Overview This IN703DAL0640000 gateway supports two applications. Gateway's client interface ↔ Gateway's server interface BACnet/IP and MS/TP DALI Modbus TCP and RTU IMPORTANT This document assumes that the user is familiar with these technologies. Figure 1.

  • Page 9: Inside The Package

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Inside the Package Channel 4.1. Inside the Package Items included: • Intesis IN703DAL0640000 gateway • USB Mini-B type to USB Type-A cable • Installation Sheet 4.2. Main Features • DALI-2 certified •...

  • Page 10: General Functionality

    Channel 4.3. General Functionality This Intesis IN703DAL0640000 gateway enables data exchange between installations and devices based on the DALI protocol and control systems based on BACnet or Modbus. To do so, the gateway is continuously aware of both sides: the control system (supervisor, BMS, client device, etc.) and the DALI installations or devices to be integrated.

  • Page 11: Dali Supported Device Types

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI Supported Device Types Channel 4.5. DALI Supported Device Types Name Part Device type Fluorescent lamp Self-contained emergency lighting LED module Color control Energy data Diagnostics and maintenance data Consult all signals and their characteristics in Available Applications (page 20).

  • Page 12: Hardware

    Hardware Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel 5. Hardware 5.1. Mounting IMPORTANT Before mounting, please ensure that the chosen installation place preserves the gateway from direct solar radiation, water, high relative humidity, or dust. IMPORTANT Ensure the gateway has sufficient clearances for all connections when mounted.

  • Page 13: Connection

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Connection Channel 5.2. Connection CAUTION Disconnect all systems from power before manipulating and connecting them to the gateway. IMPORTANT Keep communication cables away from power and ground wires. 5.2.1.
  • Page 14 Connection Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Connectors' wiring: IMPORTANT For all connectors, use solid or stranded wires (twisted or with ferrule). Cross-section/gauge per terminal: • One core: 0.2 .. 2.5 mm / 24 .. 11 AWG •...

  • Page 15: Connection Procedure For Dali

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Connection Channel Figure 4. Gateway's power supply enabling parameter The gateway's power supply is enabled/disabled from the DALI Channel root in the tree view NOTE If you change the status of the Power the DALI Bus parameter, send the project to the gateway through the Receive/Send tab to apply the new status.
  • Page 16 Connection Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel NOTE Some devices detect the difference automatically and adjust themselves. NOTE When commissioning the gateway for the first time, DHCP will be enabled for 30 seconds. During that time, if there is a DHCP server, an IP address will be automatically assigned to the gateway.

  • Page 17: Connection Procedure For Bacnet

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Connection Channel IMPORTANT When installing the gateway at the end of the bus with the termination resistor enabled, do not install an additional termination resistor at that end. Using the EIA-232 connector: Connect the Modbus RTU communication cable to the gateway's EIA-232 connector of Port B.

  • Page 18: Connection To A Pc For Configuration

    LED Indicators Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel IMPORTANT Observe polarity. IMPORTANT Remember the characteristics of the standard EIA-485 bus: • Maximum distance of 1200 meters (0.75 miles). • Maximum of 32 devices connected to the bus. •...

  • Page 19: Dip Switches

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DIP Switches Channel Color Description No power The gateway is Green connected and running No error Error Error No connection Eth. Link Green Connection established No transmission Eth. Spd Yellow Transmitting data No activity...
  • Page 20 Buttons Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel NOTE When having a pen drive connected to the gateway's USB connector, press button A to save the project or/and the logs to the pen drive. This behavior can be configured through Intesis MAPS.

  • Page 21: Technical Specifications

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Technical Specifications Channel 5.6. Technical Specifications Material: Plastic, type PC (UL 94 V-0) Housing Color: Light grey (RAL 7035) Net dimensions: 99 x 88 x 56 mm / 3.89 x 3.46 x 2.20" Mounting DIN rail EN 60715 TH35 Cross-section/gauge per terminal:...

  • Page 22: Dimensions

    Dimensions Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Temperature: 0 .. 50°C / 32 .. 140°F Operational conditions Humidity: 5 .. 95% (No condensation) 5.7. Dimensions • Net dimensions (DxWxH) Millimeters: 99 x 88 x 56 mm Inches: 3.89 x 3.46 x 2.20"...

  • Page 23: Available Applications

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Available Applications Channel 6. Available Applications NOTE Signals marked as Optional signals are supported by the gateway but may not be supported by the server devices of the installation. Please refer to the technical documentation of each server device to know which signals they support.
  • Page 24 DALI to BACnet/IP and MS/TP Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Object name Possible values Object type Object instance Uyxx_Fade Time 0 .. 15 0-Analog Input 7000*y+(100*xx)+8 Uyxx_Fade Rate 1 .. 15 0-Analog Input 7000*y+(100*xx)+9 Uyxx_Arc Power Level 0 ..
  • Page 25 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI to BACnet/IP and MS/TP Channel Table 5. Broadcast - All ballasts Object name Possible values Object type Object instance By_Arc Power Level 0 .. 100% 1-Analog Output 7000*y+6800 0: Off By_Arc Power Off / On...
  • Page 26 DALI to BACnet/IP and MS/TP Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Object name Possible values Object type Object instance Uyxx_Emergency Battery 0 .. 100% 0-Analog Input 7000*y+(100*xx)+18 Charge Uyxx_Next Function Test 0 .. 16384 hours 0-Analog Input 7000*y+(100*xx)+19 Uyxx_Next Duration Test...
  • Page 27 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI to BACnet/IP and MS/TP Channel Table 7. LED ballasts (Type 6) Object name Possible values Object type Object instance b7: RefMeasurFail b6: ThermLightLvl b5: ThermShut b4: CurrProtAct Uyxx_Failure Status 0-Analog Input 7000*y+(100*xx)+38...
  • Page 28 DALI to BACnet/IP and MS/TP Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Table 8. Color control (Type 8) Object name Possible values Object type Object instance Uyxx_Store Current Level & Colour 0 .. 15 1-Analog Output 25000+(3200*y)+(50*xx)+0 as Scene...
  • Page 29 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI to BACnet/IP and MS/TP Channel Table 10. Broadcast - Color ballasts (Type 8) Object name Possible values Object type Object instance Tc: 1000 .. 10000°K By_Arc Colour level 1-Analog Output 7000*y+6810 RGB: 0 ..
  • Page 30 DALI to BACnet/IP and MS/TP Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Object name Possible values Object type Object instance Uyxx_Light Source On Time 25000+(3200*y)+(50*xx) 0 .. 4294967293 seconds 1-Analog Input Resettable Uyxx_Light Source Set On 25000+(3200*y)+(50*xx) 0 ..
  • Page 31 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI to BACnet/IP and MS/TP Channel Table 14. Input devices Object name Possible values Object type Object instance 0: Vacant + No Mov 1: Vacant + Mov Iyxx_Occupancy Input 13-Multistate 14000+(640*y)+(10*x) Value...

  • Page 32: Dali To Modbus Tcp And Rtu

    DALI to Modbus TCP and RTU Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel 6.2. DALI to Modbus TCP and RTU 6.2.1. Modbus Registers NOTICE This part is common for Modbus RTU and TCP. Function to read Modbus registers: •...
  • Page 33 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI to Modbus TCP and RTU Channel Register name Possible values Address formula 0: Update Finished Update All ECG Status 7000*y+(100*xx)+4 1: Trigger Update b7: PwrCycle b6: MissShAdd b5: ResetSt b4: FadeRun Ballast Status...
  • Page 34 DALI to Modbus TCP and RTU Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Register name Possible values Address formula 0: Off 1: 100% 2: StpUp 3: StpDwn 1XX: GoScn 2XX: StoreScn Multicontrol 3XX: RmvScn 7000*y+(100*xx)+31 1XXX: FdRate 2XXX: FdTime...
  • Page 35 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI to Modbus TCP and RTU Channel Register name Possible values Address formula 0: Off 1: 100% 2: StpUp 3: StpDwn 1XX: GoScn 2XX: StoreScn Multicontrol 3XX: RmvScn 7000*y+(20*xx)+6414 1XXX: FdRate 2XXX: FdTime...
  • Page 36 DALI to Modbus TCP and RTU Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Register name Possible values Address formula 0: Off 1: 100% 2: StpUp 3: StpDwn 1XX: GoScn 2XX: StoreScn Broadcast Multicontrol 3XX: RmvScn 7000*y+6814 1XXX: FdRate 2XXX: FdTime...
  • Page 37 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI to Modbus TCP and RTU Channel Register name Possible values Address formula 0: Disabled Duration Test Interval 7000*y+(100*xx)+49 1 .. 97 weeks Test Execution Timeout 0 .. 255 days 7000*y+(100*xx)+50 Prolong Time 0 ..
  • Page 38 DALI to Modbus TCP and RTU Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Table 19. LED ballasts (Type 6) Register name Possible values Address formula b7: RefMeasurFail b6: ThermLightLvl b5: ThermShut b4: CurrProtAct Failure Status 7000*y+(100*xx)+80 b3: LoadInc b2: LoadDec...
  • Page 39 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI to Modbus TCP and RTU Channel Table 20. Color control (Type 8) Object name Possible values Object type Object instance Uyxx_Store Current Level & 0 .. 15 1-Analog Output 25000+(3200*y)+(100*xx)+0 Colour as Scene...
  • Page 40 DALI to Modbus TCP and RTU Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Register name Possible values Address formula Gyxx_Arc Colour White level for RGBW W: 0 .. 100 7000*y+(20*xx)+6417 For RGBW only 0: Step Cooler Gyxx_Colour Tc Step Warmer/Cooler 7000*y+(20*xx)+6418 1: Step Warmer...
  • Page 41 Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI DALI to Modbus TCP and RTU Channel Register name Possible values Address formula bitfields 0: Overal failure 1: Ext. Supply Undervoltage Control Gear Failure 2: Ext. Supply Overvoltage 25000+(3200*y)+(100*xx)+51 3: ECG Output Power Limit 4: Thermal derating...
  • Page 42 DALI to Modbus TCP and RTU Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Channel Table 26. Input devices Register name Possible values Address formula 0: Vacant + No Mov 1: Vacant + Mov 14000+(640*y)+(10*x) Iyxx_Occupancy Input Value +z+SI*1280 2: Occupied + No Mov 3: Occupied + Mov...

  • Page 43: Late Configuration: Change The Gateway's Protocol

    Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI Late Configuration: Change the Gateway's Protocol Channel 7. Late Configuration: Change the Gateway's Protocol Reconfiguring the gateway with a different protocol is very easy: Connect the gateway to the PC and open the configuration tool Intesis MAPS. Select the new template you need.
