ENGLISH
Panasonic domestic and commercial with KNX, Serial and IP support

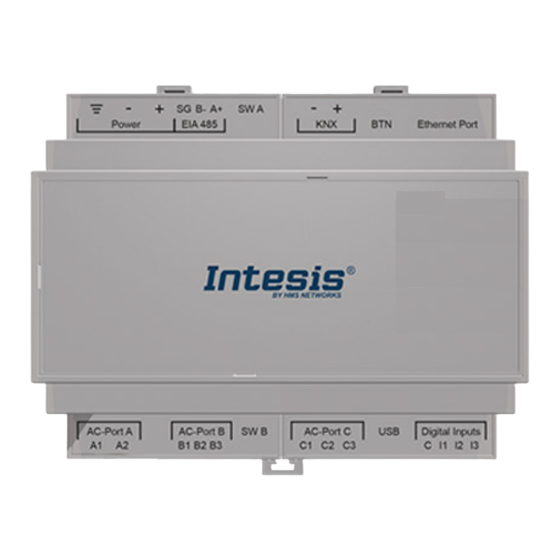

IN770AIR00XO000 GATEWAY
USER MANUAL
Version 1.0.7
Publication date 2023-11-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intesis IN770AIR00XO000 and is the answer not in the manual?

Questions and answers

Related Manuals for HMS Networks Intesis IN770AIR00XO000

Summary of Contents for HMS Networks Intesis IN770AIR00XO000

  • Page 1 ENGLISH Panasonic domestic and commercial with KNX, Serial and IP support IN770AIR00XO000 GATEWAY USER MANUAL Version 1.0.7 Publication date 2023-11-20...
  • Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.

  • Page 3: Table Of Contents

    Panasonic domestic and commercial with KNX, Serial and IP support Table of Contents 1. Description and Order Codes ..................... 1 2. Licensing ..........................2 3. General Information ........................ 3 3.1. Intended Use of the User Manual ..................3 3.2. General Safety Information ....................3 3.3.

  • Page 4: Description And Order Codes

    Description and Order Codes Panasonic domestic and commercial with KNX, Serial and IP support 1. Description and Order Codes IN770AIR00xO000 Gateway. Modbus®, KNX®, BACnet®, and Home Automation® gateway for Panasonic® air conditioning systems. ORDER CODE LEGACY ORDER CODE INBACPAN016O000 INBACPAN064O000 IN770AIR00xO000 INMBSPAN016O000 INMBSPAN064O000 INKNXPAN016O000 INKNXPAN064O000...

  • Page 5: Licensing

    Panasonic domestic and commercial with KNX, Serial and IP support Licensing 2. Licensing Distribution license(s) for the IN770AIR00xO000 gateway: Maximum AC units Order Code License Indoor units Outdoor units IN770AIR00SO000 Small IN770AIR00MO000 Medium NOTE The order code may vary depending on the product seller and the buyer's location. Page 2 of 41 USER MANUAL Version 1.0.7...

  • Page 6: General Information

    General Information Panasonic domestic and commercial with KNX, Serial and IP support 3. General Information 3.1. Intended Use of the User Manual This manual contains the main features of this Intesis gateway and the instructions for its appropriate installation, configuration, and operation. The contents of this manual should be brought to the attention of any person who installs, configures, or operates this gateway or any associated equipment.
  • Page 7 Panasonic domestic and commercial with KNX, Serial and IP support Admonition Messages and Symbols IMPORTANT Instruction that must be followed to avoid a risk of reduced functionality and/or damage to the equipment or to avoid a network security risk. NOTE Additional information which may facilitate installation and/or operation.

  • Page 8: Overview

    Overview Panasonic domestic and commercial with KNX, Serial and IP support 4. Overview This IN770AIR00xO000 gateway supports four applications. Gateway's client interface ↔ Gateway's server interface Modbus TCP and RTU KNX TP Panasonic domestic and commercial HVAC systems BACnet/IP or MS/TP Home Automation IMPORTANT This document assumes that the user is familiar with these technologies.

  • Page 9: Inside The Package

    Figure 3. Integration of Panasonic AC systems into BACnet installations Figure 4. Integration of Panasonic AC systems into Home Automation installations 4.1. Inside the Package Items included: • Intesis IN770AIR00xO000 Gateway • USB Mini-B type to USB Type-A cable • Installation sheet 4.2. Main Features •...

  • Page 10: Gateway General Functionality

    10). 4.3. Gateway General Functionality With this Intesis IN770AIR00xO000 gateway, you can easily integrate Panasonic ECOi, PACi, ECOg / PAC, VRF systems into an installation based on Modbus TCP, Modbus RTU, KNX, BACnet/IP, BACnet MS/TP, or Home Automation. To do so, the gateway acts as a server device of the installation itself, accessing all signals from each air conditioner unit and controlling the whole AC network.

  • Page 11: Hardware

    Panasonic domestic and commercial with KNX, Serial and IP support Hardware 5. Hardware 5.1. Mounting IMPORTANT Before mounting, please ensure that the chosen installation place preserves the gateway from direct solar radiation, water, high relative humidity, or dust. IMPORTANT Maximum mounting height: below 2 meters (6.5 feet). NOTE Mount the gateway on a wall or over a DIN rail.
  • Page 12 Mounting Panasonic domestic and commercial with KNX, Serial and IP support DIN rail mounting Fit the gateway’s top-side clips in the upper edge of the DIN rail. Press the low side of the gateway gently to lock it in the DIN rail. Make sure the gateway is firmly fixed.

  • Page 13: Connection

    Panasonic domestic and commercial with KNX, Serial and IP support Connection 5.2. Connection CAUTION Disconnect all systems from power before manipulating and connecting them to the gateway. IMPORTANT Keep communication cables away from power and ground wires. 5.2.1. Gateway Connectors Figure 5.
  • Page 14 Connection Panasonic domestic and commercial with KNX, Serial and IP support Connectors' wiring: IMPORTANT For all connectors, use solid or stranded wires (twisted or with ferrule). Cross-section/gauge per terminal: • One core: 0.2 .. 2.5 mm / 24 .. 11 AWG •...

  • Page 15: Connection Procedure For The Ac Unit

    Panasonic domestic and commercial with KNX, Serial and IP support Connection IMPORTANT • When using a DC power supply: Respect the polarity labeled on the power connector for the positive and negative wires. • When using an AC power supply: Ensure the same power supply is not powering any other device.

  • Page 16: Connection Procedure For Knx

    Connection Panasonic domestic and commercial with KNX, Serial and IP support For Modbus RTU: Connect the Modbus RTU communication cable to the gateway's EIA-485 port. The connector for the EIA-485 bus is a green pluggable terminal block labeled SG (signal ground), B-, and A+. IMPORTANT Observe polarity.

  • Page 17: Connection Procedure For Bacnet

    Panasonic domestic and commercial with KNX, Serial and IP support Connection 5.2.5. Connection Procedure for BACnet For BACnet/IP: Connect the BACnet/IP Ethernet cable to the gateway's Ethernet Port. The correct cable to use depends on where the gateway is connected: •...

  • Page 18: Connection Procedure For Home Automation

    Connection Panasonic domestic and commercial with KNX, Serial and IP support IMPORTANT When installing the gateway at the end of the bus with the termination resistor enabled, do not install an additional termination resistor at that end. NOTE See the Wiring diagram (page 10).

  • Page 19: Gateway Layout

    Panasonic domestic and commercial with KNX, Serial and IP support Gateway Layout 5.3. Gateway Layout Figure 6. Disposition of hardware elements in the gateway Plastic covers numbered in the image as ①, ②, ③, and ④ can be easily disassembled. The following sections explain each element in more detail: LEDs, DIP switches, and the push button.

  • Page 20: Led Indicators

    LED Indicators Panasonic domestic and commercial with KNX, Serial and IP support 5.4. LED Indicators Table 1. LEDs location and behavior Cover Color Description Top side LED 1 (PWR) Green Power on (not programmable) LED 2 (ERR) Blinking: Hardware error Under frontal cover ①...

  • Page 21: Push Button

    Panasonic domestic and commercial with KNX, Serial and IP support Push Button 5.6. Push Button Find the push button at the top side, between the KNX and the Ethernet connectors (see the figure Disposition of hardware elements in the gateway (page 16)).

  • Page 22: Technical Specifications

    Technical Specifications Panasonic domestic and commercial with KNX, Serial and IP support 5.7. Technical Specifications Plastic, type PC (UL 94 V-0). Color: Light Grey. RAL 7035 Net dimensions (dxwxh): Millimeters: 90 x 106 x 58 mm / Inches: 3.5 x 4.2 x 2.3" Housing Recommended space for installation (dxwxh): Millimeters: 130 x 115 x 100 mm / Inches: 5.1 x 4.5 x3.9"...

  • Page 23: Dimensions

    Panasonic domestic and commercial with KNX, Serial and IP support Dimensions 5.8. Dimensions • Net dimensions (DxWxH) Millimeters: 90 x 106 x 58 mm Inches: 3.5 x 4.2 x 2.3" • Clear space for installation (DxWxH) Millimeters: 130 x 115 x 100 mm Inches: 5.1 x 4.5 x 3.9"...

  • Page 24: Available Applications

    Available Applications Panasonic domestic and commercial with KNX, Serial and IP support 6. Available Applications NOTE Signals marked as Optional signals are supported by the gateway but may not be supported by the server devices of the installation. Please refer to the technical documentation of each server device to know which signals they support.
  • Page 25 Panasonic domestic and commercial with KNX, Serial and IP support Integration into Modbus Systems Table 3. Global signals Register name Possible values Modbus address On (all the units) 1: Set the units On Off (all the units) 1: Set the units Off Operation Mode Auto (all the units) 1: Set Auto Mode Operation Mode Heat (all the units)
  • Page 26 Integration into Modbus Systems Panasonic domestic and commercial with KNX, Serial and IP support Register name Possible values Modbus address formula 0: Auto 1: Low 2: Low+ Fan Speed (IU address[1 .. 64]*100)+((L-1)*10000)+2 R, W 3: Medium 4-Medium+ 5-High 0: Stop 1: Position 1 2: Position 2 Vane Position...
  • Page 27 Panasonic domestic and commercial with KNX, Serial and IP support Integration into Modbus Systems Register name Possible values Modbus address formula 0: No error Communication Error IU (IU address[1 .. 64]*100)+((L-1)*10000)+22 1: Error 0: Allow Allow On/Off from RC (IU address[1 .. 64]*100)+((L-1)*10000)+23 R, W 1: Not allow 0: Allow...

  • Page 28: Integration Into Knx Systems

    Integration into KNX Systems Panasonic domestic and commercial with KNX, Serial and IP support 6.2. Integration into KNX Systems 6.2.1. KNX Signals The following tables list all available KNX signals for this gateway. NOTE Physical Address: The gateway supports (P/S) and (P/I/S) format levels. NOTICE Communication object flags: •...
  • Page 29 Panasonic domestic and commercial with KNX, Serial and IP support Integration into KNX Systems Table 7. Outdoor units signals Object name Possible values Flags 0: No error Status_Communication Error OU 1.005-DPT_Alarm (1bit) R, T 1: Error Control_Demand Limit. Ratio 0 .. 200 % (255: No limit) 5.004-DPT_Percent_U8 (1byte) R, T Status_Demand Limit.
  • Page 30 Integration into KNX Systems Panasonic domestic and commercial with KNX, Serial and IP support Object name Possible values Flags 0: Cool 1: Dry 2: Fan Status_Operation mode 3: Heat 5.x (1byte) R, T 4: Auto 5: AutoHeat 6: AutoCool 0: Cool, Control_Mode Cool/Heat 1.100-DPT_Heat/Cool (1bit) 1: Heat...
  • Page 31 Panasonic domestic and commercial with KNX, Serial and IP support Integration into KNX Systems Object name Possible values Flags Thersholds: 20 %; 40 % Status_Fan speed scaling 5.001-DPT_Scaling (1byte) R, T 60 % 80 % 100 % Control_Fan speed low 1: Set fan speed low 1.001-DPT_Switch (1bit) 1: Speed low active...
  • Page 32 Integration into KNX Systems Panasonic domestic and commercial with KNX, Serial and IP support Object name Possible values Flags 1: Vanes position-5 active Status_Vanes position-5 1.001-DPT_Switch (1bit) R, T 0: Vanes position-5 not active Control_Vanes position stop 1: Set stop vanes 1.001-DPT_Switch (1bit) 1: Vanes stop active Status_Vanes position stop...
  • Page 33 Panasonic domestic and commercial with KNX, Serial and IP support Integration into KNX Systems Object name Possible values Flags 0: No disabled Status_Setpoint Remote controll disablement 1.002 DPT_Bool (1bit) R, T 1: Disabled 1: Not Defined 2: TBD Status_Unit type 3: GHP 5.x (1byte) R, T...

  • Page 34: Integration Into Bacnet Systems

    Integration into BACnet Systems Panasonic domestic and commercial with KNX, Serial and IP support 6.3. Integration into BACnet Systems NOTICE You can see the Protocol Implementation Conformance Statement (PICS) document on https:// www.intesis.com/docs/bacnet-client-pic-statement-770 6.3.1. BACnet Objects NOTICE This part is common for BACnet MS/TP and BACnet/IP. Input object types: •...
  • Page 35 Panasonic domestic and commercial with KNX, Serial and IP support Integration into BACnet Systems Object name Possible values Object type Object instance 1: Stop 2: Pos1 3: Pos2 Vane Position (all units) 4: Pos3 14-Multistate Output 5: Pos4 6: Pos5 7: Swing Temperature Setpoint (all units) °C / °F...
  • Page 36 Integration into BACnet Systems Panasonic domestic and commercial with KNX, Serial and IP support Object name Possible values Object type Object instance 1: Auto 2: Low LXOXXUXX_FanSpeed_C 14-Multistate Output (U[1..64]×100)+((L-1)×20000)+1 3: Med 4: High 1: Stop 2: Pos1 3: Pos2 LXOXXUXX_Vane Position_S 4: Pos3 13-Multistate Input...
  • Page 37 Panasonic domestic and commercial with KNX, Serial and IP support Integration into BACnet Systems Object name Possible values Object type Object instance Celsius: -35 .. 92.5°C LXOXXUXX_Auto Setpoint Low Limit 0-Analog Input (U[1..64]×100)+((L-1)×20000)+13 Fahrenheit: -31 .. 198.5°F 0: No Error LXOXXUXX_Unit Error Code 0-Analog Input (U[1..64]×100)+((L-1)×20000)+14...

  • Page 38: Integration Into Home Automation Systems

    Integration into Home Automation Systems Panasonic domestic and commercial with KNX, Serial and IP support 6.4. Integration into Home Automation Systems 6.4.1. Home Automation Signals The following tables list all available Home Automation signals for this gateway. NOTE • SET: Command used to control the indoor unit. It is sent by the client. •...

  • Page 39: Late Configuration: Change The Gateway's Protocol

    Panasonic domestic and commercial with KNX, Serial and IP support Late Configuration: Change the Gateway's Protocol 7. Late Configuration: Change the Gateway's Protocol Reconfiguring the gateway with a different protocol is very easy: Connect the gateway to the PC and open the configuration tool Intesis MAPS. Select the new template you need.

  • Page 40: Error Codes

    Error Codes Panasonic domestic and commercial with KNX, Serial and IP support 8. Error Codes NOTE These error codes are the same for all applications. Error in Error Code Error Description Error category Control Panel No active error GHP - Engine oil pressure fault GHP - Engine oil level fault GHP - Engine over speed GHP - Engine under speed...
  • Page 41 Panasonic domestic and commercial with KNX, Serial and IP support Error Codes Error in Error Code Error Description Error category Control Panel Duplicate adaptor address Mix of PAC & GHP type units on adaptor Memory fault in adaptor Incorrect address setting in adaptor Host terminal software failure Host terminal hardware failure Host terminal processing failure...
  • Page 42 Error Codes Panasonic domestic and commercial with KNX, Serial and IP support Error in Error Code Error Description Error category Control Panel Indoor Heat Exch outlet temp sensor failure (E3) Outdoor Discharge temp sensor failure (TD) or (DISCH1) Outdoor Discharge temp sensor failure (DISCH2) Outdoor Heat Exch temp sensor failure (C1) or (EXG1) Outdoor Heat Exch temp sensor failure (C2) or (EXL1) Outdoor Air temp sensor failure (TO)
  • Page 43 Panasonic domestic and commercial with KNX, Serial and IP support Error Codes Error in Error Code Error Description Error category Control Panel Group control wiring incorrect Indoor unit type setting error, capacity Indoor unit paring fault Water heat exch unit setting failure Miss-match of outdoor unit with different refrigerant 4-way valve failure Water heat exch unit duplicated address...
  • Page 44 Error Codes Panasonic domestic and commercial with KNX, Serial and IP support IMPORTANT These error codes may differ depending on the specific AC unit model. NOTE If you detect a non-listed error code, please contact Panasonic technical support. USER MANUAL Version 1.0.7 Page 41 of 41...
