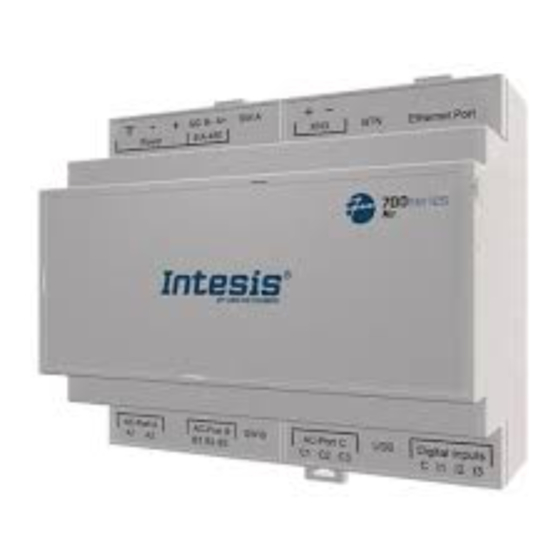

HMS Networks Intesis IN770AIR00 O000 Series User Manual
Samsung nasa with knx, serial and ip support
Hide thumbs
Also See for Intesis IN770AIR00 O000 Series:
- User manual (45 pages) ,
- Manual (44 pages) ,
- User manual (40 pages)
Related Manuals for HMS Networks Intesis IN770AIR00 O000 Series
Summary of Contents for HMS Networks Intesis IN770AIR00 O000 Series
- Page 1 ENGLISH Samsung NASA with KNX, Serial and IP support IN770AIR00XO000 GATEWAY USER MANUAL Version 1.0.6 Publication date 2023-11-17...
- Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
-
Page 3: Table Of Contents
Samsung NASA with KNX, Serial and IP support Table of Contents 1. Description and Order Codes ..................... 1 2. Licensing ..........................2 3. General Information ........................ 3 3.1. Intended Use of the User Manual ..................3 3.2. General Safety Information ....................3 3.3. -
Page 4: Description And Order Codes
Description and Order Codes Samsung NASA with KNX, Serial and IP support 1. Description and Order Codes IN770AIR00xO000 Gateway. Modbus®, KNX®, BACnet®, and Home Automation® gateway for Samsung® air conditioning systems. ORDER CODE LEGACY ORDER CODE INBACSAM004O000 INBACSAM008O000 INBACSAM016O000 INBACSAM064O000 INKNXSAM004O000 INKNXSAM008O000 IN770AIR00xO000 INKNXSAM016O000 INKNXSAM064O000... -
Page 5: Licensing
Samsung NASA with KNX, Serial and IP support Licensing 2. Licensing Distribution license(s) for the IN770AIR00xO000 gateway: Maximum AC units Order Code License Indoor units Outdoor units IN770AIR00SO000 Small IN770AIR00MO000 Medium NOTE The order code may vary depending on the product seller and the buyer's location. Page 2 of 44 USER MANUAL Version 1.0.6... -
Page 6: General Information
General Information Samsung NASA with KNX, Serial and IP support 3. General Information 3.1. Intended Use of the User Manual This manual contains the main features of this Intesis gateway and the instructions for its appropriate installation, configuration, and operation. The contents of this manual should be brought to the attention of any person who installs, configures, or operates this gateway or any associated equipment. - Page 7 Samsung NASA with KNX, Serial and IP support Admonition Messages and Symbols IMPORTANT Instruction that must be followed to avoid a risk of reduced functionality and/or damage to the equipment or to avoid a network security risk. NOTE Additional information which may facilitate installation and/or operation. Helpful advice and suggestions.
-
Page 8: Overview
Overview Samsung NASA with KNX, Serial and IP support 4. Overview This IN770AIR00xO000 gateway supports four applications. Gateway's client interface ↔ Gateway's server interface Modbus TCP and RTU KNX TP Samsung NASA HVAC systems BACnet/IP or MS/TP Home Automation IMPORTANT This document assumes that the user is familiar with these technologies. -
Page 9: Inside The Package
Samsung NASA with KNX, Serial and IP support Inside the Package Figure 3. Integration of Samsung AC systems into BACnet installations Figure 4. Integration of Samsung AC systems into Home Automation installations 4.1. Inside the Package Items included: • Intesis IN770AIR00xO000 Gateway •... -
Page 10: Gateway General Functionality
Gateway General Functionality Samsung NASA with KNX, Serial and IP support • Specific signals to monitor outdoor units. • 2 x DIP switches for the EIA-485 connector termination and polarization configuration. • 14 LEDs indicate the operating status for both the gateway and the communication bus. •... -
Page 11: Hardware
Samsung NASA with KNX, Serial and IP support Hardware 5. Hardware 5.1. Mounting IMPORTANT Before mounting, please ensure that the chosen installation place preserves the gateway from direct solar radiation, water, high relative humidity, or dust. IMPORTANT Maximum mounting height: below 2 meters (6.5 feet). NOTE Mount the gateway on a wall or over a DIN rail. - Page 12 Mounting Samsung NASA with KNX, Serial and IP support DIN rail mounting Fit the gateway’s top-side clips in the upper edge of the DIN rail. Press the low side of the gateway gently to lock it in the DIN rail. Make sure the gateway is firmly fixed.
-
Page 13: Connection
Samsung NASA with KNX, Serial and IP support Connection 5.2. Connection CAUTION Disconnect all systems from power before manipulating and connecting them to the gateway. IMPORTANT Keep communication cables away from power and ground wires. 5.2.1. Gateway Connectors Figure 5. Wiring diagram Page 10 of 44 USER MANUAL Version 1.0.6... - Page 14 Connection Samsung NASA with KNX, Serial and IP support Connectors' wiring: IMPORTANT For all connectors, use solid or stranded wires (twisted or with ferrule). Cross-section/gauge per terminal: • One core: 0.2 .. 2.5 mm / 24 .. 11 AWG • Two cores: 0.2 .. 1.5 mm / 24 ..
-
Page 15: Connection Procedure For The Ac Unit
Samsung NASA with KNX, Serial and IP support Connection IMPORTANT • When using a DC power supply: Respect the polarity labeled on the power connector for the positive and negative wires. • When using an AC power supply: Ensure the same power supply is not powering any other device. - Page 16 Connection Samsung NASA with KNX, Serial and IP support NOTE Some devices detect the difference automatically and adjust themselves. NOTE When commissioning the gateway for the first time, DHCP will be enabled for 30 seconds. During that time, if there is a DHCP server, an IP address will be automatically assigned to the gateway. If there is no DHCP, you can type an IP address of your choice.
-
Page 17: Connection Procedure For Knx
Samsung NASA with KNX, Serial and IP support Connection 5.2.4. Connection Procedure for KNX Connect the KNX TP communication cable to the gateway's KNX port. IMPORTANT Observe polarity. NOTE See the Wiring diagram (page 10). 5.2.5. Connection Procedure for BACnet For BACnet/IP: Connect the BACnet/IP Ethernet cable to the gateway's Ethernet Port. -
Page 18: Connection Procedure For Home Automation
Connection Samsung NASA with KNX, Serial and IP support IMPORTANT Remember the characteristics of the standard EIA-485 bus: • Maximum distance of 1200 meters (0.75 miles). • Maximum of 32 devices connected to the bus. • A termination resistor of 120 ohms (Ω) is needed at each end of the bus. The gateway has an internal bus biasing circuit already incorporating the termination resistor. -
Page 19: Connection To A Pc For Configuration
Samsung NASA with KNX, Serial and IP support Connection 5.2.7. Connection to a PC for Configuration Use the supplied USB Mini-B type to USB Type-A cable to connect the gateway through its Console port to a PC to configure it with Intesis MAPS. NOTE You can use the Ethernet Port to connect the gateway and the PC instead. -
Page 20: Gateway Layout
Gateway Layout Samsung NASA with KNX, Serial and IP support 5.3. Gateway Layout Figure 6. Disposition of hardware elements in the gateway Plastic covers numbered in the image as ①, ②, ③, and ④ can be easily disassembled. The following sections explain each element in more detail: LEDs, DIP switches, and the push button. USER MANUAL Version 1.0.6 Page 17 of 44... -
Page 21: Led Indicators
Samsung NASA with KNX, Serial and IP support LED Indicators 5.4. LED Indicators Table 1. LEDs location and behavior Cover Color Description Top side LED 1 (PWR) Green Power on (not programmable) LED 2 (ERR) Blinking: Hardware error Under frontal cover ① LED 3 Green 485 Tx (RS485 for BACnet or Modbus) -
Page 22: Push Button
Push Button Samsung NASA with KNX, Serial and IP support 5.6. Push Button Find the push button at the top side, between the KNX and the Ethernet connectors (see the figure Disposition of hardware elements in the gateway (page 17)). NOTE The button is hidden and only accessible using a thin object like a paper clip. -
Page 23: Technical Specifications
Samsung NASA with KNX, Serial and IP support Technical Specifications 5.7. Technical Specifications Plastic, type PC (UL 94 V-0). Color: Light Grey. RAL 7035 Net dimensions (dxwxh): Millimeters: 90 x 106 x 58 mm / Inches: 3.5 x 4.2 x 2.3" Housing Recommended space for installation (dxwxh): Millimeters: 130 x 115 x 100 mm / Inches: 5.1 x 4.5 x3.9"... -
Page 24: Dimensions
Dimensions Samsung NASA with KNX, Serial and IP support 5.8. Dimensions • Net dimensions (DxWxH) Millimeters: 90 x 106 x 58 mm Inches: 3.5 x 4.2 x 2.3" • Clear space for installation (DxWxH) Millimeters: 130 x 115 x 100 mm Inches: 5.1 x 4.5 x 3.9"... -
Page 25: Available Applications
Samsung NASA with KNX, Serial and IP support Available Applications 6. Available Applications NOTE Signals marked as Optional signals are supported by the gateway but may not be supported by the server devices of the installation. Please refer to the technical documentation of each server device to know which signals they support. - Page 26 Integration into Modbus Systems Samsung NASA with KNX, Serial and IP support Register name Possible values Modbus address Vane Position Swing On (all the units) 1: Set Swing On Vane Position Swing Off (all the units) 1: Set Swing Off Cool: 18 ..
- Page 27 Samsung NASA with KNX, Serial and IP support Integration into Modbus Systems Register name Possible values Modbus address formula Celsius: 8 .. 25°C Discharge Setpoint Temp.. Cool AHU (x10°C) (IU address[1 .. 64]*100)+7 R, W Fahrenheit: 46 .. 77°F Celsius: 30 .. 43°C Discharge Setpoint Temp.
- Page 28 Integration into Modbus Systems Samsung NASA with KNX, Serial and IP support Register name Possible values Modbus address formula Cool: 5 .. 25°C / 41 .. 77°F Water Out Setpoint Temp. HE (x10°C) (IU address[1 .. 64]*100)+30 R, W Heat: 15 .. 50°C / 59 .. 122°F Celsius: 25 ..
-
Page 29: Integration Into Knx Systems
Samsung NASA with KNX, Serial and IP support Integration into KNX Systems 6.2. Integration into KNX Systems 6.2.1. KNX Signals The following tables list all available KNX signals for this gateway. NOTE Physical Address: The gateway supports (P/S) and (P/I/S) format levels. NOTICE Communication object flags: •... - Page 30 Integration into KNX Systems Samsung NASA with KNX, Serial and IP support Object name Possible values Flags 0: Cool 1: Heat 2: Dry Operating Mode (all units) 3: Fan 5.x (1byte) 4: Auto 5: Cool Storage 6: Heat Storage 1: Low Fan Speed (all units) 2: Mid 5.x (1byte)
- Page 31 Samsung NASA with KNX, Serial and IP support Integration into KNX Systems Object name Possible values Flags 0: Auto 1: Heat 2: Dry Status_OXXUXX_Operation mode 3: Fan 5.x (1byte) R, T 4: Cool 5: Cool Storage 6: Heat Storage 0: Cool 1: Heat 2: Dry Control_OXXUXX_Operation mode...
- Page 32 Integration into KNX Systems Samsung NASA with KNX, Serial and IP support Object name Possible values Flags 1: Low Control_OXXUXX_Fan speed enumerated 2: Mid 5.010 (DPT_Value_1_Ucount) 3: High 1: Low Status_OXXUXX_Fan speed enumerated 2: Mid 5.010 (DPT_Value_1_Ucount) R, T 3: High Thersholds: 0 ..
- Page 33 Samsung NASA with KNX, Serial and IP support Integration into KNX Systems Object name Possible values Flags Celius: 30 .. 43°C Control_OXXUXX_Disch.Setpoint Heat IU 9.001-DPT_Value_Temp (2byte) Fahrenheit: 86 .. 109°F Celius: 30 .. 43°C Status_OXXUXX_Disch.Setpoint Heat IU 9.001-DPT_Value_Temp (2byte) R, T Fahrenheit: 86 ..
- Page 34 Integration into KNX Systems Samsung NASA with KNX, Serial and IP support Object name Possible values Flags 0: Eco 1: Standby Status_OXXUXX_HotWater Mode EHS 5.x (1byte) R, T 2: Power 3: Force Control_OXXUXX_HotWater Eco Mode 1: Set eco mode 1.001-DPT_Switch (1bit) 1: Eco mode active Status_OXXUXX_HotWater Eco Mode 1.001-DPT_Switch (1bit)
- Page 35 Samsung NASA with KNX, Serial and IP support Integration into KNX Systems Object name Possible values Flags 0: Off Control_OXXUXX_Vent. On/Off 1.001-DPT_Switch (1bit) 1: On 0: Off Status_OXXUXX_Vent. On/Off 1.001-DPT_Switch (1bit) R, T 1: On 1: Bypass, 2: HeatEx Control_OXXUXX_Vent. Operation mode 5.x (1byte) 3: Sleep 4: Auto...
- Page 36 Integration into KNX Systems Samsung NASA with KNX, Serial and IP support Object name Possible values Flags 0: Off Status_OXXUXX_WindFree 1.001-DPT_Switch (1bit) R, T 1: On 0: Off Control_OXXUXX_Air clean 1.001-DPT_Switch (1bit) 1: On 0: Off, Status_OXXUXX_Air clean 1.001-DPT_Switch (1bit) R, T 1: On 0: Spot...
-
Page 37: Integration Into Bacnet Systems
Samsung NASA with KNX, Serial and IP support Integration into BACnet Systems 6.3. Integration into BACnet Systems NOTICE You can see the Protocol Implementation Conformance Statement (PICS) document on https:// www.intesis.com/docs/bacnet-client-pic-statement-770 6.3.1. BACnet Objects NOTICE This part is common for BACnet MS/TP and BACnet/IP. Input object types: •... - Page 38 Integration into BACnet Systems Samsung NASA with KNX, Serial and IP support Object name Possible values Object type Object instance Hot Water On/Off (all units) 0: Off 4-Binary Output 1: On Table 10. Individual units signals Object name Possible values Object type Object instance OXXUXX_On/Off_S...
- Page 39 Samsung NASA with KNX, Serial and IP support Integration into BACnet Systems Object name Possible values Object type Object instance OXXUXX_Vane position swing_S 0: Swing Off 3-Binary Input (U[1..64]×100 )+1 1: Swing On OXXUXX_Vane position swing_C 0: Swing Off 4-Binary Output (U[1..64]×100 )+1 1: Swing On OXXUXX_Room_Temperature (en EHS,...
- Page 40 Integration into BACnet Systems Samsung NASA with KNX, Serial and IP support Object name Possible values Object type Object instance OXXUXX_HotWater On/Off_S 0: Off 3-Binary Input (U[1..64]×100 )+4 1: On OXXUXX_HotWater On/Off_C 0: Off 4-Binary Output (U[1..64]×100 )+5 1: On OXXUXX_HotWater Mode HE/HT_S 1: Eco 13-Multistate Input...
- Page 41 Samsung NASA with KNX, Serial and IP support Integration into BACnet Systems Object name Possible values Object type Object instance OXXUXX_WaterOut Average Temp. °C / °F 0-Analog Input (U[1..64]×100 )+13 OXXUXX_Vent. On/Off_S 0: Off 3-Binary Input (U[1..64]×100 )+5 1: On OXXUXX_Vent.
-
Page 42: Integration Into Home Automation Systems
Integration into Home Automation Systems Samsung NASA with KNX, Serial and IP support 6.4. Integration into Home Automation Systems 6.4.1. Home Automation Signals The following tables list all available Home Automation signals for this gateway. NOTE • SET: Command used to control the indoor unit. It is sent by the client. •... -
Page 43: Late Configuration: Change The Gateway's Protocol
Samsung NASA with KNX, Serial and IP support Late Configuration: Change the Gateway's Protocol 7. Late Configuration: Change the Gateway's Protocol Reconfiguring the gateway with a different protocol is very easy: Connect the gateway to the PC and open the configuration tool Intesis MAPS. Select the new template you need. -
Page 44: Error Codes
Error Codes Samsung NASA with KNX, Serial and IP support 8. Error Codes NOTE These error codes are the same for all applications. ERROR CODE DESCRIPTION Indoor unit communication error. Indoor unit can not receive any data from outdoor unit Communication error between indoor unit and outdoor unit. - Page 45 Samsung NASA with KNX, Serial and IP support Error Codes ERROR CODE DESCRIPTION Error on temperature sensor located on MCU intercooler inlet (Short or Open) Error on temperature sensor located on MCU intercooler outlet (Short or Open) Error on outdoor temperature sensor of outdoor unit (Short or open) Error on COND OUT temperature sensor of main outdoor unit (Short or Open) COND OUT sensor is detached Error on discharge temperature sensor of compressor 1 (Short or Open)
- Page 46 Error Codes Samsung NASA with KNX, Serial and IP support ERROR CODE DESCRIPTION Error due to refrigerant leakage Heating mode restriction due to high air temperature Cooling mode restriction due to low air temperature Refrigerant charing restriction in heating mode when air temperature is over 15°C Operation prohibited due to the pressure drop CCH is deatched Error due to operation failure of Fan1...
- Page 47 Samsung NASA with KNX, Serial and IP support Error Codes ERROR CODE DESCRIPTION Error on water tank (Short or open) Error due to pipe rupture protection Error due to freeze prevention (Re-operation is possible) Error due to freeze prevention (Re-operation is impossible) Water temperature sensor on water outlet pipe is detached Flow switch off error, When the switch is turned off within 10 seconds after a pump starts its operation (Re-operation is possible) Six times detection for Flow Switch Error (Re-operation is not possible)
