5. Hardware
5.1. Mounting
IMPORTANT
Before mounting, please ensure that the chosen installation place preserves the gateway from direct
solar radiation, water, high relative humidity, or dust.
IMPORTANT
Ensure the gateway has sufficient clearances for all connections when mounted. See Dimensions.
NOTE
Mount the gateway over a DIN rail, preferably inside a grounded metallic industrial cabinet.

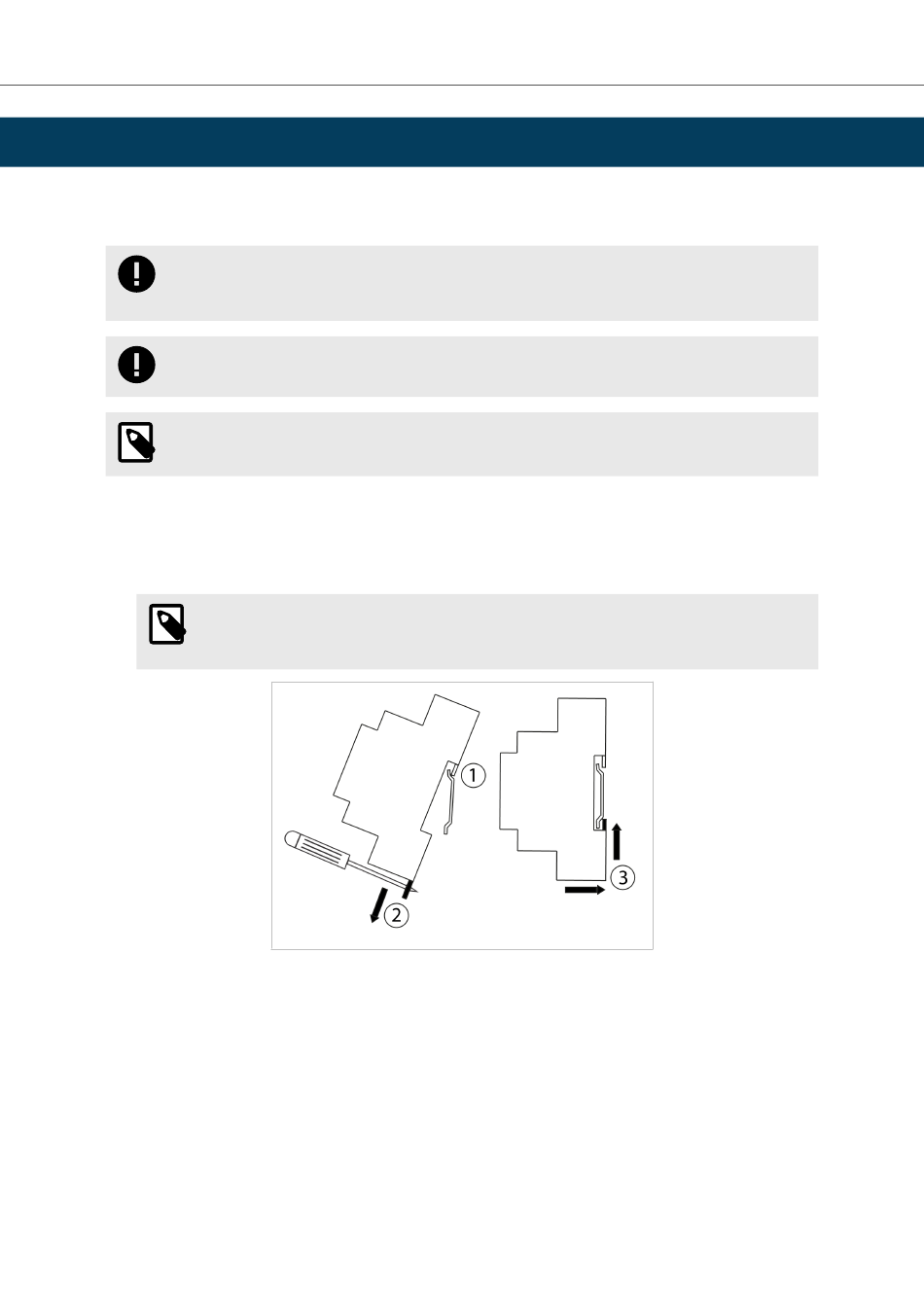

DIN rail mounting
1.
Fit the gateway's top-side clips in the upper edge of the DIN rail.
2.
Press the low side of the gateway gently to lock it in the DIN rail.
3.
Make sure the gateway is firmly fixed.
NOTE
For some DIN rails, to complete step 2, you may need a small screwdriver or similar to pull the
bottom clip down.
USER MANUAL Version 1.0.2
Intesis DALI-2 Protocol Translator with Serial and IP Support - 1 DALI
Channel
Page 9 of 40
