OPERATION
CLINICAL RESOURCES LIBRARY CLINICAL PROTOCOLS™ (continued)

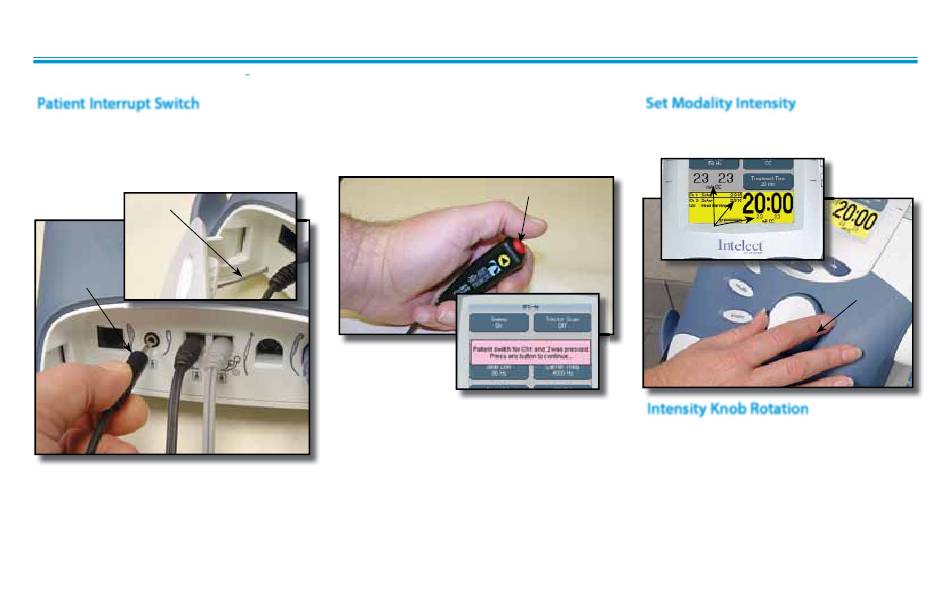

Patient Interrupt Switch

Make certain the Patient Interrupt Switch,
for the channel(s) being used, is connected
to the Therapy System. Refer to
Symbol Definitions.
LANYARD
PATIENT
INTERRUPT
SWITCH
NOTE:
When reinstalling the Front Access Panel,
make certain the Lanyard does not become
kinked.
Give Patient Interrupt Switch to patient
and explain that pressing the Red button
page 13
for
once pauses the therapy session.
PRESSING BUTTON ONCE PAUSES SESSION
If Patient Interrupt Switch is depressed, the
treatment will be paused and a message
will appear on the System screen.
Press any button to clear the message.
NOTE:
If the Patient Interrupt Switch is depressed
a second time, the message will clear from
the screen and the treatment will remain
paused.

Set Modality Intensity

Set intensity by rotating the Intensity Control
Knob to the prescribed level.

Intensity Knob Rotation

Clockwise- Increases Intensity
Counterclockwise- Decreases Intensity
76
Intelect® Advanced Therapy System
INTENSITY
DISPLAYED
ROTATE
INTENSITY
KNOB
