OPERATION
QUICK LINK INDICATIONS (continued)

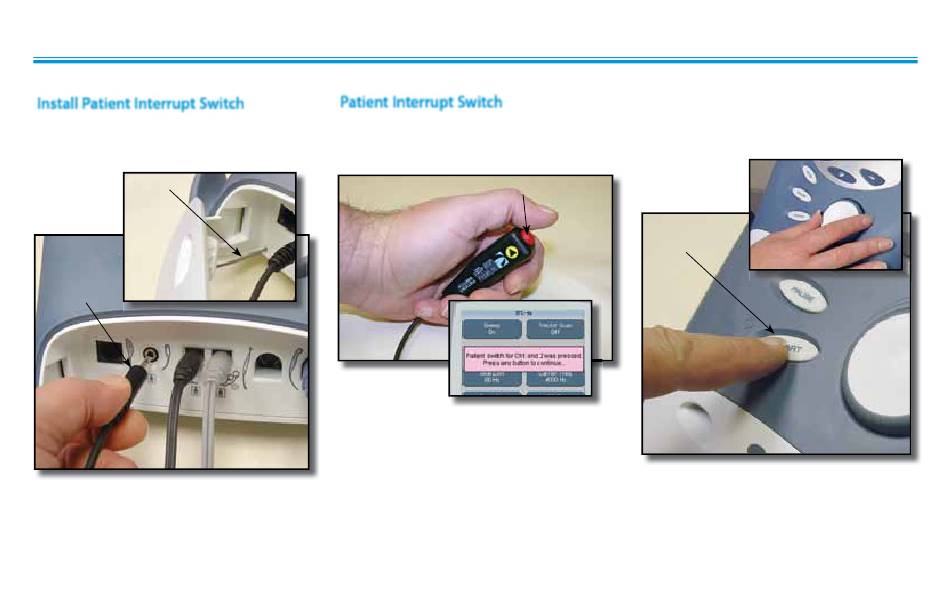

Install Patient Interrupt Switch

Make certain the Patient Interrupt Switch is
connected to the unit. Refer to
Symbol Definitions.
LANYARD
PATIENT
INTERRUPT
SWITCH
NOTE:
When reinstalling the Front Access Panel,
make certain the Lanyard does not become
kinked.

Patient Interrupt Switch

Give Patient Interrupt Switch to patient
page 13
for
and explain that pressing the Red button
once pauses the therapy session.
PRESSING BUTTON ONCE PAUSES SESSION
If Patient Interrupt Switch is depressed, the
treatment will be paused and a message
will appear on the System screen.
Press any button to clear the message.
NOTE:
If the Patient Interrupt Switch is depressed
a second time, the message will clear from
the screen and the treatment will remain
paused.
Reset intensity and press the Start button
to resume session.
54
Intelect® Advanced Therapy System
START
BUTTON
