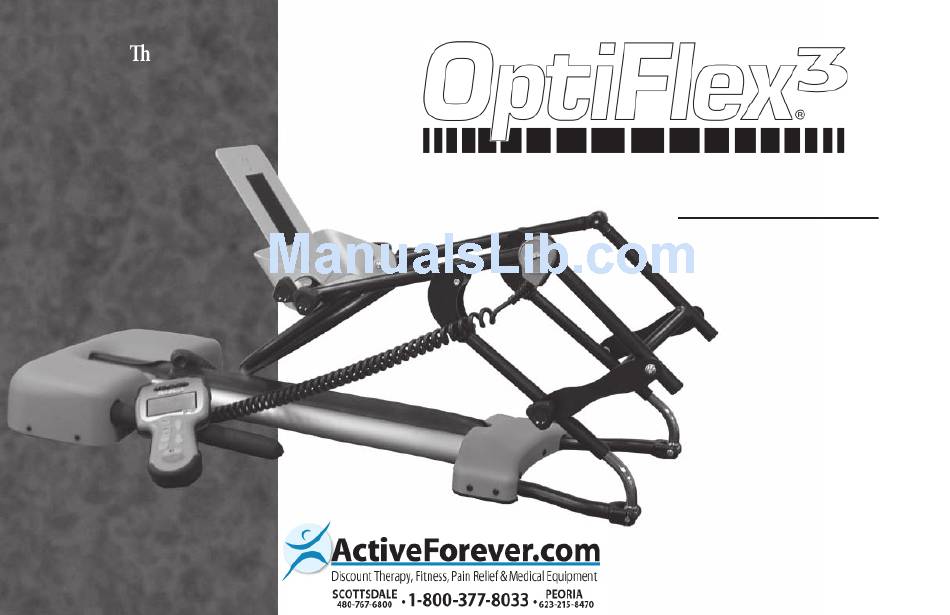

User Manual
Model 2090
OptiFlex 3 Continuous Passive Motion Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2090 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chattanooga 2090

  • Page 1 Leading erapy in a New Direction! User Manual Model 2090 OptiFlex 3 Continuous Passive Motion Unit...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit FOREWORD ......... 1 Product Description .
  • Page 4: Foreword

    By repeatedly exing and extending the a ected joint through a prescribed arc of motion for an extended period of time, the OptiFlex 3 CPM Unit lessens the adverse e ects of immobilization and trauma on the knee joint. www.ActiveForever.com...
  • Page 5: About Optiflex Cpm Unit

    ABOUT OPTIFLEX 3 CPM UNIT OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit PRECAUTIONARY INSTRUCTIONS NOTE: Throughout this manual “NOTE” may be found. These Notes are helpful The precautionary instructions found in this section and throughout information to aid in the particular area or function being described. this manual are indicated by specific symbols.
  • Page 6 ABOUT OPTIFLEX 3 CPM UNIT OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit • Read, understand and practice the precautionary and operating instructions found in this manual before operating or using the unit. Know the limitations and hazards associated with using the OptiFlex 3 Continuous Passive Motion (CPM) Therapy Unit.
  • Page 7 OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit ABOUT OPTIFLEX 3 CPM UNIT • U.S. Federal law restricts this device to sale by, or on the order of, a • Exercise caution when using accessories and auxiliary devices such physician or licensed practitioner. as muscle stimulators, cold packs and other modalities.
  • Page 8: Nomenclature

    NOMENCLATURE OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit UNIT FAMILIARIZATION Footplate Mounting Bracket Footplate Angle Adjustment Knob Footplate and Pendant Storage Knee Hinge Calf Length Adjustment Knee Potentiometer Knob (One on Each Side) and Hinge Calf Support Assembly Femur Hinge Assembly Footplate Angle (One on...
  • Page 9: Pendant Familiarization

    NOMENCLATURE OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit PENDANT FAMILIARIZATION Oscillation Zone™ Carriage will oscillate three times between the flexion angle and 10° less than the flexion angle. Fast Back™ Carriage will slow down within 15° of the flexion angle. Progressive ROM™...
  • Page 10: Pendant Functions And Use

    NOMENCLATURE OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit PENDANT FUNCTIONS AND USE How to use: To view the extension/flexion delay time, All user input and feedback is provided through the pendant. The press and hold the Extension/Flexion Delay button. following are descriptions of each button provided with OptiFlex ®...
  • Page 11 NOMENCLATURE OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit PENDANT FUNCTIONS AND USE Start/Stop (Emergency Stop): Starts or stops the CHART 1 COMFORT ZONE treatment. How to Use: Press the Start/Stop (Emergency Stop) button to begin or end the treatment. NOTE: When unit is stopped and the Start/Stop (Emergency Stop) button is pressed, the unit will immediately begin moving in the opposite direction of the...
  • Page 12 NOMENCLATURE OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit PENDANT FUNCTIONS AND USE Mode: Used together with Fast Back ™ , Oscillation CHART 2 FAST BACK Zone ™ and Progressive ROM button to enable and Non-Working ROM Working ROM disable the appropriate mode. All three modes or any (10°) combination may be used at once.
  • Page 13 NOMENCLATURE OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit PENDANT FUNCTIONS AND USE Oscillation Zone ™ : When the carriage reaches the Progressive ROM ™ : When Progressive ROM is Programmed Flexion Angle, it will oscillate between the activated, the unit will automatically increase the Programmed Flexion Angle and 10°...
  • Page 14: Nomenclature

    NOMENCLATURE OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit PENDANT FUNCTIONS AND USE Independent Delay Time Force Reversal You can set independent Delay times for extension and flexion. If an Force Reversal is a programmed setting that will automatically reverse extension and or flexion delay time is required, simply hold down the the direction of the leg orthosis if the device detects a greater amount Delay button and the Extension or Flexion button and use the Up or...
  • Page 15: Specifications

    SPECIFICATIONS OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit TECHNICAL SPECIFICATIONS ADDITIONAL DEFINITIONS: MODEL 2090 Input: 100 - 240 VAC~50/60 Hz, 75 VA ROM- “Range Of Motion”. Weight: 27 lbs (12 kg) Length: 37 in (94 cm) Electrical Class: Class I, Type B...
  • Page 16: Setup

    SETUP OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit UNIT PLACEMENT AND SOFTGOODS INSTALLATION 1. Place the unit on a level surface. • Place the unit on a level surface. Use of the unit on unstable surfaces do not give the stability the unit requires. If the unit becomes unstable, serious injury to the patient may occur.
  • Page 17: New Patient Setup

    SETUP OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit NEW PATIENT SETUP Reset Pendant Adjust OptiFlex Femur Component Depress the Reset on the Pendant Loosen the Thigh Adjustment Scale Knobs (i.e. paper clip, pen, etc.). With Reset on each side of the unit. Raise or lower the depressed, press the Mode Button.
  • Page 18 SETUP OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit NEW PATIENT SETUP Comfort Zone ™ Securing Patient If the patient experiences discomfort, the After patient is positioned and all Comfort Zone button may be pressed adjustments are made, secure the patient and the carriage will immediately reverse to the OptiFlex 3 using the strap included direction and move toward the extension...
  • Page 19: Pediatric Footplate Setup

    SETUP OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit PEDIATRIC FOOTPLATE SETUP Pediatric Footplate Loosen the footplate adjustment knobs and rotate footplate support as shown. Tighten Remove footplate from unit. Lay aside for the footplate adjustment knobs. re-installation. Re-install footplate. Loosen the tibial adjustment knobs and ACCESSORIES pull out the footplate assembly.
  • Page 20: Troubleshooting

    TROUBLESHOOTING OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit The OptiFlex 3 CPM Therapy Unit is designed with patient safety in mind. An error can be caused by both external and internal disturbances. Before calling for service, carefully review this operator’s guide. In the event you are still unable to correct the problem, contact your Chattanooga Group dealer for all repair service.
  • Page 21: Maintenance

    MAINTENANCE OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit CLEANING After each use, clean the unit using a soft cloth dampened with water and a mild antibacterial detergent. SERVICE Should the OptiFlex 3 CPM unit require service, contact the selling dealer or Chattanooga Group Service Department. All returned units to the factory for service must include the following: WARRANTY REPAIR/OUT OF WARRANTY REPAIR 1.
  • Page 22: Warranty

    OptiFlex® 3 Continuous Passive Motion (CPM) Therapy Unit Chattanooga Group (“Company”) warrants that the OptiFlex 3 Model 2090 Continuous Passive Motion (CPM) therapy unit (“Product”) is free of defects in material and workmanship. This warranty shall remain in effect for two years (24 months) from the date of original consumer purchase. If this Product fails to function during the two year warranty period due to a defect in material or workmanship, Company or the selling dealer will repair or replace this Product without charge within a period of thirty (30) days from the date on which the Product is returned to the Company or the dealer.
